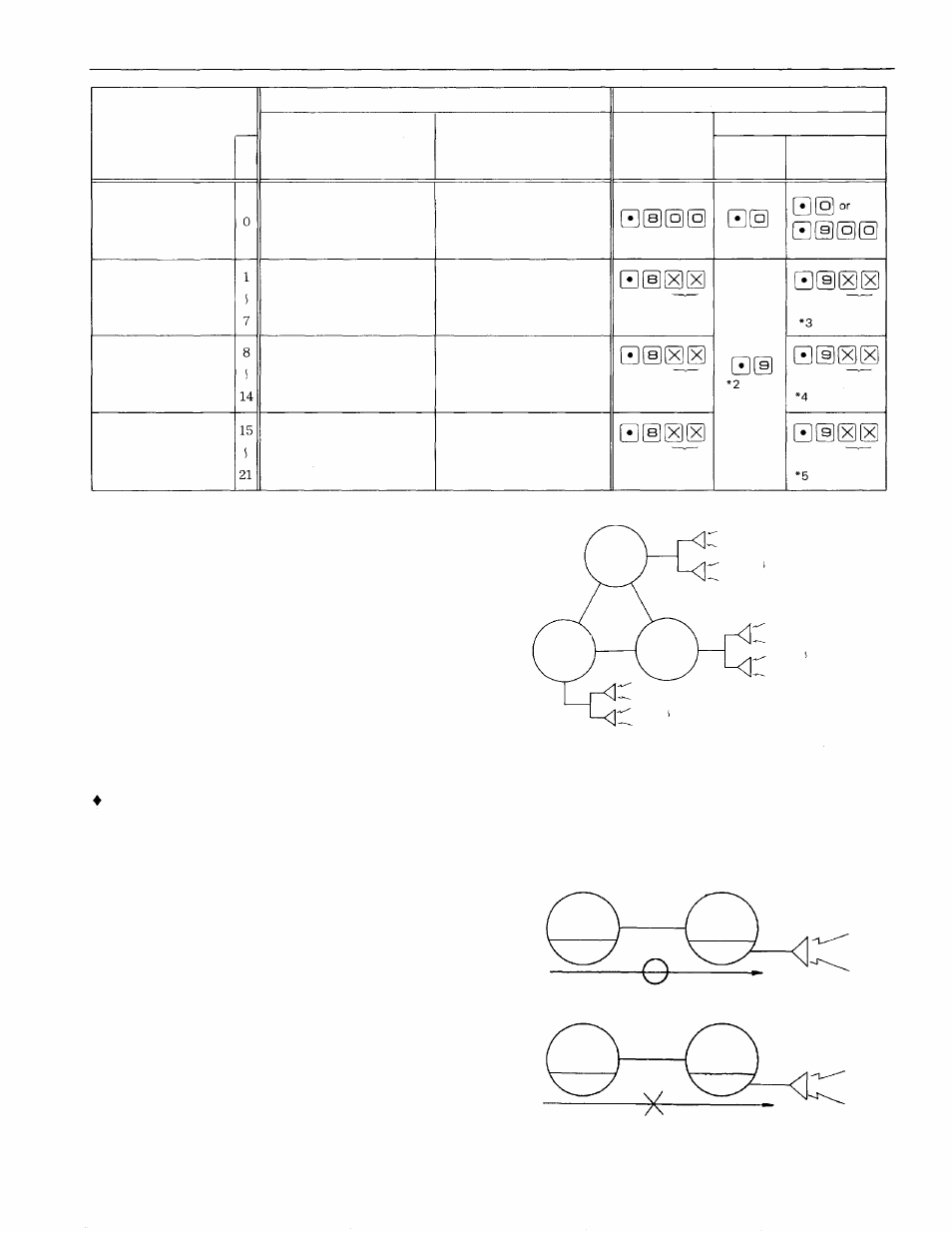

How to select the paging area and make the paging call
Note.
*1 When 2 or 3 exchanges are connected by tie-line
but 1 or 2 of them have no built-in Paging unit ( P I ) ,
All-call paging is done only over the remaining
exchange(s).
*2 A paging response is possible only from the station in
the paged zone.
*3 A paging response is possible only from the station
connected to the exchange "A" (station No 200 ~
311)
*4 A paging response is possible only from the station
connected to the exchange "B" (station No 470~
517)
*5 A paging response is possible only from the station
connected to the exchange "C" (station No.740~
851)
Total number of stations for exchange without Paging
Interface Unit (PI unit)
< The case where the tie-line system consisting of 2 or 3
exchanges has an exchange without the PI unit >
1. The case where it is necessary to make the paging call
from the exchange without the PI unit to the other
exchange(s).
You may not substitute the LM unit (LM 8 or LM16)
for the PI unit.
EX-610: Max. 48 stations, EX-620: Max. 112 stations
2. The case where the paging call is unnecessary from the
exchange without the PI unit to the other exchange(s).
You may substitute the LM unit (LM8 or LM16) for
the PI unit.
EX-610: Max. 56 stations, EX-620: Max. 120 stations
Paging
Paging area
No.
External PA paging
Available
Available
Available
Available
Station paging
Available
Available
Available
Available
Dialing operation
Paging call
Response
Automatic
response
Zone number
dialing
All-call paging over the
entire zones of exchanges
"A". "B" and "C"
*1
Zone paging to the zone
of exchange "A"
Zone paging to the zone
of exchange "B"
Zone paging to the zone
of exchange "C"
Zone No.
(01~07)
Zone No.
(01~07)
Zone No.
(08~14)
Zone No.
(15~21)
Zone No.
(15-21)
Zone No.
(08~14)
Paging zone
Paging zone
No.01
No.07
No.08
No.14
Paging zone
No.15
No.21
Exchange
"A"
No.200~311
Exchange
"C"
No.740 ~ 851
Exchange "B"
Paging call is possible
Exchange "A" Exchange "B"
Blank PI
Paging call is impossible
PI LM
Exchange
"B"
No.470~581
Exchange "A"
