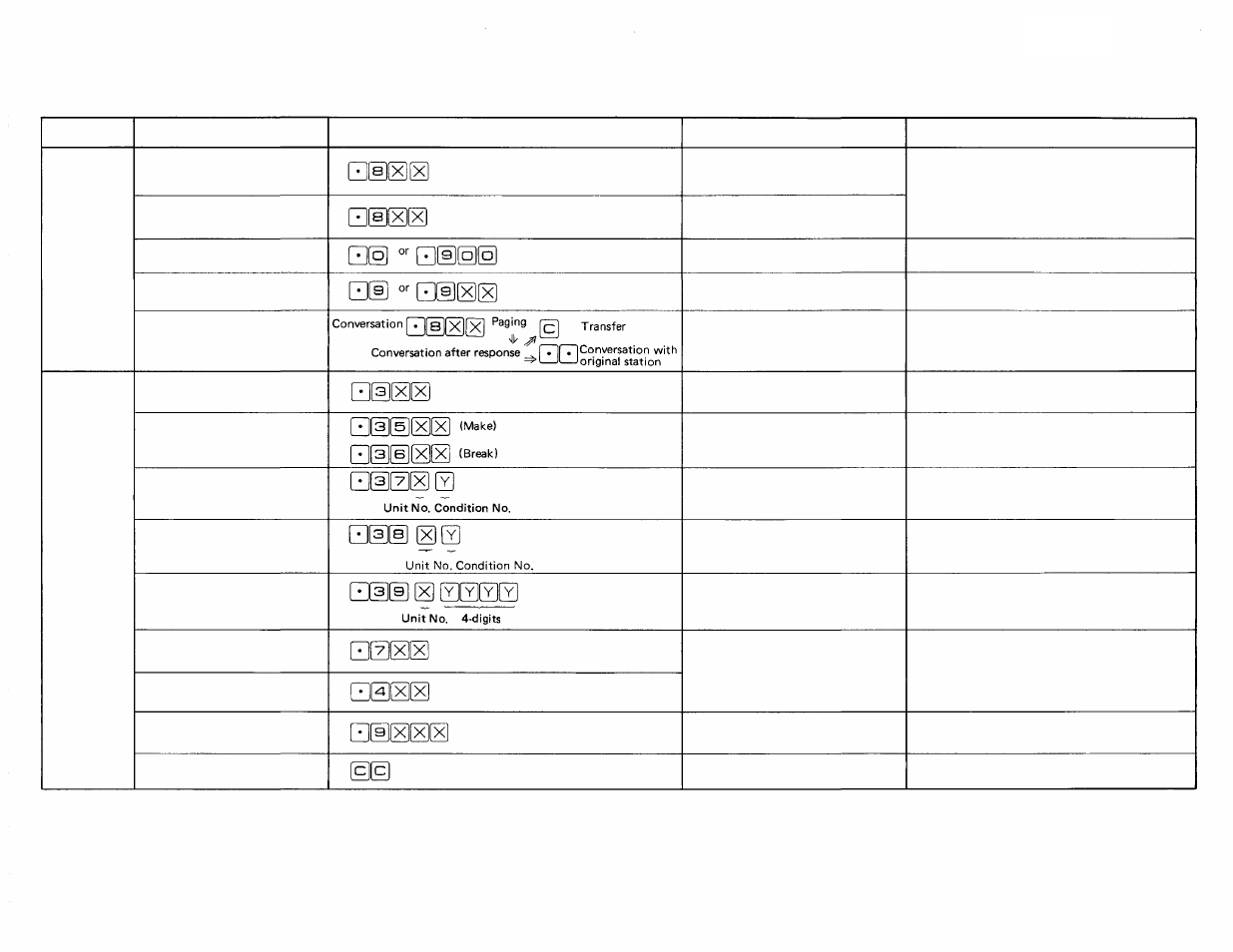

TOA Electronics EXES 6000 CP-63 - Manual (Page 13)

Classification
Paging
Display
and
Control
Data
Transmitting
and
Receiving
Unit
Function
All-call plus 14-zone paging
All-call plus 21-zone paging
All-call response
Zone paging response
Paging during
normal call
One-shot make output
Make/break output
8-selectable make output
Decimal output
4 decimal digits output
Make output for Pager control
Pocket Pager response
Calling party selection
Clearing calling party indication
Dial operation Number
X X : 00 (All-call), 0 1~ 14 (Zone)
X X : 00 (All-call), 01 ~ 21 (Zone)
X X : 01 ~ 21
X X : 01 ~ 07 (Exchange A)
08 ~ 14 (Exchange B)
15 ~ 21 (Exchange C)
X X : 00 ~ 49
X X : 00 ~ 99
X : 1 ~ 9 Y: 1 ~ 8,0 (Clear)
X : 1 ~ 9 Y :0 ~ 9
X : 1 ~ 9
Y Y Y Y : 0000 - 9999
X X : 00 ~ 63
X X X : Station No.
Description
Any station can be used to initiate PA or station
paging. A person paged can respond from the
nearest master station.
Response to all-call
Response to zone paging
This function allows a called party to transfer
the call to a third party who responds to paging.
One-shot make output of relay may control
other equipments such as I TV camera, VTR
control, dictating systems, etc.
Make/break output of relay may control other
equipments.
8 selectable output is available
(indicating room status and destination).
A decimal output is available
(indicating room status and destination).
4 decimal digits output is indicated.
Control the pocket paper by make output of
relays.
When the indication panel shows several incom-
ing calls at the same time, the called party may
select any of them for response.
This is used to cancel the calling party indica-
tion without conversation.
— 12 —
