Troubleshooting Print Quality

Print Quality Problems

Solution

Instructions

Light stripes or missing colors.

Clean the printhead with
the printer’s front panel
troubleshooting routine.

On the front panel, scroll to

Menu

. Press

Select

Scroll to

Troubleshooting

; press

Select

Scroll to

Print Test Page

; press

Select

. If print looks like example

in the illustration, go on to Step

Scroll to

Eliminate Light Stripes

; press

Select

Confirm that the problem is corrected: from the

Troubleshooting

menu,

select

Print Test Page

Repeat Step

as necessary. If light stripes persist after three consecutive

clean cycles, turn off the printer for four hours to allow the ink to cool and
solidify. Then turn on the printer and repeat the clean cycles, if necessary.
For more details, refer to the online topic, “Light Stripes on Prints,” on the
printer’s CD-ROM or web site.

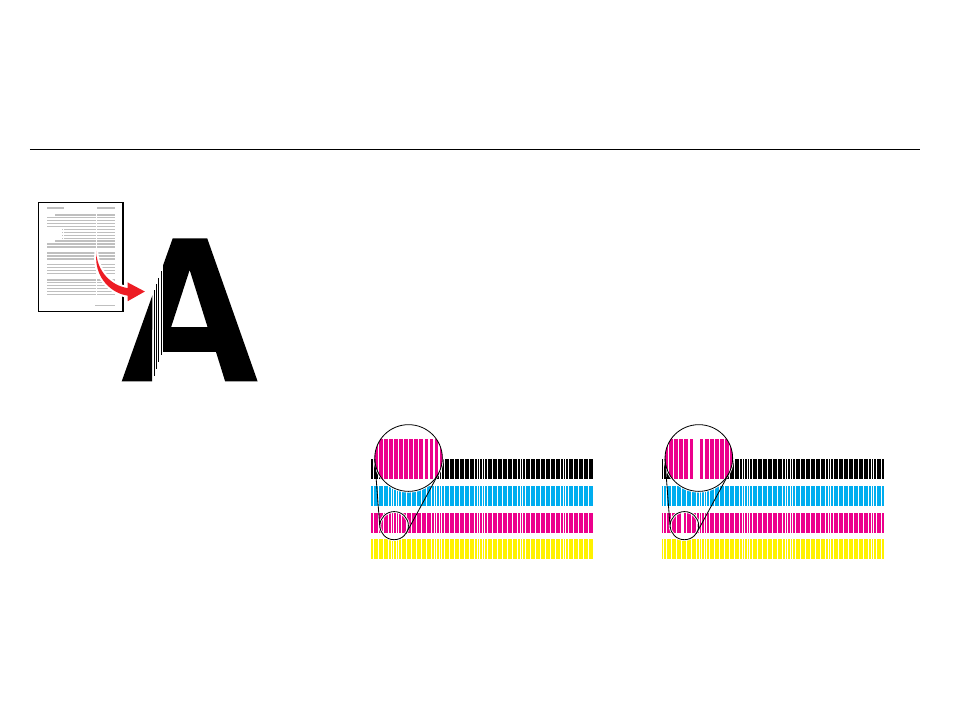

These illustrations show a correct Test Page and an example of a Test Page
with a missing color bar.

Correct test page

B. Missing color bar
