SECTION 12 : Loading Ribbons

28

4)

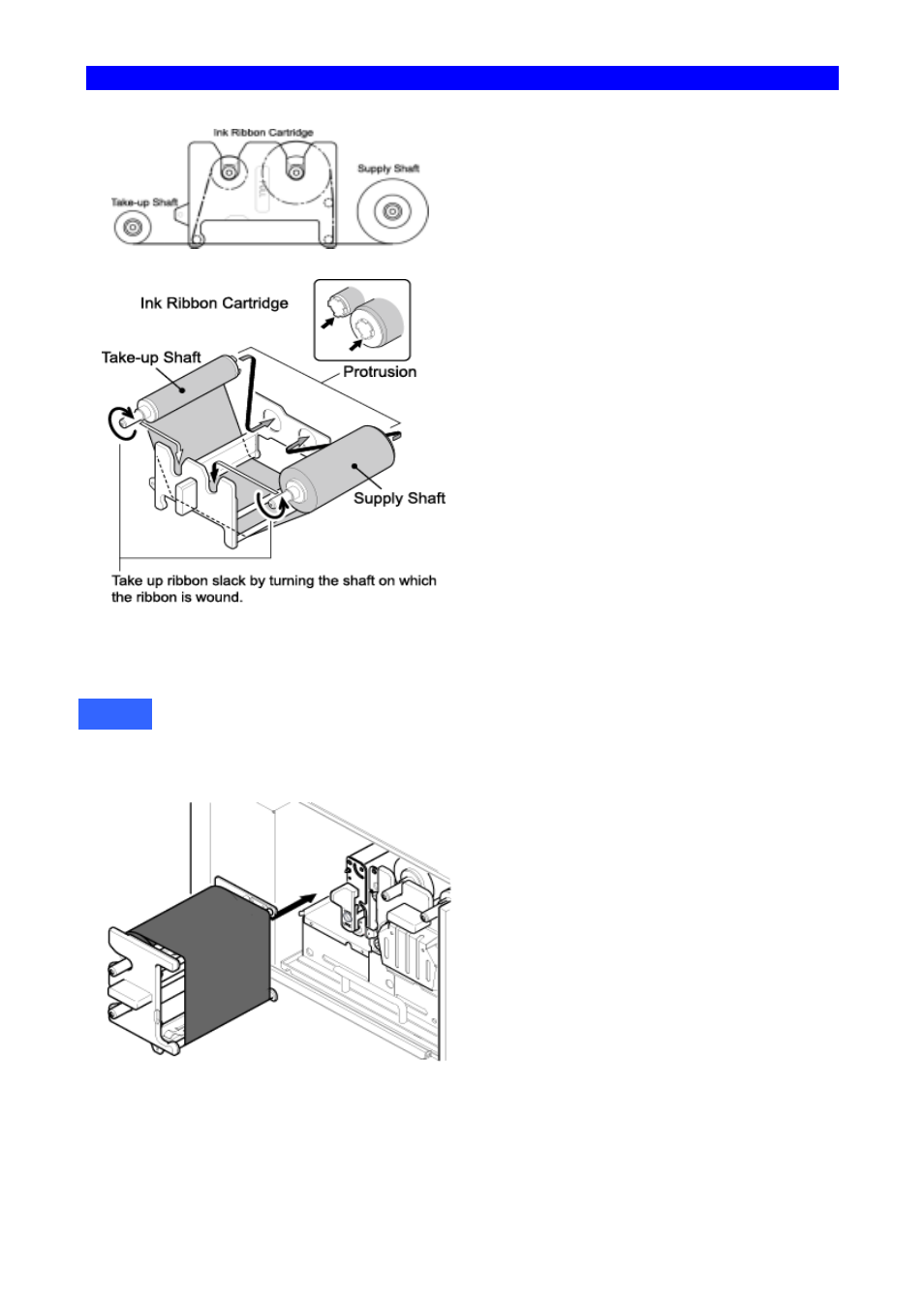

Place the ink ribbon with the take-up shaft on

the left and the supply shaft on the right, and
their protrusions facing you and their
openings facing away from you.

5)

Insert the open end of the take-up shaft into

the hole provided in the cartridge (for ease of
work, we recommend holding the shaft by
inserting your index finger into its open end),
and snap the protrusion at the other end of
the shaft into the cut-off in the cartridge.

6)

In a similar way, put the supply shaft into the

ink ribbon cartridge.

7)

Turn the take-up shaft clockwise to take up

ribbon slack.

*You may see some dust on the cartridge guide roller or guide plate when replacing ink ribbons.

See 3. of SECTION 16 : Maintenance for details.

If you perform the next step without taking up ribbon slack, there is a chance that the ribbon might
be broken.

8)

Mount the ink ribbon cartridge in the P-55

itself.

When mounting the ribbon cartridge, push it
directly and slowly. If you try to force it in
slantwise, there is a chance that the ribbon
might be broken. If the ribbon clogs
somewhere, take out the cartridge, take up
ribbon slack again, and slowly re-insert the
cartridge.
