8
En
gl
ish
Copyright © 2006 TOSHIBA CORPORATION. All rights reserved.
300-75 ohm ADAPTOR
(Not supplied)
or
75 ohm coaxial cable (round)
VHF, UHF or
VHF/UHF combination
antenna
Cable TV lead-in
300 ohm twin-lead (flat)
COMBINER
(Not supplied)
IN OUT
VHF ANTENNA
UHF ANTENNA
300 ohm twin-lead
300 ohm twin-lead
75 ohm coaxial cable
or
Home Antenna
terminal (75 ohm)

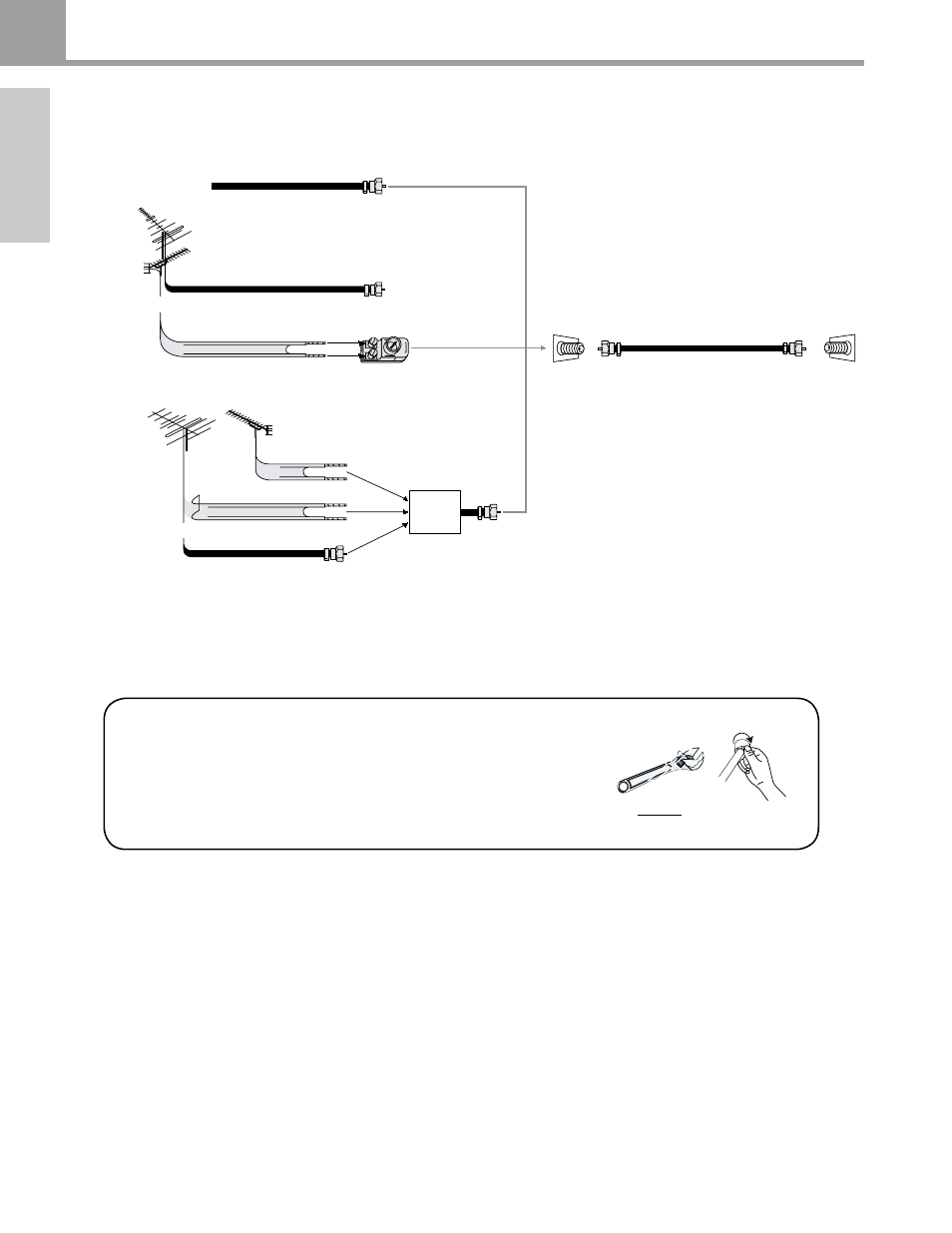

E. Connection with Antenna Cable
1. Cable without a CATV Converter
2. VHF/UHF Combination Antenna
3. Separate VHF/UHF Antenna
RF IN
X
75-ohm coaxial cable
F-type connector
Note:
When connecting 75 ohm (RF) coaxial cable to the TV,
HAND-TIGHTEN only.
NEVER use tools to tighten F-type connectors.
Using tools may damage the TV. This type of damage
is NOT COVERED BY YOUR WARRANTY.
Cable TV (CATV/DTV) connection
• A ohm coaxial cable (F-type) connector is built into the TV for easy hookup.
Connecting an antenna cable
Connecting and Checking the Antenna
3
• Some cable TV companies offer “premium pay channels.” Since the signals of these premium pay channels
are scrambled, a cable TV converter/descrambler is generally provided to the subscriber by the cable TV
company. This converter/descrambler is necessary for normal viewing of the scrambled channels.
Set your TV on channel 3 or 4 (whichever channel is used by your cable TV company). For more specific
instructions on installing cable TV, consult your cable TV company.
75 ohm coaxial cable
