Controls and Connections
4
Connect EITHER
S-Video OR
standard video
cable. Do not
connect both types
of video cable
at the same time.
S-Video device
connected to
VIDEO-1 IN
Component video DVD player
connected to
COLOR STREAM HD-1 IN*
Antenna, cable box,
or satellite dish
connected to
ANT IN
Audio system
connected to
AUDIO OUT
}
HDMI or DVI device
connected to
HDMI IN*

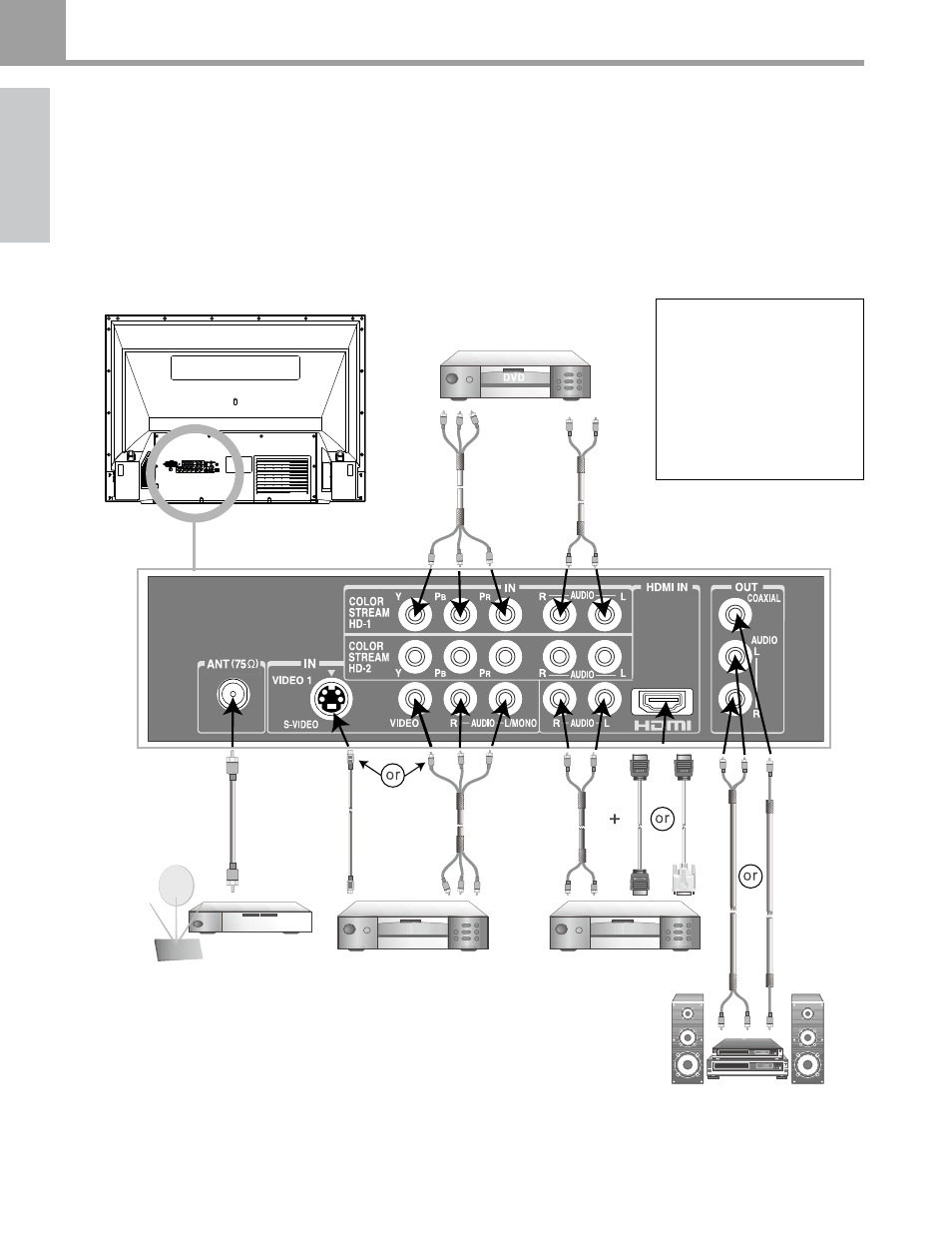

Back panel connections
To view a source connected to one of the inputs on the back panel, press INPUT on the side panel to select the
applicable input: TV, AV1, S-Video, ColorStream HD-1, ColorStream HD-2, or HDMI.
Note:
• The TV’s INPUT key is on the side panel (not the front).
• For details on the video output requirements of your other devices, refer to the owner’s manuals for those devices.
• Cables are not supplied.
____________
* You can connect a component video-compatible device to either set of ColorStream
® inputs
on the TV back panel—ColorStream HD-1 or ColorStream HD-2.
** For proper operation, it is recommended that you use as short an HDMI cable as possible (shorter than
16.4 ft (5m). HDMI cable transfers both video and audio; therefore, separate analog audio cables are
not required. Some CDVs (video CDs) may not output digital audio signals, in which case you may hear
sound by connecting analog audio cables. Connecting a DVI device requires an HDMI-to-DVI converter
cable and analog audio cables. Because this is an evolving technology, it is possible that some devices
may not operate properly with the TV.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
