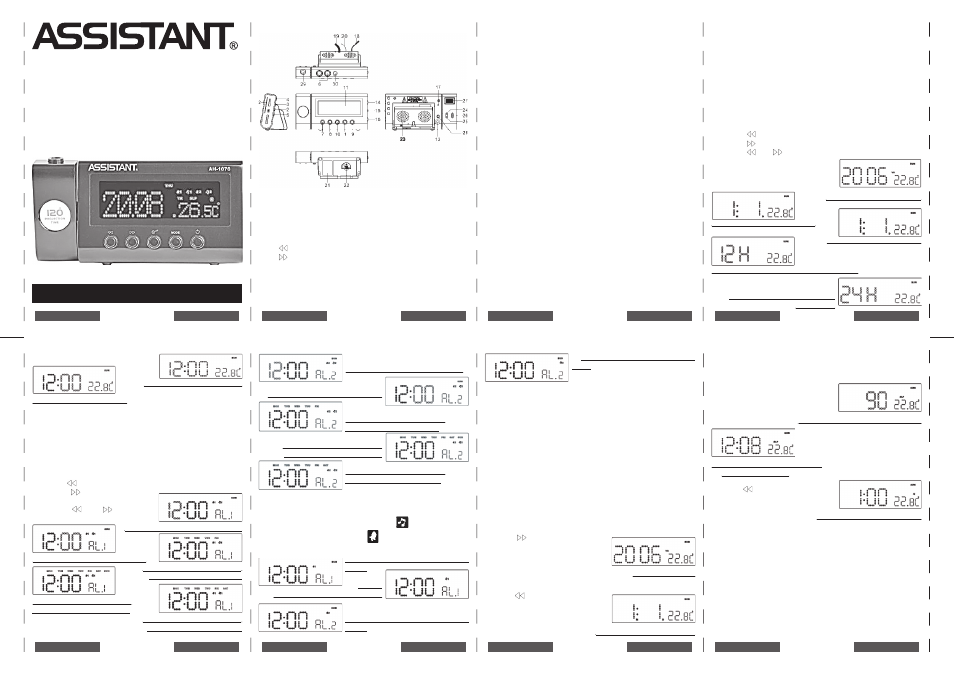

ASSISTANT AH-1076 User Manual
Led clock with projector and radio, Operation manual

14. VOLUME CONTROL
15. WAVE BAND
16. TUNING CONTROL
17. RESET BUTTON
18. TEMPERATURE SENSOR (INDOOR)
19. AC POWER CORD
20. FM ANTENNA WIRE
21. RATING LABEL
22. BATTERY COMPARTMENT
23. SPEAKER
24. MINUTE BUTTON FOR PROJECTION UNIT
25. HOUR BUTTON FOR PROJECTION UNIT
26. TIME SET BUTTON FOR PROJECTION UNIT
27. FOCUS ADJUSTMENT FOR PROJECTION UNIT
28. PROJECTION ON/OFF BUTTON
29. PROJECTION UNIT
30. AUTO DIMMER SENSOR
POWER CONNECTION
Plug the AC power cord to a household outlet AC source.
This unit is equipped with a battery back up system, it requires
a 3Ч3 Volt CR2025 Flat Lithium battery (Not included). Insert the
battery in the battery compartment, making certain that the
positive and negative (+ and -) battery terminals are attached
to the corresponding terminals on the plate of the battery com-
partment. If an AC power failure occurs, the clock automatically
switches to the battery power supply, the clock and timer mem-
ory continue running. When the AC power resumes, the clock
switches back to AC again.
GETTING STARTED
Press the reset button (17) located on the back of the unit af-
ter AC plug in.
The unit will display full segment for 2 seconds, then it will
enter the normal mode.
Display will lighten up.
1. TIME AND CALENDAR SETTING
A. Setting Time and Calendar – Press Mode Set button (1) in
normal mode and hold it over 2 second to enter Time Set mode,
after entering the setting mode, press Mode Set button (1) to
change the mode cycle as follows:
Normal
→
Year
→
Month
→
Day
→
12/24H
→
RTC Hour
→
RTC Min
→
Normal
Action (during data adjustment):
- Press [
] button (7) to adjust data backward
- Press [
] button (8) to adjust data forward
- Hold [
] or [
] button for 2 seconds to enable auto for-
ward
a. Year Set Mode
Initial Value: 2006
Year Range: 2000-2099
Display Shows Year Set Mode
p y
b. Month Set Mode
Display Shows Month Set Mode
p y
c. Day Set Mode
Display Shows Day Set Mode
p y
y
Remark: Weekday will recalculate when year,
month or day is adjusted
d. 12/24H Set Mode
Display Shows 12/24H Set Mode (Select 12H)
p y
(
)
Display Shows 12/24H Set Mode
p y
(Select 24H)
(
)
ENGLISH
– 2 –
ENGLISH
MAIN UNIT
1. MODE SET BUTTON
2. ALARM SET BUTTON
3. ALARM 1 BUZZER/RADIO SELECT BUTTON
4. ALARM 2 BUZZER/RADIO SELECT BUTTON
5. °C/F° BUTTON
6. INFRARED SENSOR
7. [
] SET BUTTON
8. [
] SET BUTTON
9. POWER ON/OFF (ALARM OFF) BUTTON
10. SNOOZE/SLEEP BUTTON
11. LED DISPLAY
12. DIAL SCALE AND POINTER
13. AUDIO IN JACK
LED CLOCK WITH
PROJECTOR
AND RADIO
MODEL AH-1076
OPERATION MANUAL
ENGLISH
– 3 –
ENGLISH
e. RTC Hour Set Mode
Display Shows Hour Set Mode
p y
f. RTC Min Set Mode
Display Shows Min Set Mode
p y
Remark: Seconds will reset for every minute adjustment
B. Setting Alarm 1 and Alarm 2 – Press Alarm set button (2)
during normal mode and hold it over 2 seconds to enter alarm
set mode, after entering the setting mode, press Alarm set but-
ton (2) to change the mode cycle as follows:
Normal
→
AL1 Hour
→
AL1 Min
→
AL1 Weekend Alarm
→
AL2 Hour
→
AL2 Min
→
AL2Weekend Alarm
→
Normal
Action (during data adjustment):
- Press [
] button (7) to adjust data backward
- Press [
] button (8) to adjust
data forward
- Hold [
] or [
] button for
2 seconds to enable auto forward
Display Shows Setting Alarm 1 Hour
p y
g
Display Shows Setting Alarm 1 Min
p y
g
Display Shows Setting Alarm 1
p y
g
Weekend Alarm – Mon to Fri
Display Shows Setting Alarm 1
p y
g
Weekend Alarm – Mon to Sun
Display Shows Setting Alarm 1
p y
g
Weekend Alarm – Mon to Sat
Display Shows Setting Alarm 2 Hour
p y
g
Display Shows Setting Alarm 2 Min
p y
g
Display Shows Setting Alarm 2
p y
g
Weekend Alarm – Mon to Fri
Display Shows Setting Alarm 2
p y
g
Weekend Alarm – Mon to Sun
Display Shows Setting Alarm 2
p y
g
Weekend Alarm – Mon to Sat
2. SETTING ALARM OUTPUT AND ALARM ON/OFF
A. Change the alarm Output
Press AL1 (3)/AL2 (4) button to music
position to select
wake up by Radio, set to Buzzer
position to select wake up
by Buzzer, set to Alarm Off position to disable all alarm.
Display Shows Alarm 1 wake up by
p y
p
y
Buzzer
Display
p y
Shows Alarm 1 wake up by Radio
p y
Display Shows Alarm 2 wake up by
p y
p
y
Buzzer
ENGLISH
– 4 –
ENGLISH
ENGLISH
– 6 –
ENGLISH
ENGLISH
– 7 –
ENGLISH
ENGLISH
– 5 –
ENGLISH
ENGLISH
– 1 –
ENGLISH
Display Shows Alarm 2 wake up by
p y
p y
Radio
B. Buzzer Pattern
1
st
8 seconds output 1 beep, 2
t
nd
8 sec-
onds output 2 beeps, 3
rd
8 seconds output 4 beeps, after that continue
output beep tone, the same pattern repeats at next minute again.
3. ALARM DURATION AND SNOOZE
FUNCTION
Alarm Duration – Buzzer Alarm or Radio Alarm will continue
to output for 30 minutes if no key is pressed, then it will stop
automatically and wait for same alarm time on next day.
Action for Snooze:
- During alarming, press SNOOZE button (10) to enable
snooze function, Buzzer Alarm or Radio Alarm will stop.
- Snooze Interval is 9 minutes (not including second off set)
- Snooze will continue unless you press Power On/Off (Alarm
Off ) button (9) to Alarm Off or Buzzer Alarm or Radio Alarm stop
automatically after 30 minutes.
4. CHANGE DISPLAY CONTENT
Press [
] button (8) during nor-
mal mode can switch to display year,
after 5 second timeout and return
back to display time.
Display Shows Year
p y
5. CHANGE DISPLAY CONTENT
Press [
] button (7) during normal
mode can switch to display Month
and day, after 5 second timeout and
return back to display time.
Display Shows Month and Day
p y
y
6. SLEEP FUNCTION
During Radio on mode, press Snooze/Sleep button (10) to
turn on Sleep mode, the Sleep time will keep fl ashing by 5 sec-
ond, within 5 second and press Sleep
button to change the duration from
90 min – 10 min. Press button (9) to
cancel sleep function.
Display Shows Setting Sleep Duration
p y
g
p
Display Shows Under Sleep Mode
p y
p
(Radio Now Turn On)
(
)
DST – Daylight Saving Time
Press [
] button (7) and hold for
3 seconds to toggle on and off DST
Function
Display Shows turn DST icon On
p y
7. THERMOMETER FUNCTION
Remark: Temperature Range for Indoor: 0 to +50°C or 32 to 122°F
RADIO OPERATION
Press the Power on/off button (9) to turn radio on
Select AM or FM band using the wave band switch (15)
Select the Station using the tuning control (16)
Turn the volume control (14) to adjust volume as re-
quired
Press the power on/off button (9) to turn radio off .
Note:
The AM band uses an internal directional aerial. Rotate the radio for best reception.
Ensure that the FM cord antenna (20) is completely unrolled and extended for best
FM reception.
