30 G9000 Installation and Operation Manual

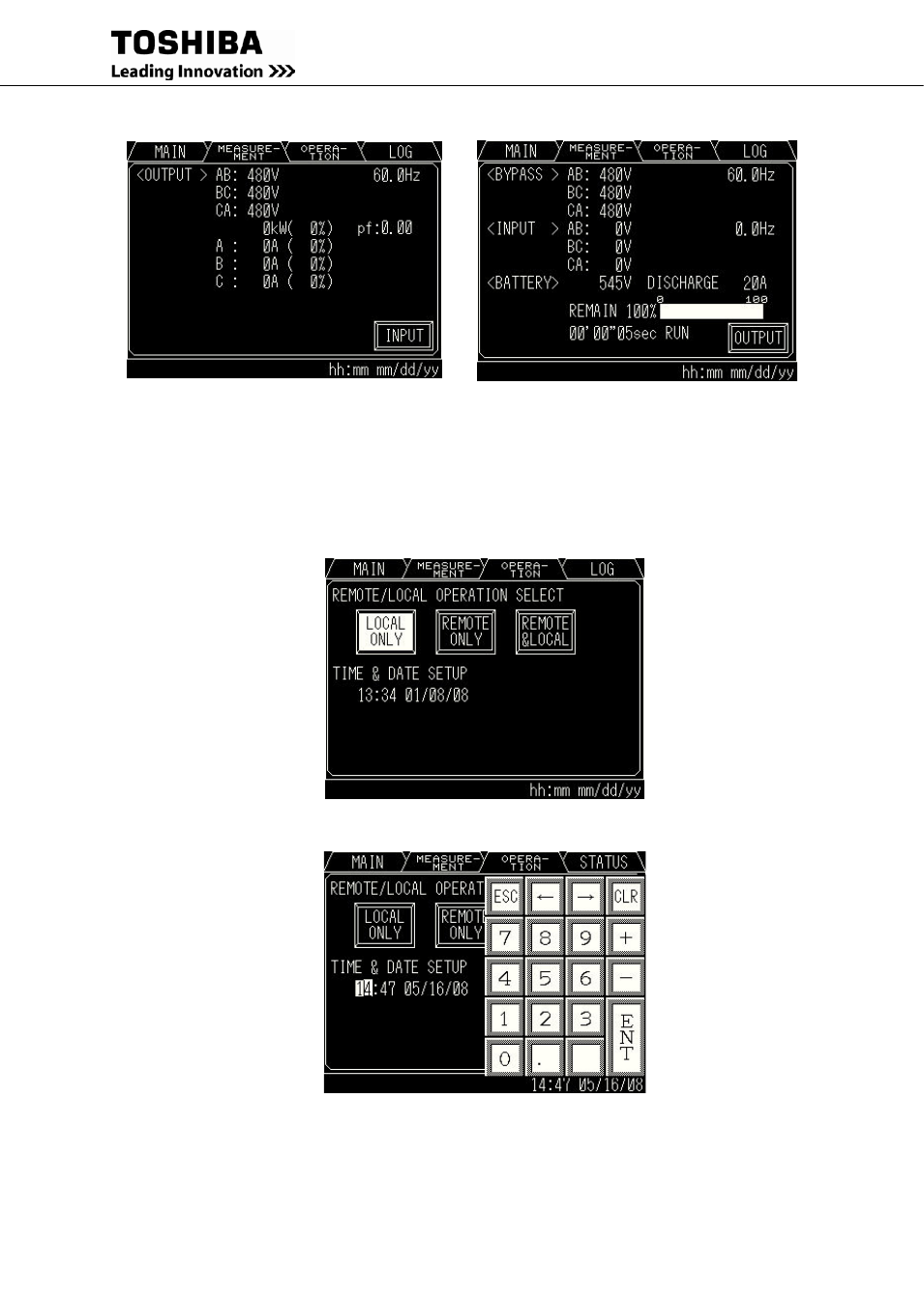

FIGURE 2.4.2 Output values FIGURE 2.4.3 Values in Battery operation
C) OPERATION MENU (FIGURES 2.5.1 to 2.5.2)
This screen prompts the user to select: (a) whether the start & stop operation will be performed by
local or remote operation; (b) date & time adjustment; (c) battery equalizing charge. The battery
equalizing charge operation key will appear when battery equalizing charge is set up (Setup is based
on battery type).
FIGURE 2.5.1 Remote/Local operation select
FIGURE 2.5.2 Date & Time adjustment
