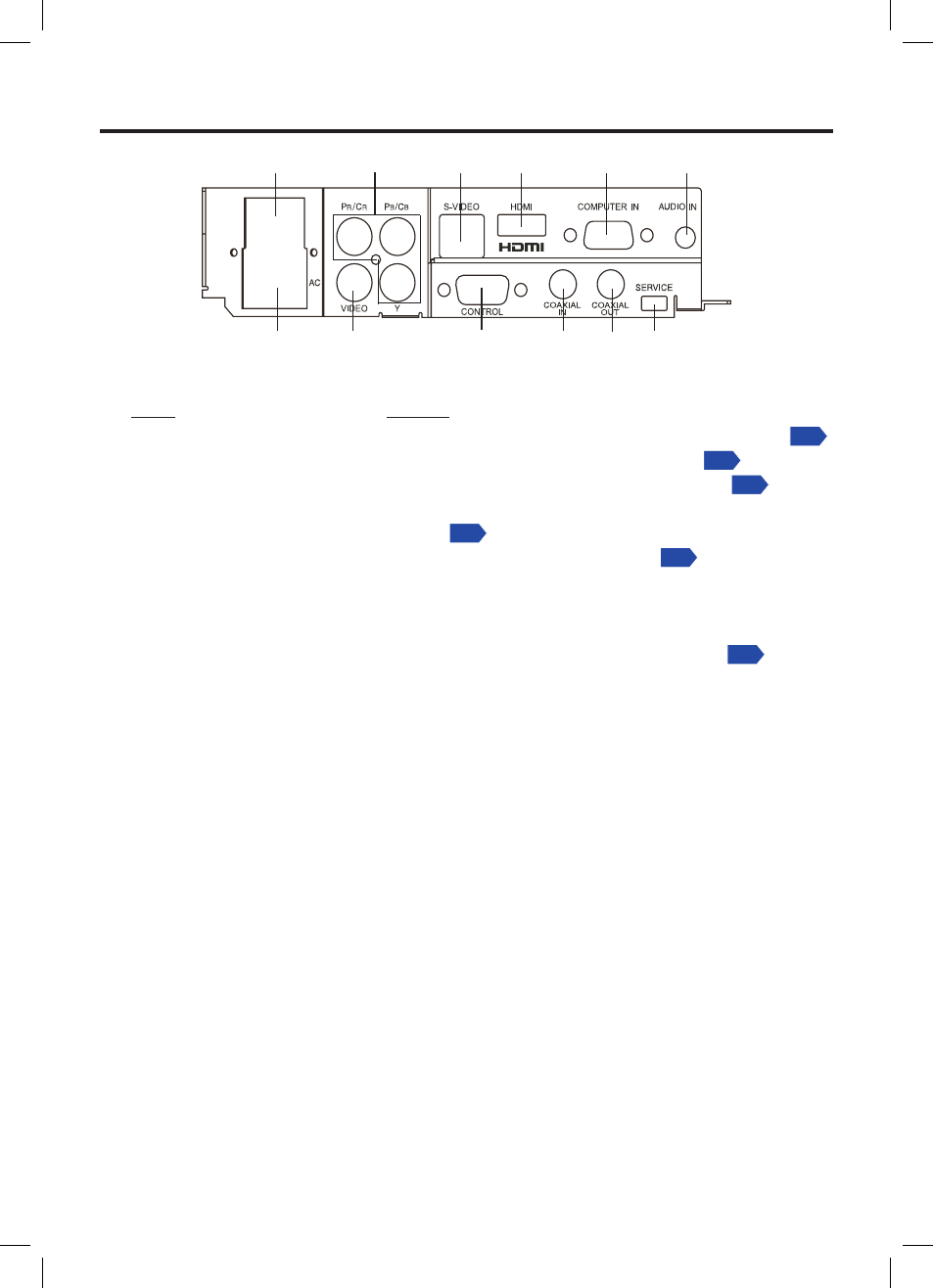

Terminal panel
3 1
2 12 7 8 9
6 5 4 11
10
For more information, see the pages in parentheses.
Name Function
(1) YPBPR/YCBCR (Component) : Input component video signal from video equipment. p.24
(2) VIDEO terminal : Input video signal from video equipment. p.24
(3) S-Video terminal : Input S-Video signals from video equipment. p.24
(4) HDMI terminal : Input HDMI (Digital Audio/Video) signal from video equip-
ment. p.25
(5) COMPUTER IN terminal : Input RGB signal from a computer. p.25
(6) AUDIO IN terminal : Inputs audio signals from equipment with audio
output.
(7) CONTROL serial terminal : When operating the projector via a computer, connect
this to the controlling computer’s serial port. p.58
(8) COAXIAL (Digital Audio) In : Inputs digital audio source with coaxial output.
terminal
(9) COAXIAL (Digital Audio) : Outputs digital audio signal to external audio system
Out terminal with coaxial input.
(10) Service terminal : For service purpose only.
(11) Main power switch : Switch power on/off
(12) AC In socket : Plug in AC Power
■ Note
Although this owner’s manual abbreviates component video signals as YP
B
P
R
, the product
also supports signals from video equipment marked “YC
B
C
R
.”
