17
Preparations

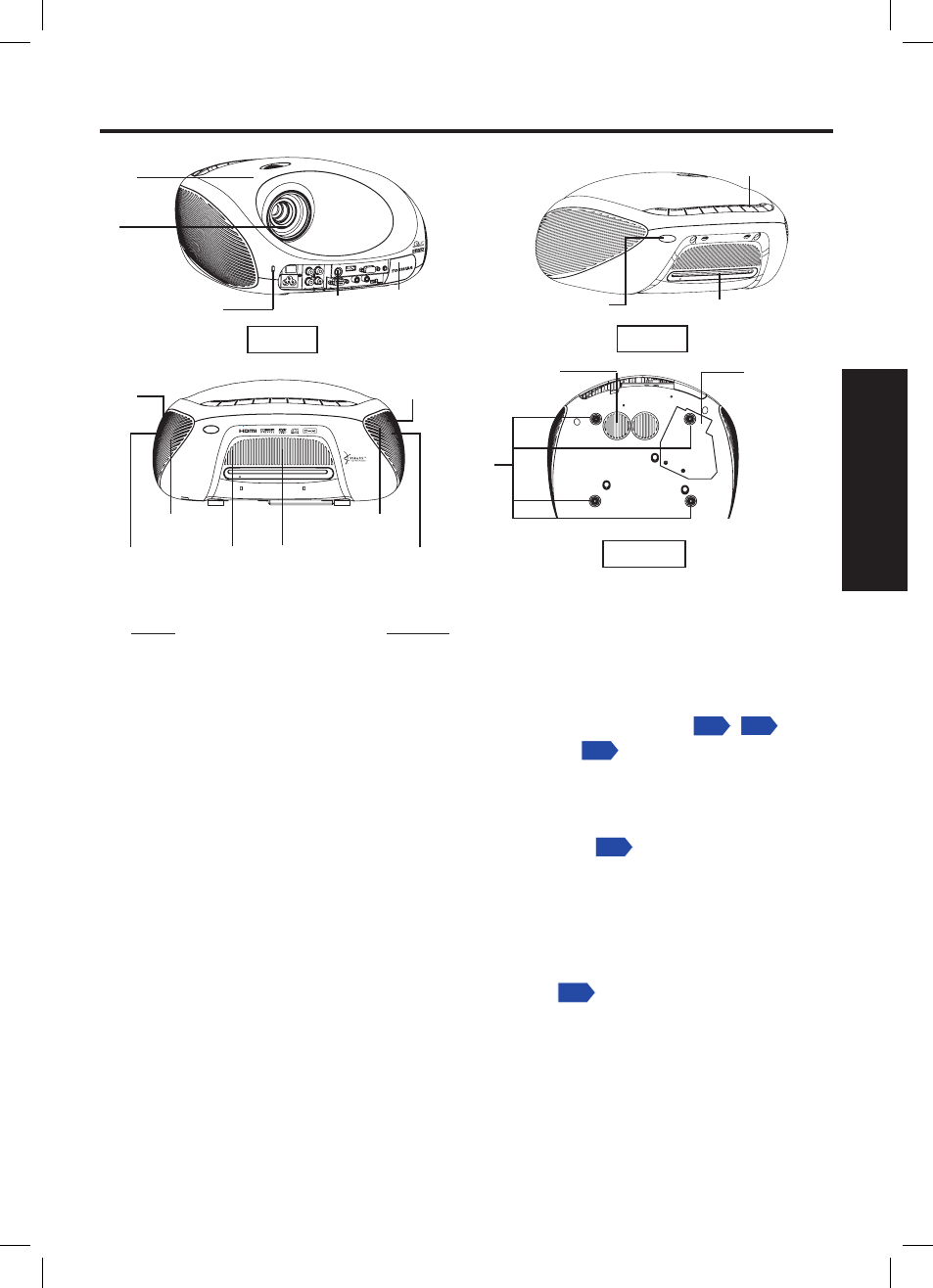

Names of each part on the main unit
Front Rear
For more information, see the pages in parentheses.
Name Function
(1) Lens Project expanded image.
(2) Focusing ring Adjust screen focus.
(3) Infrared remote sensor Sense commands from the remote control.
(4) Control panel Adjust the main functions of the projector. p.18 ~ p.19
(5) Terminal panel Connect external devices. p.20
(6) Foot adjuster Adjust the vertical projection angle.
(7) Air intake Draw in air from outside the projector.
(8) Air exhaust Expel air that has grown hot inside the projector.
(9) Lamp cover Open for lamp replacement. p.50
(10) Built-in 5.1 speakers Built-in speakers to discrete audio channels.
10A. Center speaker Built-in speaker for center channel sound.
10B. Front speakers Built-in speaker for front channels sound.
10C. Rear speakers Built-in speaker for rear channels sound.
10D. Subwoofer speaker Built-in speaker for subwoofer sound.
(11) Disc slot (for TDP-ET20) Insert DVD or CD disc. p.31
(12) Antitheft lock hole TOSHIBA recommend to use Kensington’s MicroSaver or
ComboSaver for antitheft lock. For detail, please see the
internet web site: www.kensington.com
Bottom
2
1
5 3
11
4
9
8
8
10C 10C
10B 7 10B
3
10D
6
10A
12
