Connecting to a TV equipped with component video inputs
If your TV has component video inputs, you can obtain pictures in better quality.
Component video outputs/inputs
Some TVs or monitors are equipped with component
video inputs. Connecting to these inputs allows you to
enjoy higher quality picture playback.
Actual labels for component video inputs may vary
depending on the TV manufacturer. (ex.Y, R-Y, R-B or
Y, C
B
, C
R
)
In some TVs or monitors, the color levels of the
playback picture may be reduced slightly or the tint
may change. In such a case, adjust the TV or monitor
for optimum performance.
To switch the output signal (Progressive/Interlaced)
Press PROGRESSIVE on the remote control.
The output signal alternates between
component progressive and component
interlaced.
• If the recorder detects any data that indicates
the contents are copy protected, it may not
output the contents in the progressive format.
Notes
• Refer to the owner’s manual of the connected TV as well.
• When you connect the recorder to other equipment, be sure to turn off the power and unplug all of the equipment from the
wall outlet before any connections.
• If you place the recorder near a tuner or radio, the radio broadcast sound might be distorted. In this event, place the recorder
away from the tuner and radio.
• The output sound of the recorder has a wide dynamic range. Be sure to adjust the amplifier’s volume to a moderate listening
level. Otherwise, the speakers and your hearing may be damaged by a sudden high volume sound.
• Turn off the amplifier before you connect or disconnect the recorder’s power cord. If you leave the amplifier power on, the
speakers may be damaged.

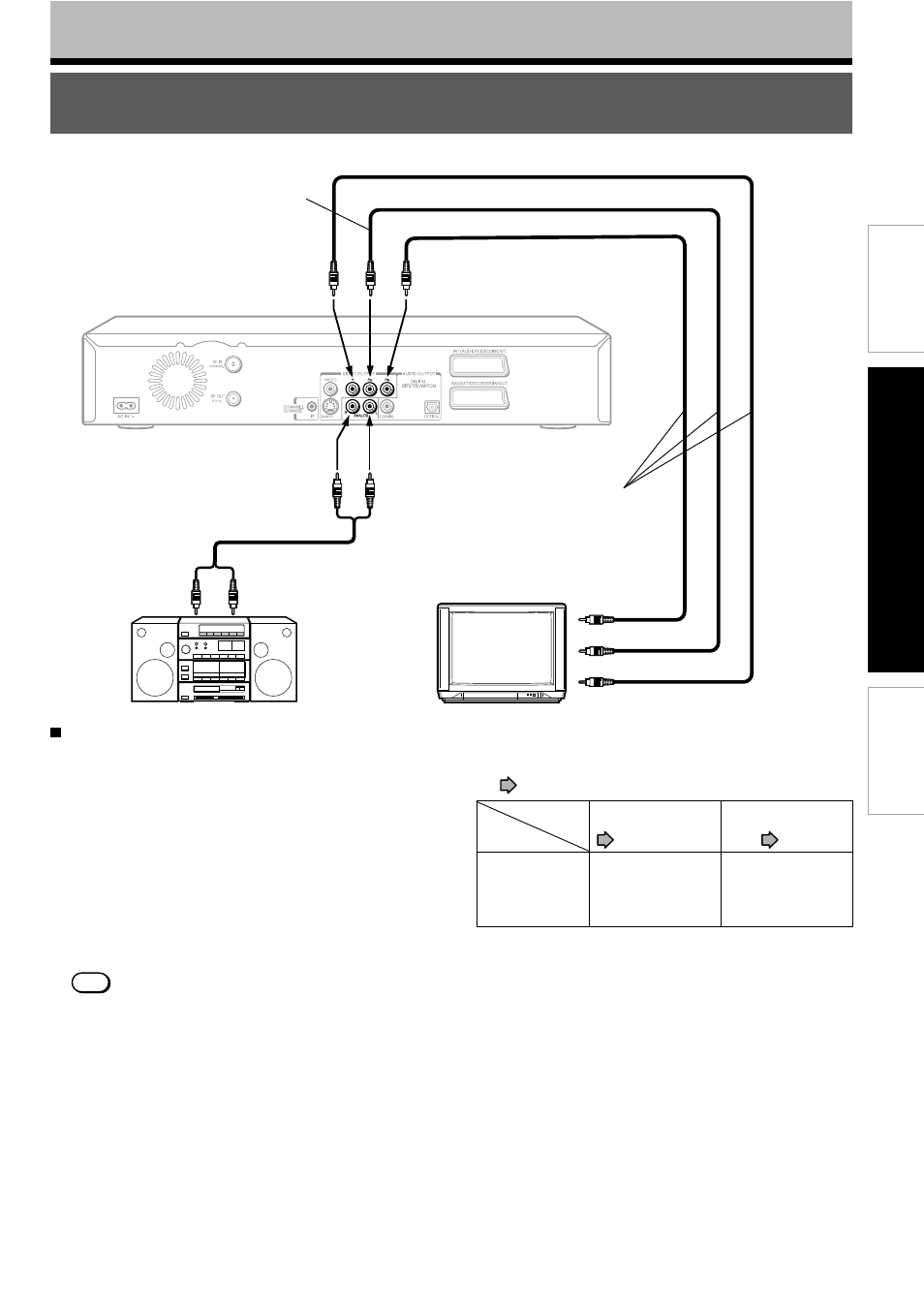

To audio
inputs of the
amplifier
To P
R
VIDEO
OUTPUT
(white)
(red)
To ANALOG
AUDIO OUTPUT
(L: white)
To ANALOG
AUDIO OUTPUT
(R: red)
To P
B
VIDEO
OUTPUT
To Y VIDEO
OUTPUT
To Y video input
To P
B
video input
To P
R
video input
TV or monitor
equipped with
component
video inputs
Audio cable (not supplied)
Video cable
(not supplied)
PROGRESSIVE
• The following setting is required according to the TV
that you are connecting. Perform this setting after step
4 (
page 15).
Setting
“AV1 output” on the
“Initial settings” menu.
page 43
TV or monitor
equipped with
component video
inputs
“Video” or “S-Video”
“Audio out select” on the
“Picture/Audio settings”
menu.
page 48
TV
“Analog 2ch”
• Selecting “RGB” disables signal output from the VIDEO
OUT (Y, P
B
, P
R
) jacks. If the on-screen display
disappears immediately after you select “RGB”, you
can restore it by connecting the recorder using the
VIDEO OUTPUT (yellow) jack.
