Make a connection first. - Plug & Auto Set Up function
If you make a simple connection and plug in, your recorder will automatically store TV stations in memory and
set its clock (Plug & Auto Set Up function), to be ready for recording and viewing of TV programmes. Follow the
procedure below.
For connecting to a satellite receiver, see the INSTALLATION GUIDE. ( I 18 – I 20 )

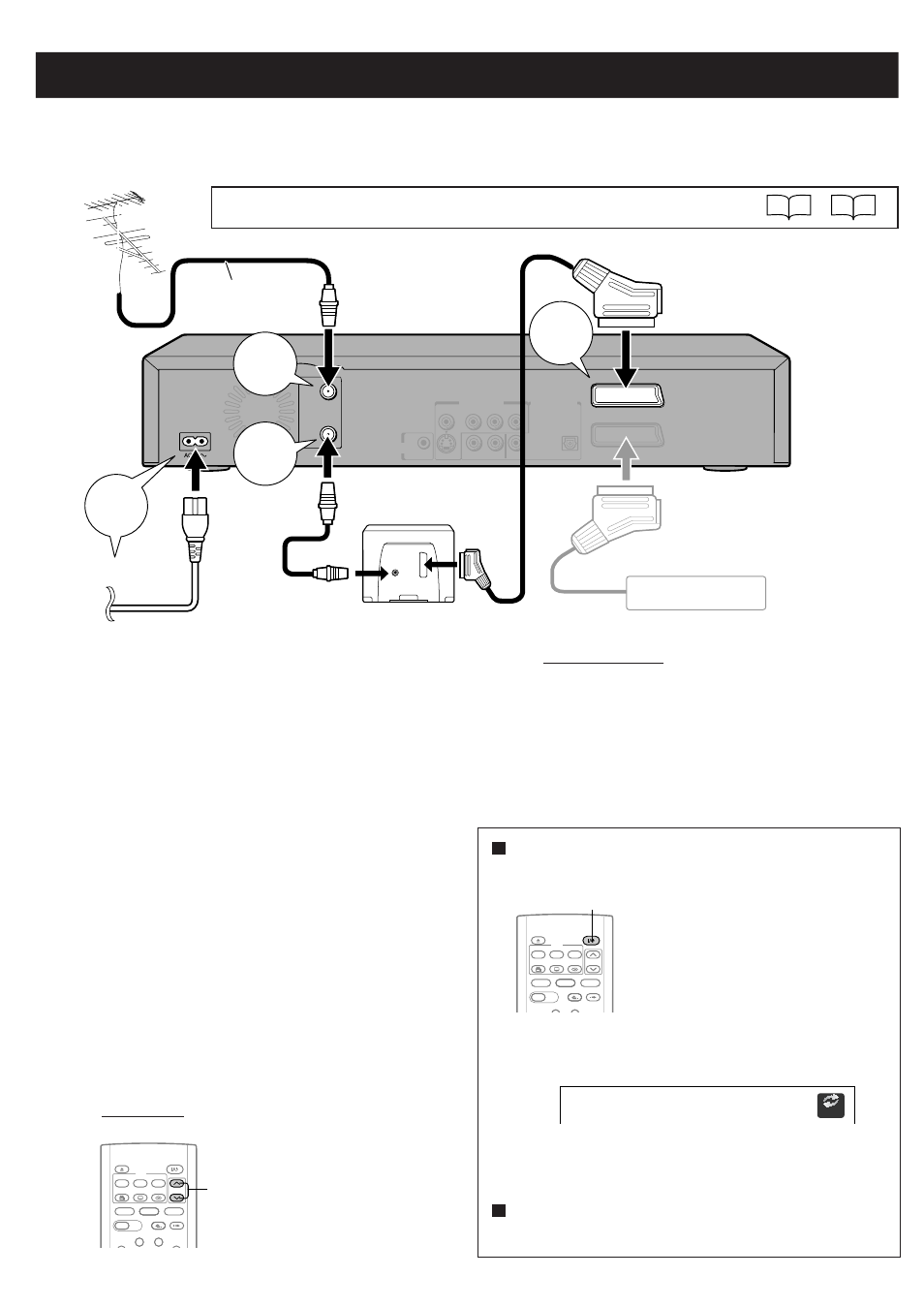

1
Disconnect the aerial cable from your
TV, and connect it to the RF IN (FROM
ANT.) terminal on the recorder.
2
Using the coaxial cable (supplied),
connect the RF OUT (TO TV) terminal
to the TV.
3
Connect the AV1(AUDIO/VIDEO)IN/
OUT socket to a TV equipped with
SCART input using the SCART cable.
4
Connect the power cord of the
recorder to a wall outlet.
TV stations (in the range of UHF E21-E69) will be
stored in memory. The process will finish after a
few minutes. (The display on the recorder shows
“Auto” while the Plug & Auto Set Up function is
running.) Then the date and time are set
automatically from broadcast signal.
5
Check the following.
TV stations
Press CHANNEL.
To add or change TV stations, go
to the next page.
Turning the power on
Press ON/STANDBY.
When the power is turned on, the
ON/STANDBY indicator changes
colour from red (standby mode) to
green (operation).
After a few seconds, a startup screen appears.
The following icon will appear on the top right corner of
the screen.
When this icon disappears, the recorder is ready to
operate.
Turning the power off
Press ON/STANDBY.
Recorder’s clock
If it is not correct, go to the next page.
If these are OK, your recorder is
ready!
Open this guide to the reverse side
to begin your recorder play.
