5.4
Setting the appropriate AC
voltage on TCU151
The TCU151 temperature controller works on 110/120V
or 220/240V if the fuse holder is oriented in the ap-
propriate position.
Note: There are two rates:
110-120V, 60Hz (USA)
220-240V, 50Hz (Europe)
5.4.1
Procedure
To set the appropriate voltage on the TCU151 tem-
perature controller, proceed as follows:
[1] Pull out the fuse holder (1) from the socket.
[2] Verify the orientation of the fuse holder to
get the appropriate voltage. The arrow on the
fuse holder (3) should correspond to the mark
on the socket (2).
[3] Insert the fuse holder (1) into the socket.
0
1
USE
ON
LY
WIT
H 25
0V
FUS
ES
/ EM
PLO
YER
UN
IQU
EM
EN
T AV
EC
DE
S F
US
IBLE
S D
E 2
50v
110
−120
V
22
0−2
40
V
UTP
UT
Max
: 15
V/6A
MO
NIT
OR
ING
10
mV
/ C
Zou
t: 20
0 oh
m
Exte
rna
l Re
f.
100
mV
/ C
Zin:
1 M
ohm
Inte
rloc
king
1

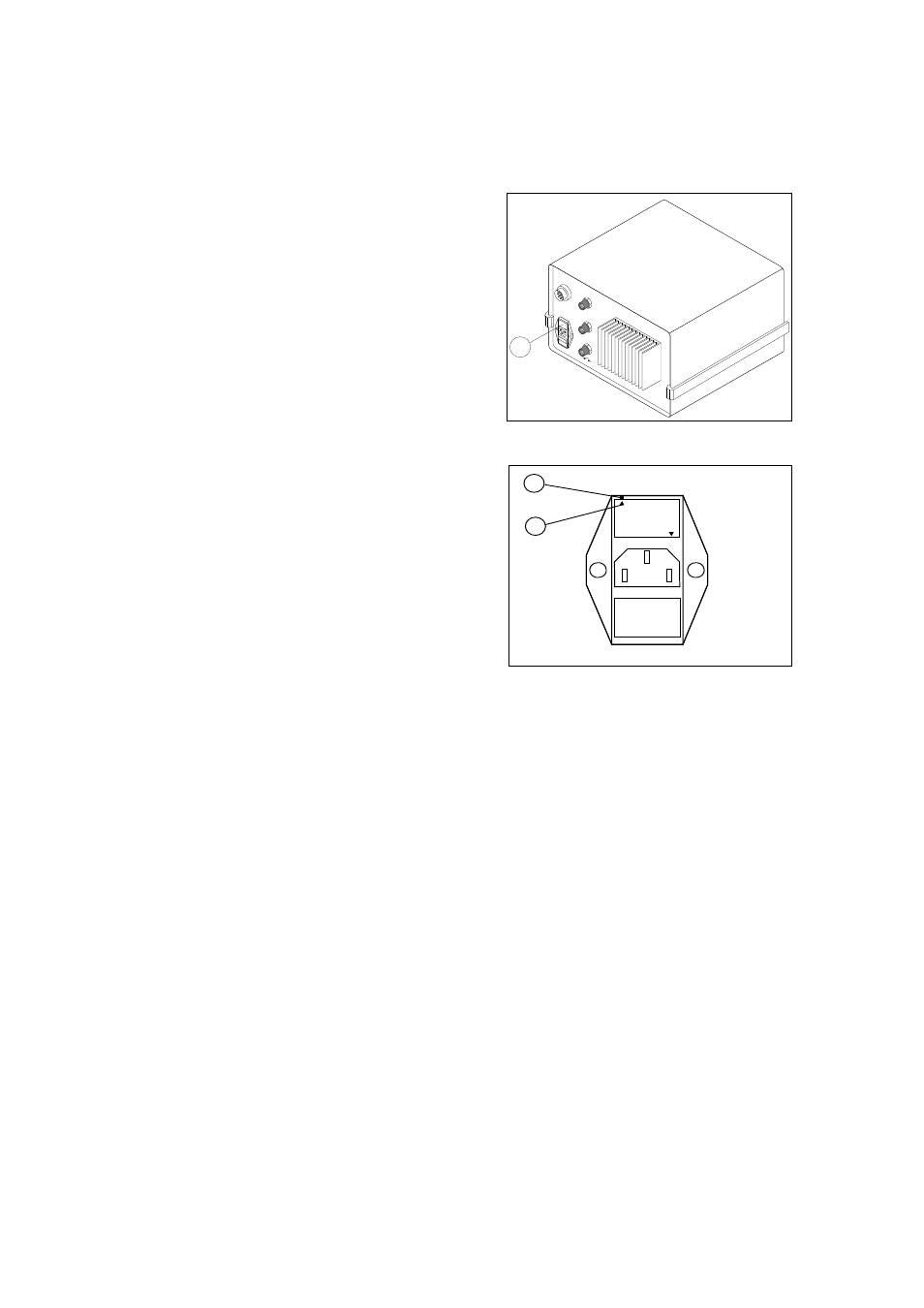

Fig.14:TCU151 rear panel
