Starter Kit Instruction Manual Description 17
LLH100 internal view
The Laboratory Laser Housing includes the follow-
ing items:
(1) LLH100 top cover
(2) PET U-shaped holder
(3) Gilded copper contact (UP and DN)
(4) Laser
(5) Laser receptacle
4.4.2 Specifications
Maximum Peltier current
(with water cooling): . . . . . . . . . . . . . . . . . . . . . 5A
Lowest reachable temperature
(with water cooling): . . . . . . . . . . . . . . . . . -40 ◦ C
Highest recommended temperature
(due to Peltier limitations): . . . . . . . . . . . 80 ◦ C
Window:
Diameter : . . . . . . . . . . . . . . . . . . . . 12.7 mm
Clear aperture: . . . . . . . . . . . . . . . . . 11 mm
Coating: . . . . . . . . . . . . . . ZnSe, 3 to 12 µm
Temperature measurement: . . . PT100 4 wires
1
2
3
4
5

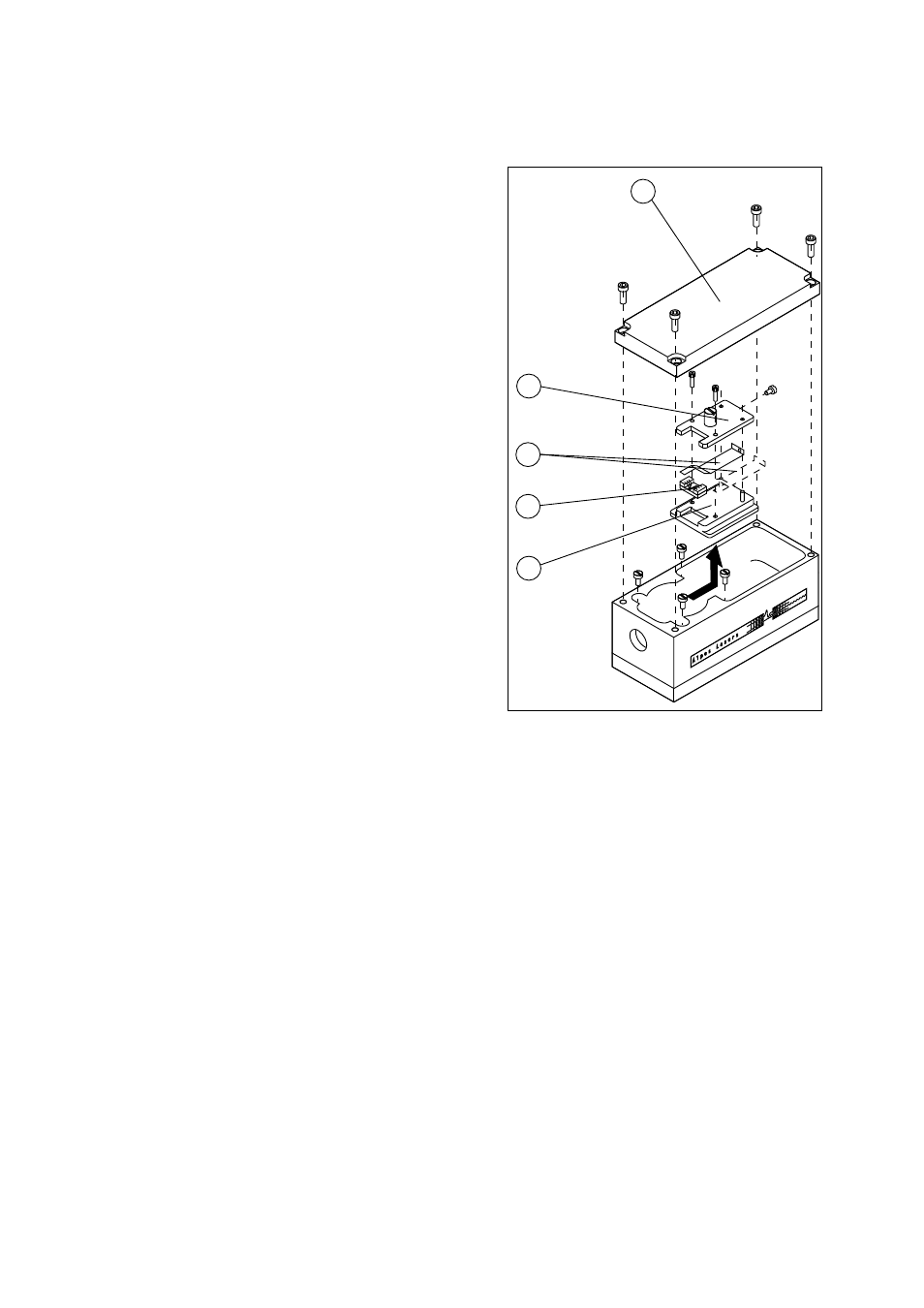

Fig.7: Laboratory Laser Housing internal view
