Chapter 4
Description
4.1
Chapter overview
This chapter gives a basic description of the Quan-
tum Cascade Laser Starter Kit system and its com-
position.
4.2
System Composition
The Quantum Cascade Laser Starter Kit is made
up of the following items:
(1) Laboratory Laser Housing (LLH100)
(2) Temperature Controller (TCU151)
(3) QCL pulse switching unit (LDD100)
(4) QCL pulser timing unit (TPG128)
For operation of the system, the user must pro-
vide a stabilized DC power supply capable of de-
livering DC current that corresponds to the laser
peak current multiplied with the specified duty cy-
cle at the specified LDD100 voltage: refer to the
datasheet of the laser.
CAUTION !
Do not lift TCU151 or TPG128 only on the top
cover, since this might loosen the connection be-
tween the cover and the chassis.
TPG
128
−TT
L P
ulse
Gen
era
tor
OFF
TCU151
ON
Pow
e
T
r
empe
ratur
0
e
.
C
2
o
t
n
o
t
2
r
.
o
2
l
µ
l
s
0
e
.
r
5 to
10.5
µ
s
5 to
105
µ
s
0 to
200
ns
−−
−−
−−
−−−
Per
iod
−−−
−−
−−−
−
−D
ura
tion
−
Ga
te
IN
Trig
OU
T
Ou
t 1
Ou
t 2
50
ohm
s
50
ohm
s
50
ohm
s
ma
x 6
0m
A
+12
V
0 V
connected to + hi High Voltage
Pulse on top, Bottom
Output
Current control Max 60V
Power supply 12V
Input
LDD 100
Monitor 20 A/V, Z50 Ohm
3
1
4
2

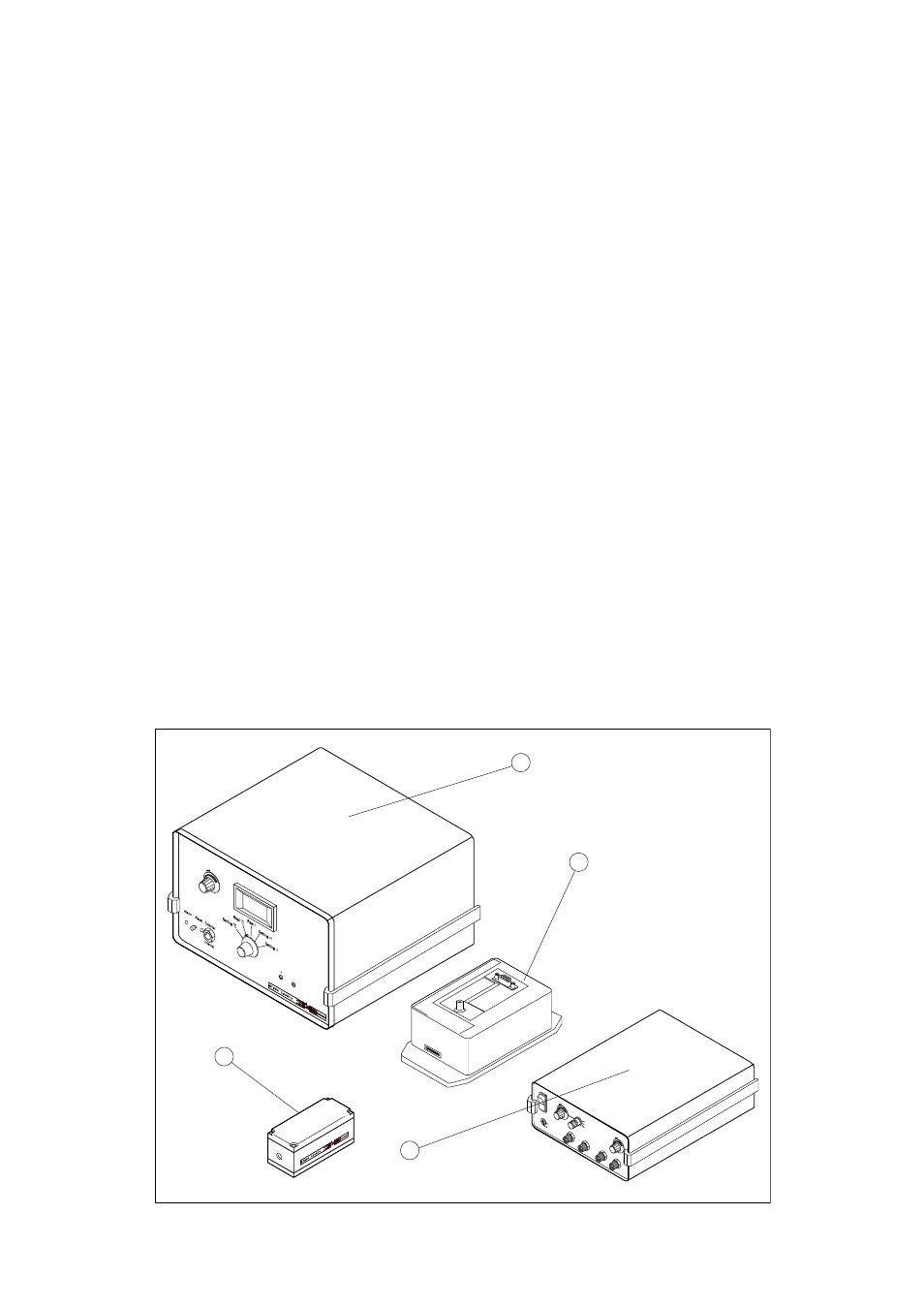

Fig.2: Quantum Cascade Laser Starter Kit
