Starter Kit Instruction Manual Description 25
4.8 QCL temperature controller(TCU151)
4.8.1 Description
The TCU151 is used to control the laser’s temper-
ature inside the Laboratory Laser Housing.
It uses a PT100 sensor to measure the tempera-
ture of the cold plate and maintains a pre-set tem-
perature either from a front panel knob or from a
user supplied voltage.
4.8.2 Specifications
Voltage: . . . . . . . . . . . . . . . . . . . . . . . 120-240V AC
Frequency: . . . . . . . . . . . . . . . . . . . . . . . . . 50-60 Hz
Fuse:
. . . . . . . . . . . . . . . . . . . . 1.6 A T (220-240V)
. . . . . . . . . . . . . . . . . . . 3.2 A T (110 -120V)
Peltier current maximum: . . . . . . . . . . . . . . . . 5A
Temperature control range: . -65 ◦ C to 65 ◦ C
Temperature measurement: . . . PT100 4 wires
Temperature monitor: . . . . 10mV/ ◦ C, Zout =
200Ω
In addition, allow for 15 min. warm-up of
TCU151 to get stable readings
External driving temperature: . -6.5V to 6.5V
(-65
◦ C to 65 ◦ C), Zin =1MΩ
4.8.3 Peltier and PT100 connections
The rear connector pinout is listed according to the
following items:
(1) Pin 1: +Peltier element
(2) Pin 2: - Peltier element
(3) Pin 3: +I PT100
(4) Pin 4: +Sense PT100
(5) Pin 5: -Sense PT100
(6) Pin 6: -I PT100
(7) Pin GND: Ground
TCU151
Tem pera
ture Con
trolle r
Alarm
Res et Exte rnal
Inter nal
Rea l I
Rea l C Settin
g C
Settin
g +I
Settin
g −I
+
−

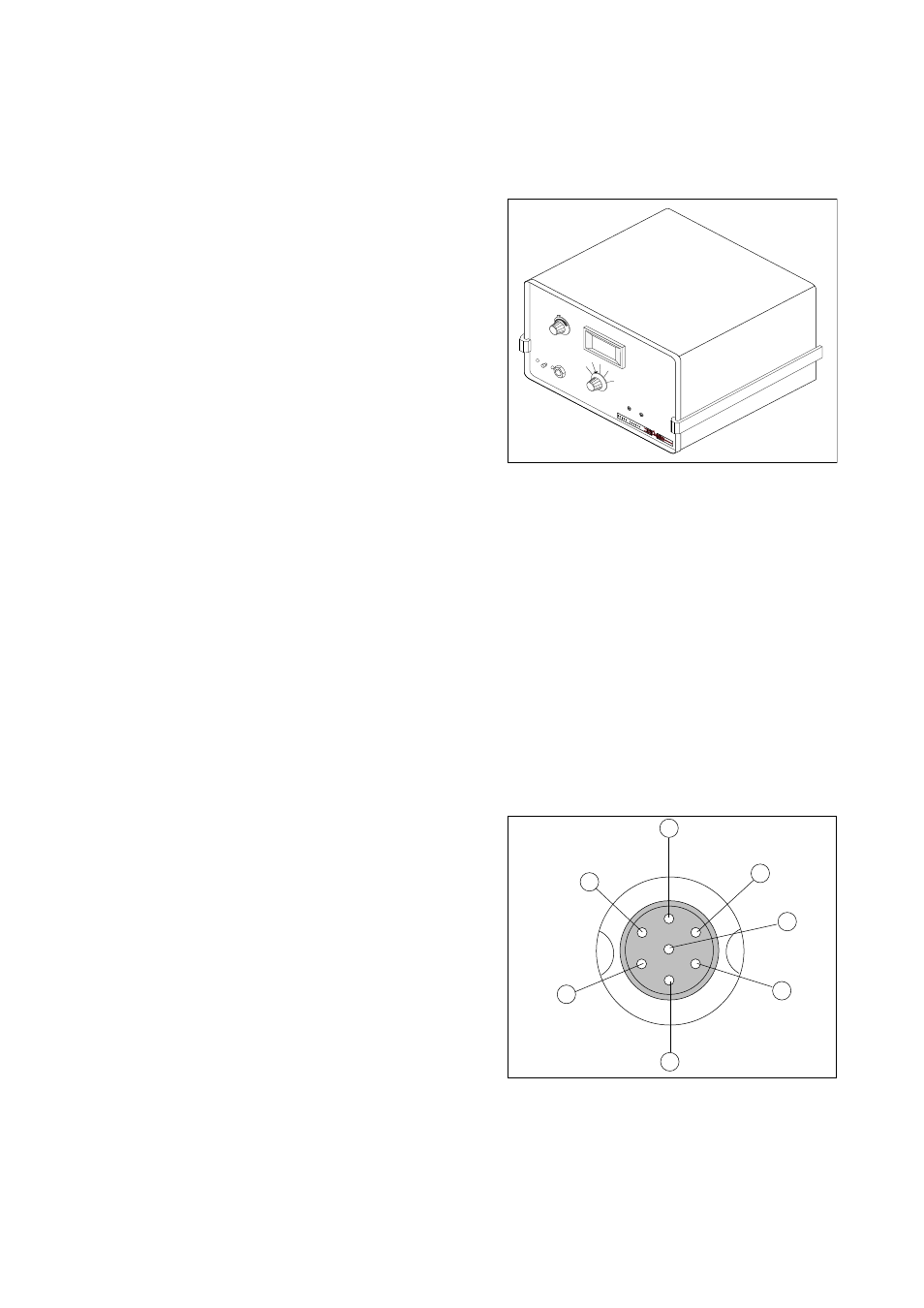

Fig.11: TCU151 temperature controller
1
2
1
7
3
4
5
6
Fig.12: TCU151 Peltier Connector
