Starter Kit Instruction Manual Description 16
4.4 Laboratory Laser Housing(LLH100)
4.4.1 Description
The Laboratory Laser Housing is a Thermo-Electric
cooled box which encapsulates the Quantum Cas-
cade Laser.
The internal temperature is controlled by a PT-
100 sensor and heat is dissipated by air or water.
The LLH100 is designed to ease the laser installa-
tion or replacement.

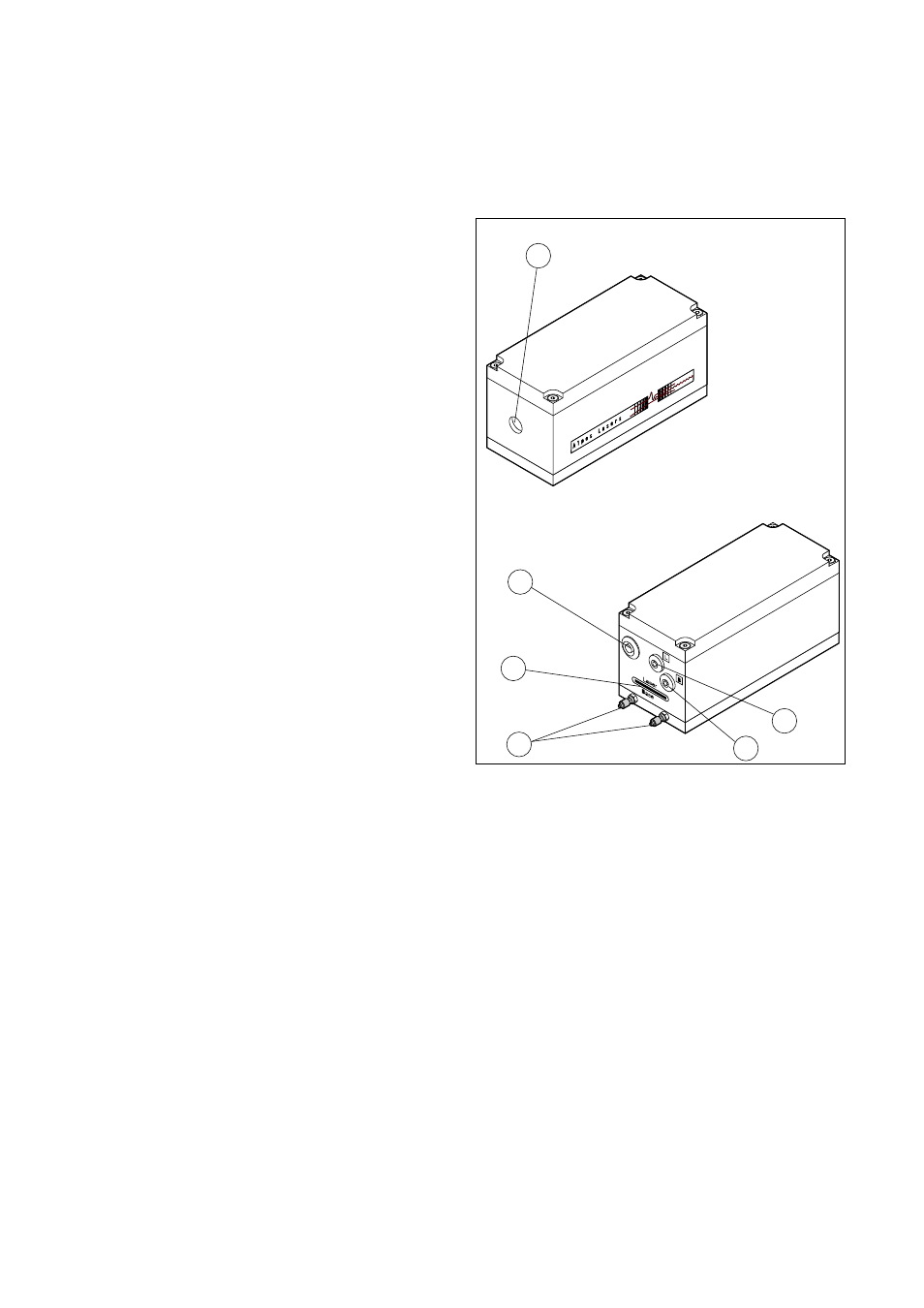

LLH100 external view description
The Laboratory Laser Housing is composed of the
following items:
(1) ZnSe coated laser beam window
(2) Peltier connector and PTC sensor
(3) Low impedance connector
(4) Cooling water flow fittings (recommended
flow: 0.25 l/min @ 10-20
◦ C)
(5) Monitoring base receptacle connector
(6) Monitoring laser connector
2
1
3
4
6
5
177
Fig.6: Laboratory Laser Housing front and rear view
