Okilan 6200e plus network print server – Oki 2024/2024e User Manual
Page 230
ES 2024/2024e Accessories • 230
OKILAN 6200E PLUS NETWORK PRINT SERVER
The print server is an Ethernet board that supports EtherTalk, TCP/
IP, IPX/SPX, IPP, SNMP, NDS and NetBEUI protocols. It can be
connected using 10/100BASE-TX.
1. Turn off the printer and disconnect the power cable.

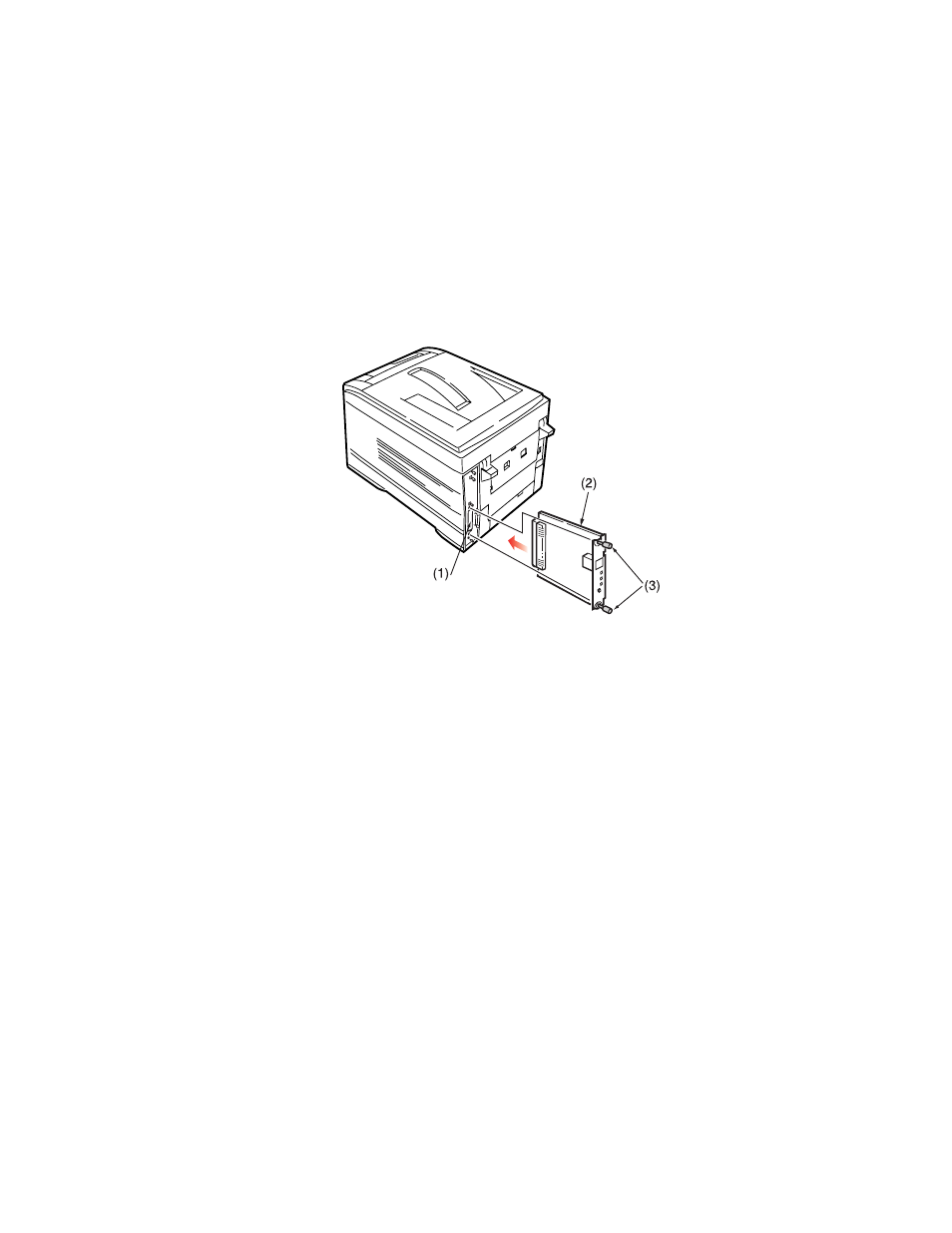

network card install.eps
2. Loosen the two screws and remove the cover (1) from the
lower option slot.
3. Insert the network interface card (2) into the option slot and
secure with the two thumbscrews (3).
4. Connect the power cable and switch on the printer.
5. Print a MenuMap as follows to confirm the network interface
card is correctly installed.
a. Press the MENU button twice to access the
INFORMATION
MENU
.
b. Press the SELECT button and confirm that
PRINT MENU MAP
is displayed.
c. Press the SELECT button to print the MenuMap.
d. Check that NETWORK MENU appears on the MenuMap.
