III - 7
Section 3 - Chapter 2 - OkiNet for NetWare
OKI OkiLAN 6120e User’s Guide
NetW
are
Running OkiNet for NetWare

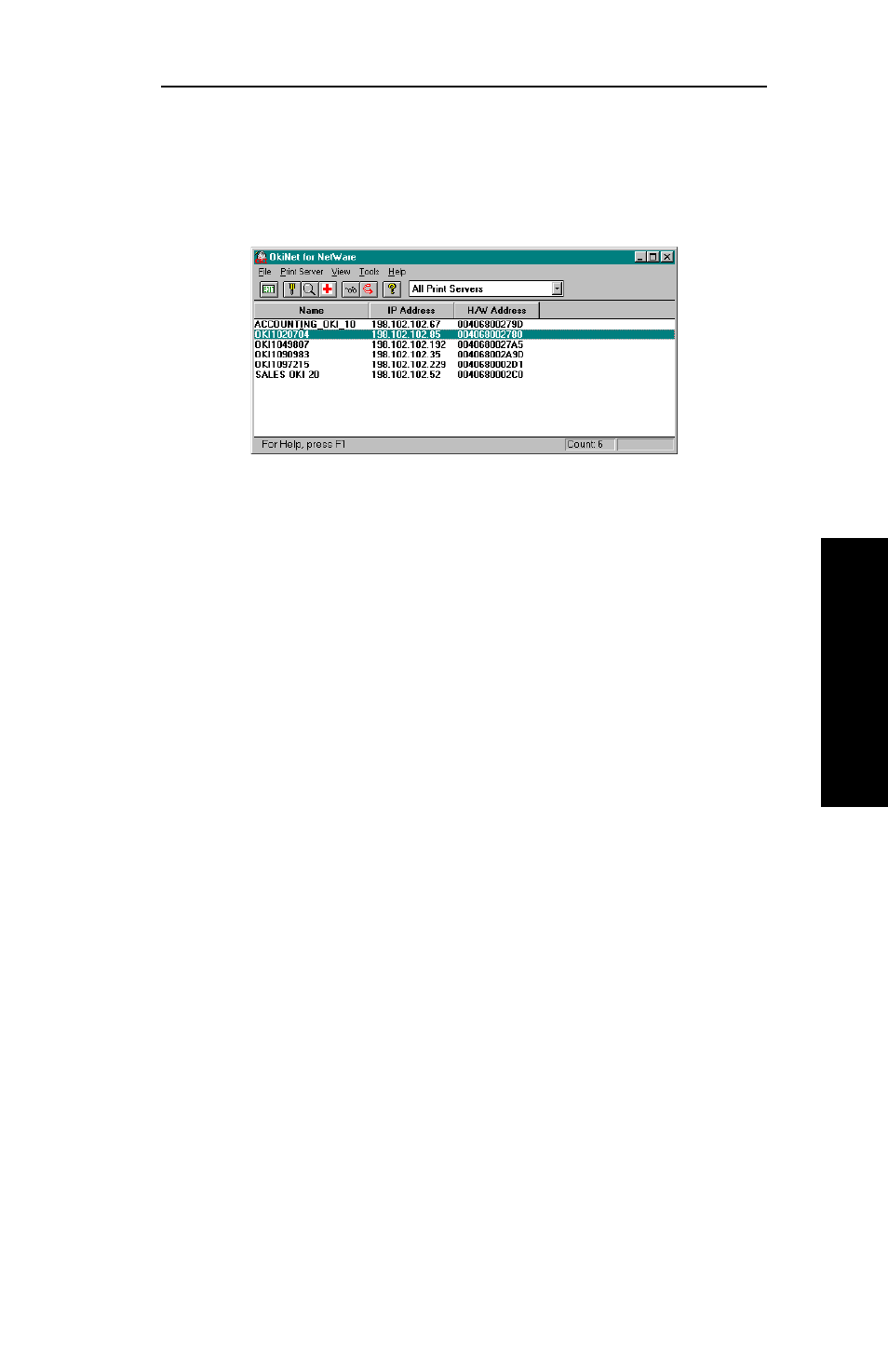

To run the utility, double-click on the OkiNet icon. The
main OkiNet for NetWare screen will display.
By default, the All Print Servers view is selected and all
print servers attached to the network from which the
OkiNet utility is running are listed.
Configuring the OkiLAN 6120e Using
OkiNet for NetWare
The following steps outline how to configure an
OkiLAN 6120e.
1. Select the OkiLAN 6120e you wish to configure.
2. Select Configuration from the Print Server menu or
select the Configuration icon on the toolbar.
3. Set the appropriate configuration by choosing the
applicable file folder tabs.
The following settings are configurable based on the
capabilities of the OkiLAN 6120e:
• NetWare • Output Port
• NetWare Queues • SNMP
• NetWare Port • VINES *
• TCP/IP • EtherTalk
• Protocols • SNMP Traps
* May apply to other OkiLAN print server models.
