Adjusting the Trend Recording Format (TREND, Dot-printing

model)

This recorder prints in FIX or AUTO mode.
In FIX mode, dot printing is performed with a constant interval regardless of the chart
speed (approx. 20 sec).
AUTO mode is provided to prevent the chart from being damaged during repetitive dot
printing. This mode is useful for low chart speeds. The chart is protected from damage
because the printout timing changes with the chart speed (approx. 20 to 90 sec).

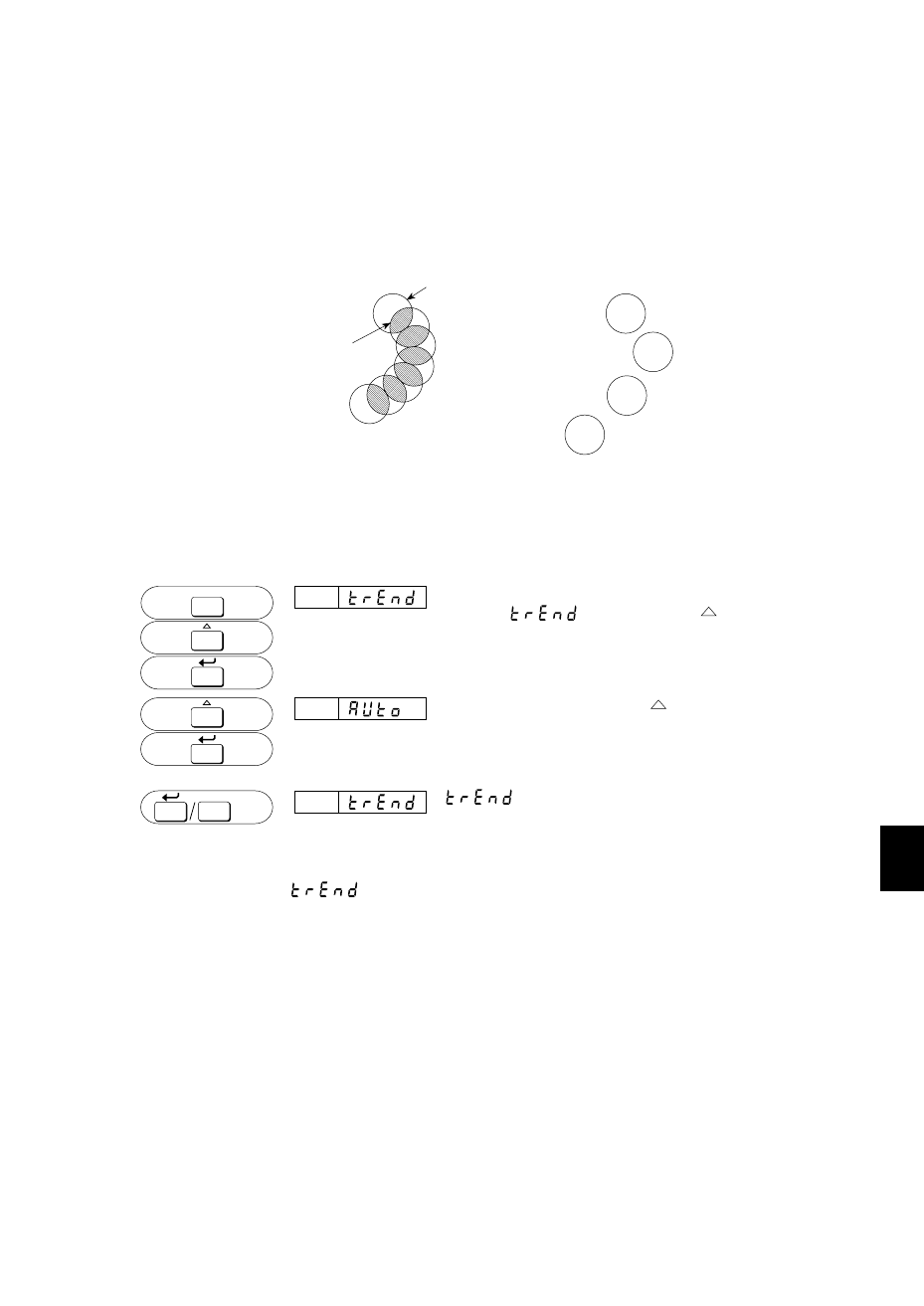

Single printout
(0.5mm dia.)

Repetitive dot
printing

FIX

AUTO

The initial value is ‘AUTO’. To set the trend recording mode, proceed as follows:

Key Operation

Indication

Discription

Press the [DISP] key for three seconds to enter the SET mode.
Select the [

] display using the [

] key, and press

the [ENT] key.

Specify AUTO or FIX using the [

] key. Then press the

[ENT] key.

[

] is displayed and the setting is completed. Press the

[DISP] key for three seconds to return to the OPERATION
mode.

NOTE

If you press the [ESC] key in the middle of setting, the indication returns to the

[

] and already set data will be aborted.
