Options
34
1
IIII

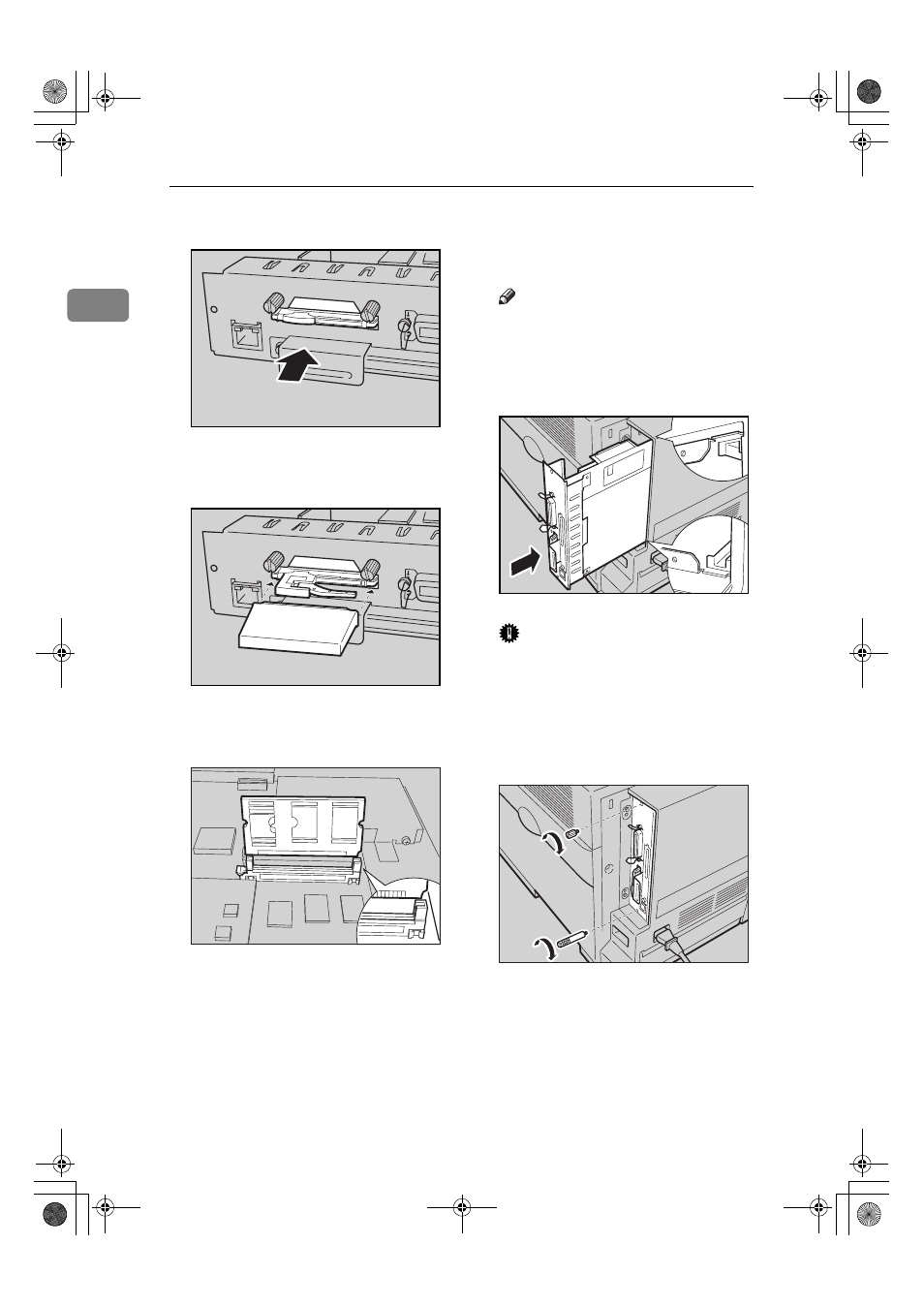

Press the antenna to extend it.
JJJJ
Attach the antenna cap over the
antenna.
KKKK
Adjust the Bluetooth module to
the slot, and then insert vertically.
LLLL
Align the controller board to the
top and bottom rails, and then
push in slowly until it stops.
Note
❒ When installing other options
on the controller board, do not
close the controller board, but
go to the steps for installing the
option.
Important
❒ The printer may not work prop-
erly if the controller board is not
set properly.
MMMM
Fasten the controller board to the
printer with the two screws re-
moved in step
CCCC .
ZHBPA530E
ZHBPA920E
ZHBP540E
ZHBO550E
ZHBPB560E
