1394 Interface Unit Type 4510

GGGG

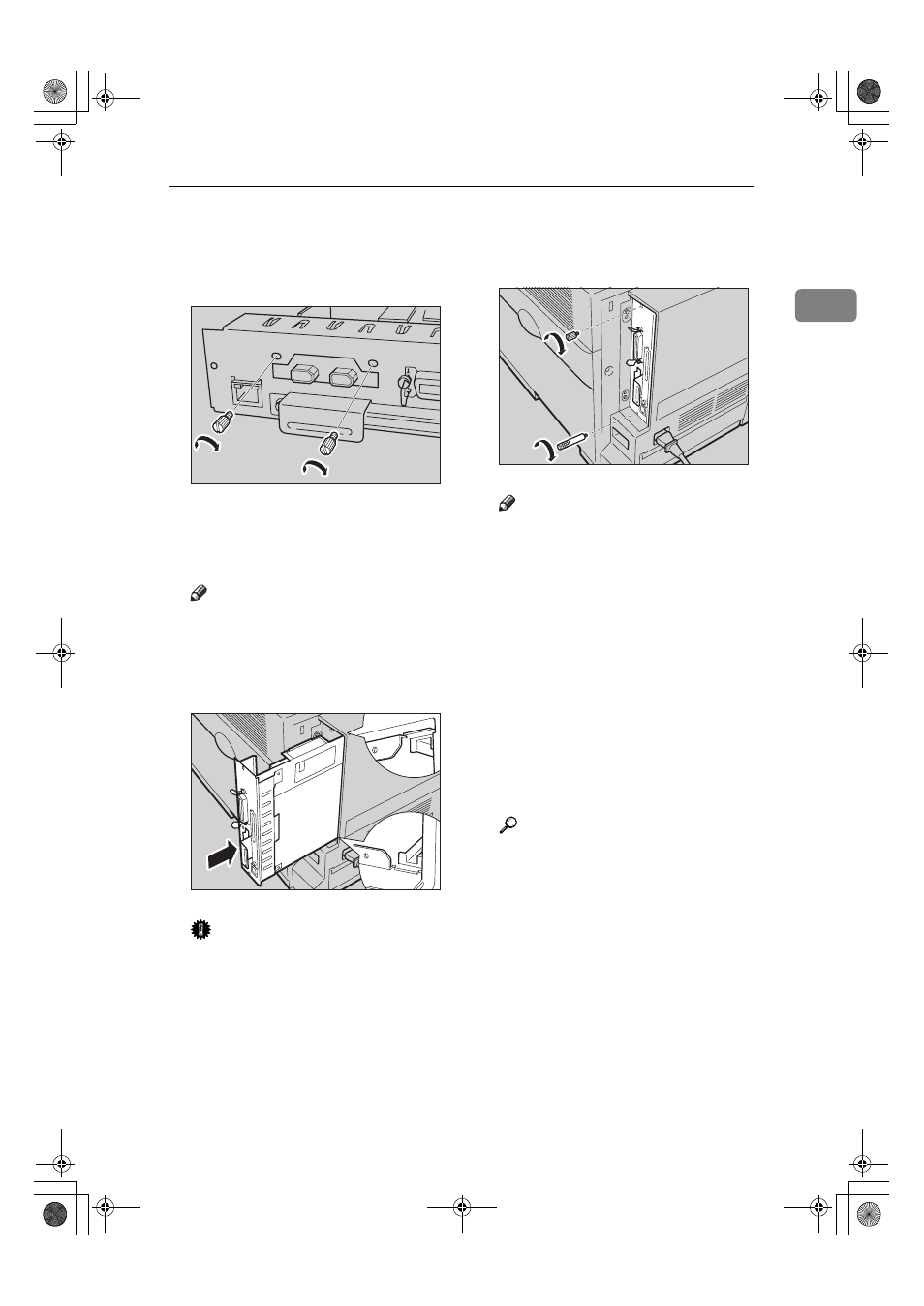

Fasten the 1394 Interface Unit on
the controller board using the
screws that you removed in step

EEEE

HHHH

Align the controller board to the
top and bottom rails, and then
push in slowly until it stops.

Note

❒ When installing other options

on the controller board, do not
close the controller board, but
go to the steps for installing the
option.

Important

❒ The printer may not work prop-

erly if the controller board is not
set correctly.

IIII

Fasten the controller board to the
printer with the two screws that
you removed in step

CCCC

Note

❒ After finishing installation, you

can check whether the 1394 In-
terface Unit is installed proper-
ly. Print the configuration page
f ro m t h e " L i st / Te s t P ri n t "
menu. If it is installed properly,
you will see "IEEE1394" for
"Controller Option".

❒ If the 1394 Interface Unit is not

installed properly, reinstall it
from step

. If you cannot in-

stall it properly even after at-
tempting reinstallation, contact
your sales or service representa-
tive.

Reference

See "Making Printer Settings
with the Control Panel" in the
Administrator Reference for
printing the configuration page.

ZHBPB060E

ZHBP070E

ZHBP010E
