Bluetooth Interface Unit Type A
33
1
DDDD

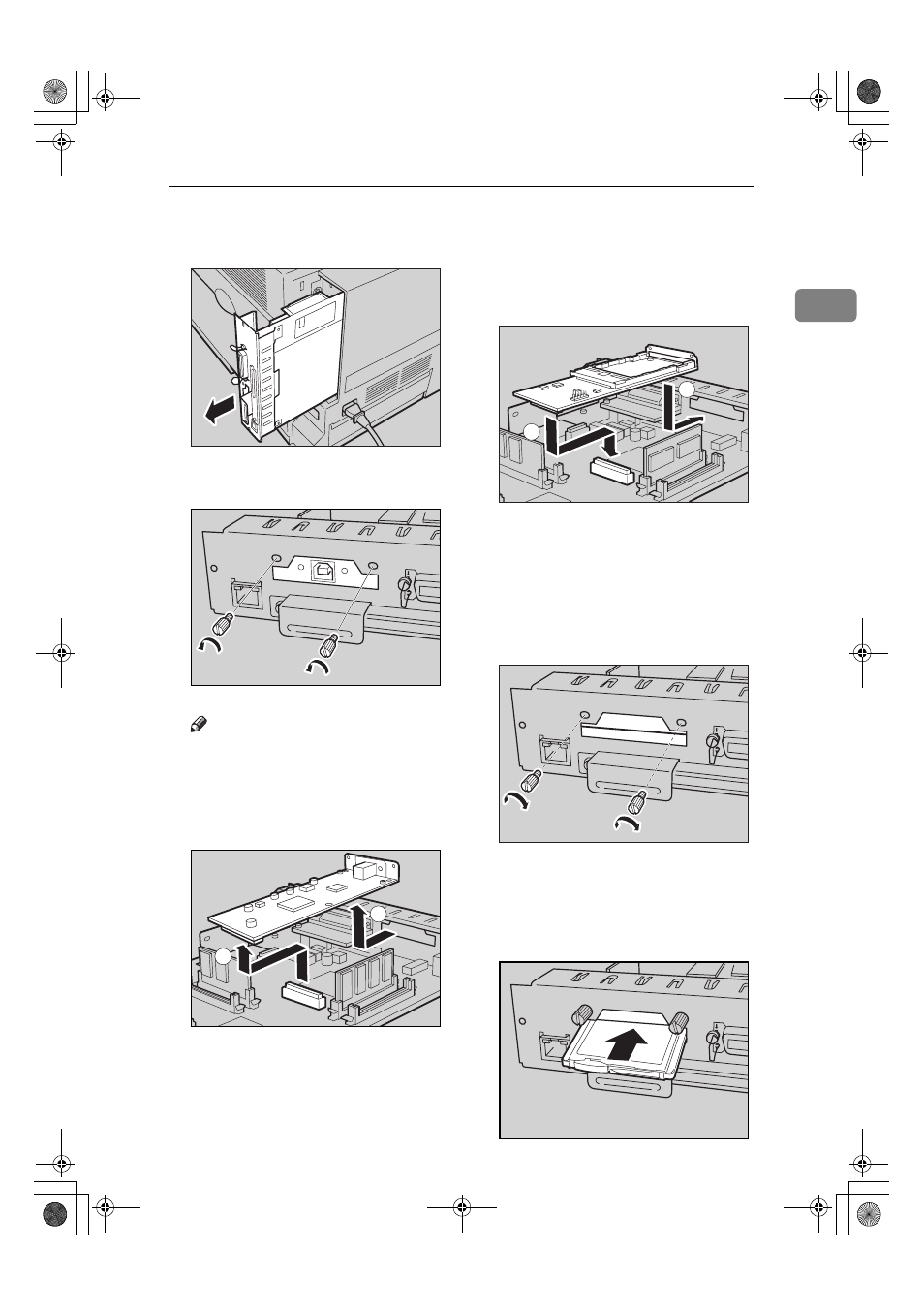

While holding the handle, pull
out the controller board slowly.
EEEE
Remove USB2.0 Interface Unit.
Note
❒ The removed screws will be
used in step G
❒ Lift the end of USB2.0 Interface
Unit (
A), and then remove it
from the controller board (
B).
FFFF
Attach the Bluetooth Interface
Unit. Insert the end of the Blue-
tooth Interface Unit to the open-
ing (
A A A A), and then push down
until it clicks (
B B B B).
Confirm that the Bluetooth Inter-
face Unit is firmly connected to the
controller board.
GGGG
Fasten the Bluetooth Interface
Unit on the controller board using
the screws removed in step
EEEE .
HHHH
Insert the card slowly into the
Bluetooth Interface Unit with its
side labeled "INSERT" facing up
until it stops.
ZHBP020E
ZHBPB460E
ZHBP450E
1
2
ZHBP190E
1
2
ZHBP200E
ZHBP530E
