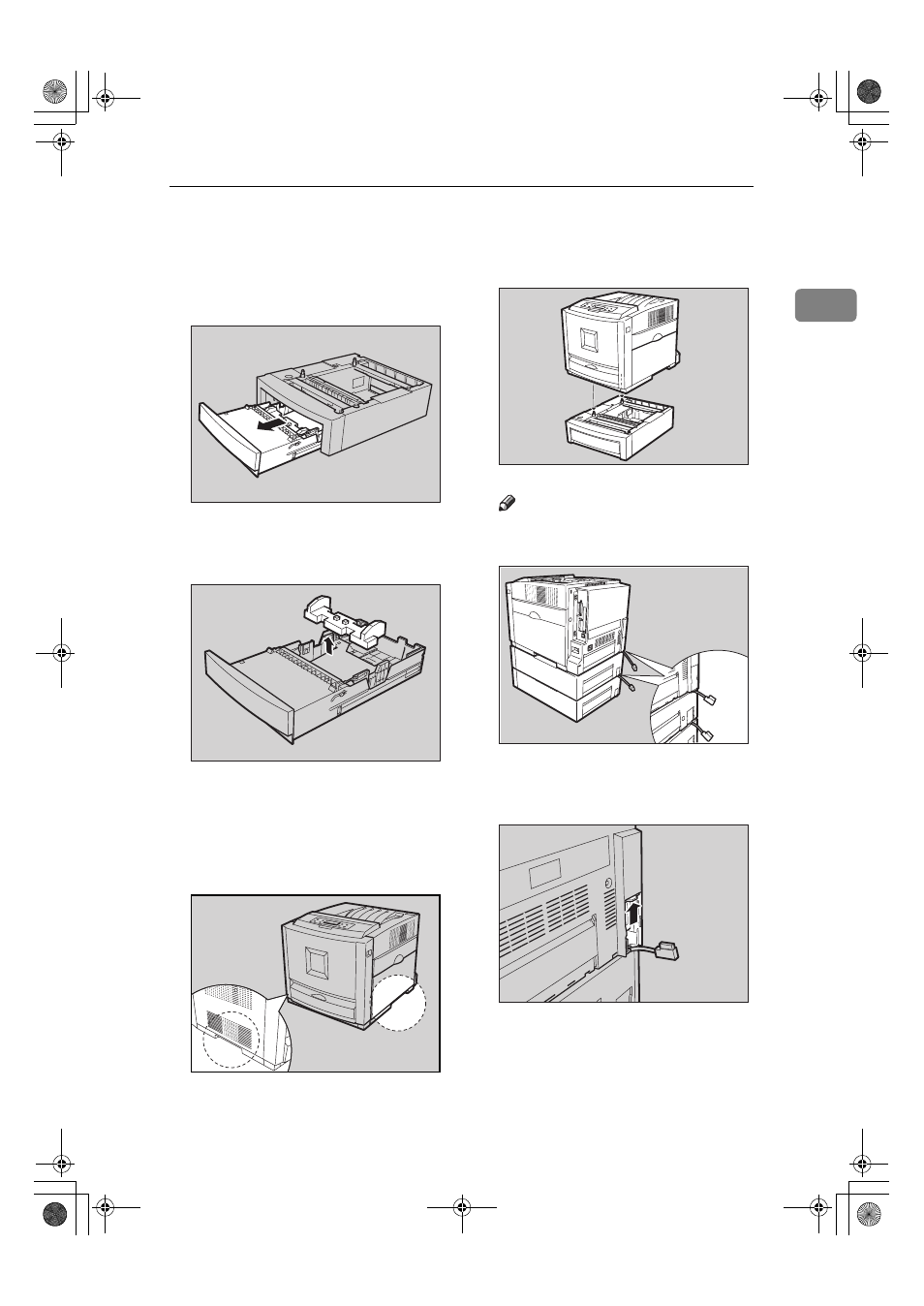

PAPER FEED UNIT Type 3000
9
1
DDDD
Pull the paper tray out of the Pa-
per Feed Unit until it stops. After
that, lift it slightly, and then pull
it out completely. Place it on a flat
surface.
EEEE
Remove the adhesive tape and
packing material.
FFFF
Slide the paper tray completely
into the Paper Feed Unit.
GGGG
Lift the printer using the inset
grips on both sides of the printer.
HHHH
Align the printer to the two up-
right pins on the Paper Feed Unit
and then lower it slowly.
Note
❒ Be sure not to place the printer
on the Paper Feed Unit cable.
IIII
Open the connector cover of the
printer.
ZHBYA930E
ZHBYA950E
ZHBH750E
ZHBP340E
ZHBP390E
ZHBP360E
