ROBERTS GOR DON ® BH- S ERI E S S UBM IT TAL S HE E T
© 2004 Roberts-Gordon BEFORE IN ST AL LATI ON AND OPER ATI ON OF HEATI NG E QUIPMENT, READ AND U NDERSTAND T HE INSTALL AT ION, OPERATIO N AND SERVICE MANUAL .
APPL ICATION S, ENGI NEE RING AND DET AI LE D GUID ANCE ON SYST EMS DE SIGN, INSTAL LATI ON AND PRODUCT PE RFORMANCE IS AVAI LABLE UPON RE QUEST. ROBERT S GORDON
® PRODUCT S ARE T O BE
INSTAL LE D ONL Y IN ACCORDANCE WI TH L OCAL L AWS, CODES AND REGUL AT IONS, AND ONLY BY A CONT RACT OR QUALI FIE D I N THE I NST ALL AT ION AND SE RVICE OF GAS-FIRE D HE AT ING EQUI PME NT.

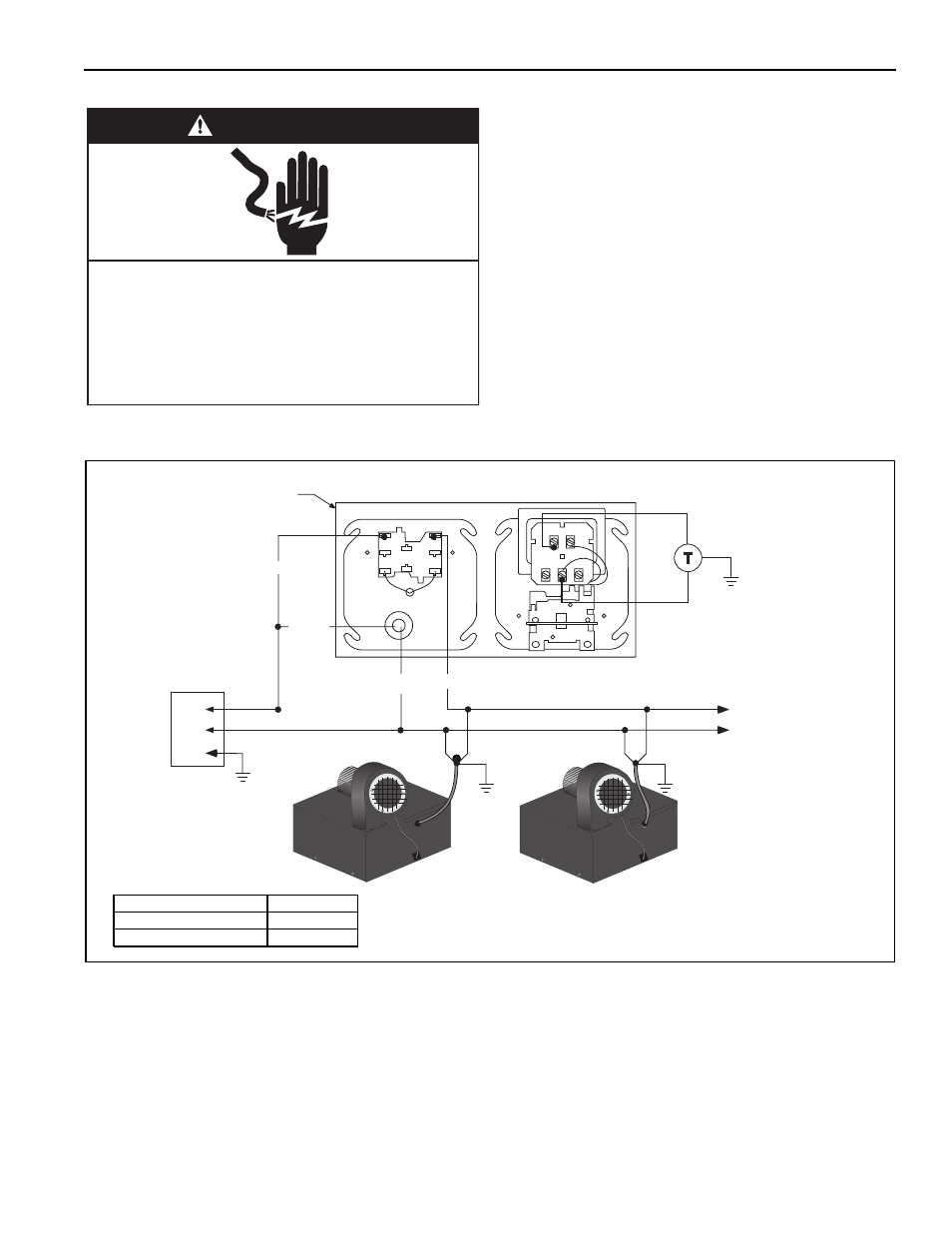

Low Voltage Thermostat Wiring
WARNING
Electrical Shock Hazard
Disconnect electrical power and gas supply before
servicing.
This appliance must be connected
to a properly grounded electrical source.
Failure to follow these instructions can result in
death or electrical shock.
R C
W G Y
1
2
3
4
5
6
COIL
L1
L2
Gnd.
N H
Gnd.
N H
Gnd.
Additional
Burners
120V-60Hz
Supply Circuit
Low Voltage Thermostat
Burner 1 Burner 2
Maximum 8 Burners
Per Relay
Black
SPDT Transformer Relay
P/N 90417600
Black
Red White
COIL
FRONT VIEW BACK VIEW
Descri ption Part Number
SPDT Transformer Relay 90417600
Low Voltage Thermost at 90425100
