ROBERTS GORDON ® BH- S ERI E S S UBM IT TAL S HE E T
© 2004 Roberts-Gordon BEFORE IN ST AL LATI ON AND OPER ATI ON OF HEATI NG E QUIPMENT, READ AND U NDERSTAND T HE INSTALL AT ION, OPERATIO N AND SERVICE MANUAL .
APPL ICATION S, ENGI NEE RING AND DET AI LE D GUID ANCE ON SYST EMS DE SIGN, INSTAL LATI ON AND PRODUCT PE RFORMANCE IS AVAI LABLE UPON RE QUEST. ROBERT S GORDON
® PRODUCT S ARE T O BE
INSTAL LE D ONL Y IN ACCORDANCE WI TH L OCAL L AWS, CODES AND REGUL AT IONS, AND ONLY BY A CONT RACT OR QUALI FIE D I N THE I NST ALL AT ION AND SE RVICE OF GAS-FIRE D HE AT ING EQUI PME NT.

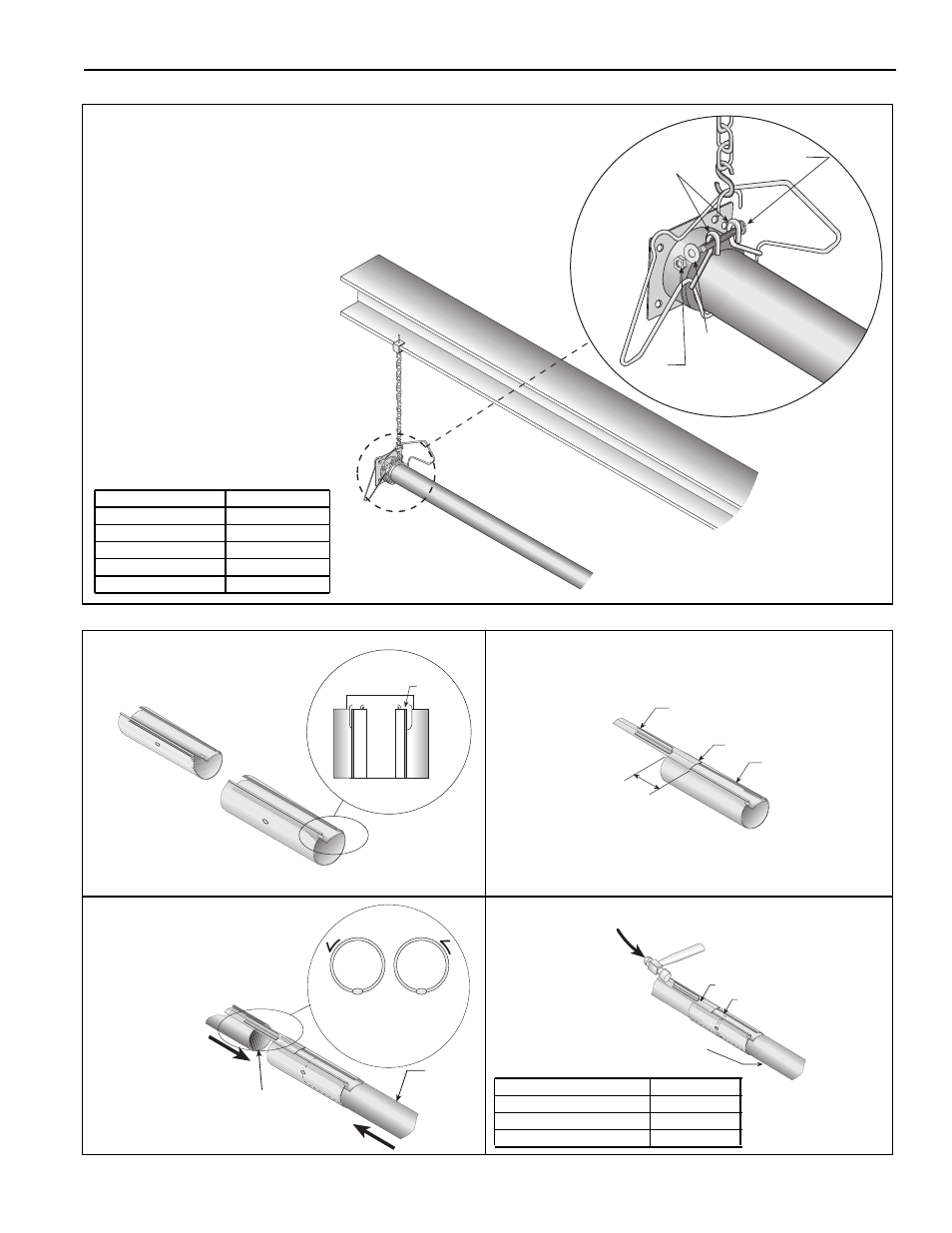

Tube Clamp Package Installation
Coupling and Tube Assembly
Flat
Washer
Nut
(Torque 120 in/lb
13.56 Nm)
Tube Clamp
Bolt
Description Part Number
Tube Clamp Package 01318901
Tube Clamp 01396801
Bolt 97113940
Flat Washer 95211600
Nut 92113900
Tube
Tube
Orient coupling so that
the impact block is in the
2:00 or 10:00 o’clock
positions
Closed
Open
Tab
3" (8 cm) to
4" (10 cm)
Slide Bar/Coupling Lock
Coupling
Wide end
Coupling
Tube
Slide Bar/Coupling Lock
A Close coupling
with tab B Start Slide bar/Coupling Lock
onto coupling
C Insert tubes into coupling D Tighten coupling to join tubes
Descr ipti on Part Number
Coupling 01329600
Slide bar/Coupling Lock 01329700
Tube 91409XXX
