ROBERTS GORDON ® BH- S ERI E S S UBM IT TAL S HE E T
© 2004 Roberts-Gordon BEFORE IN ST AL LATI ON AND OPER ATI ON OF HEATI NG E QUIPMENT, READ AND U NDERSTAND T HE INSTALL AT ION, OPERATIO N AND SERVICE MANUAL .
APPL ICATION S, ENGI NEE RING AND DET AI LE D GUID ANCE ON SYST EMS DE SIGN, INSTAL LATI ON AND PRODUCT PE RFORMANCE IS AVAI LABLE UPON RE QUEST. ROBERT S GORDON
® PRODUCT S ARE T O BE
INSTAL LE D ONL Y IN ACCORDANCE WI TH L OCAL L AWS, CODES AND REGUL AT IONS, AND ONLY BY A CONT RACT OR QUALI FIE D I N THE I NST ALL AT ION AND SE RVICE OF GAS-FIRE D HE AT ING EQUI PME NT.

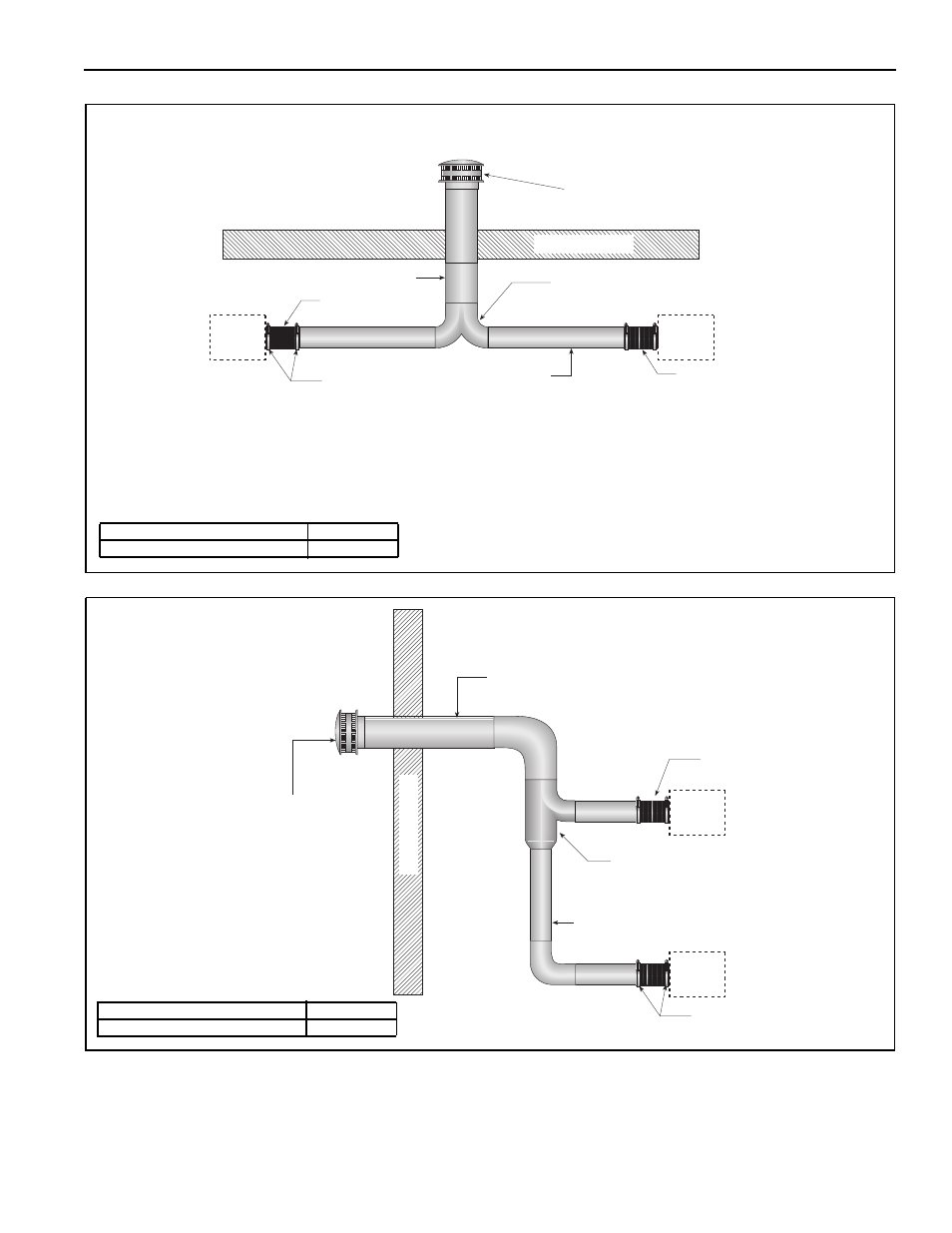

Vertical Outside Air Supply for Double Heater Installation
Horizontal Outside Air Supply for Double Heater Installation
Sweeping 'T'
Connection
Outside Wall
6" (15 cm) Single Wall Pipe
Vent Cap
Outside Wall
4" (10 cm)
Single Wall Pipe
Band Clamp
(recommended)
Burner Burner
Flex Hose
(recommended)
Flex Hose
(recommended)
Descri ption Part Num ber
Vent Cap 6" (15 cm) 90502302
Sweeping 'Y'
Connection
Vent Cap
O
utside
Wall
4" (10 cm) Single Wall Pipe
(Seal All Joints)
6" (15 cm) Single Wall Pipe
Flex Hose
(recommended)
Band Clamp
(recommended)
Burner
Burner
Description Part Number
Vent Cap 6" (15 cm) 90502302
