ROBERTS GORDON ® BH- S ERI E S S UBM IT TAL S HE E T
© 2004 Roberts-Gordon BEFORE IN ST AL LATI ON AND OPER ATI ON OF HEATI NG E QUIPMENT, READ AND U NDERSTAND T HE INSTALL AT ION, OPERATIO N AND SERVICE MANUAL .
APPL ICATION S, ENGI NEE RING AND DET AI LE D GUID ANCE ON SYST EMS DE SIGN, INSTAL LATI ON AND PRODUCT PE RFORMANCE IS AVAI LABLE UPON RE QUEST. ROBERT S GORDON
® PRODUCT S ARE T O BE
INSTAL LE D ONL Y IN ACCORDANCE WI TH L OCAL L AWS, CODES AND REGUL AT IONS, AND ONLY BY A CONT RACT OR QUALI FIE D I N THE I NST ALL AT ION AND SE RVICE OF GAS-FIRE D HE AT ING EQUI PME NT.

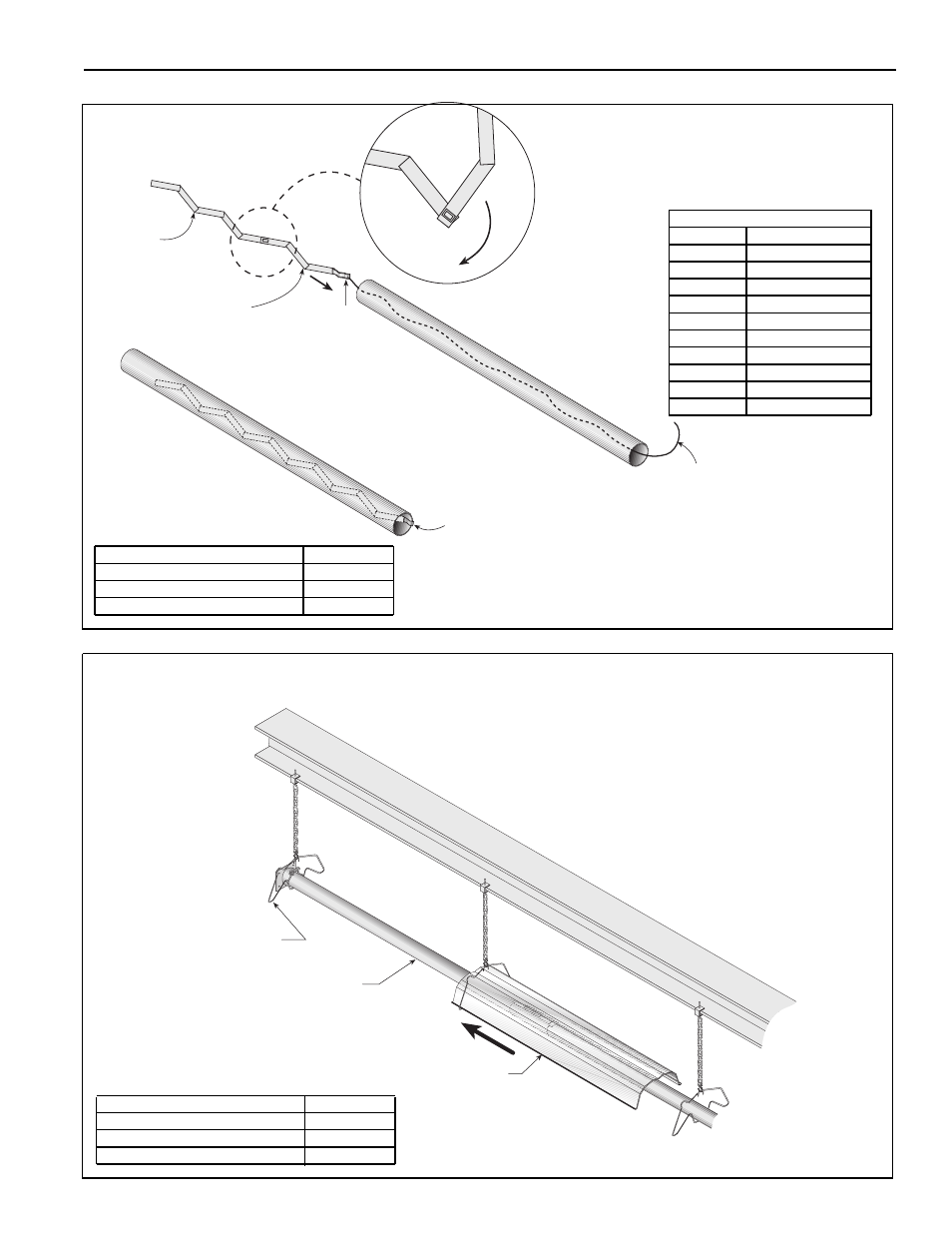

Turbulator Installation
Reflector Installation
T
w
is
t
Pull String
Tab
Fold tab around outside
of tube nearest to the vent to hold turbulator
in place. Where a vent sleeve
is used, do not fold tab.
Turbulator
2.5' Section
Turbulator
Adapter
Description Part Number
Turbulator Adapter 03051503
Turbulator 2.5’ Sect ion 03051504
Tube 91409XXX
Turbulator must be installed in the last
standard section of tube. Turbulator is
not required on the BH-125/150/175/200.
Turbulator Install ation
Model Tube Secti on
BH-40 1st 10’ Section
BH-60 2nd 10’ Sect ion
BH-80 2nd 10’ Sect ion
BH-100 3rd 10’ Section
BH-115 3rd 10’ Section
BH-125 N/A
BH-140 4th 10’ Sect ion
BH-150 N/A
BH-175 N/A
BH-200 N/A
Hanger
Burner Tube
Reflector
Descri ption Part Num ber
Tube/ Reflector Hanger 03090100
Burner Tube 03051XXX
Ref lector 02750303
NOTE: All tube surfaces must be covered
by a reflector, except for a U-Tube.
