Item Description
Enable WDS
Click the check box to enable wireless distribution system. Refer to 4.21 What is
Wireless Distribution Svstem (WDS)?
MAC Address
Fill in the MAC address of AP to register the wireless distribution system access
capability.
Comment Fill in the comment tag for the registered AP.
Apply Changes Click the Apply Changes button to register the AP to new configuration setting.
Reset Click the Reset button to abort change and recover the previous configuration setting.
Set Security
Click button to configure wireless security like WEP(64bits), WEP(128bits), WPA(TKIP),
WPA2(AES) or None
Show Statistics It shows the TX, RX packets, rate statistics
Delete Selected
Click to delete the selected clients that will be removed from the wireless distribution
system.
Delete All Click to delete all the registered APs from the wireless distribution system allowed list.
Reset Click the Reset button to abort change and recover the previous configuration setting.
I WDS Security Setup
Requirement: Set [Wireless]->[Basic Settings]->[Mode]->AP+WDS
This page is used to configure the wireless security between APs. Refer to 3.3.6 Wireless Security Setup.

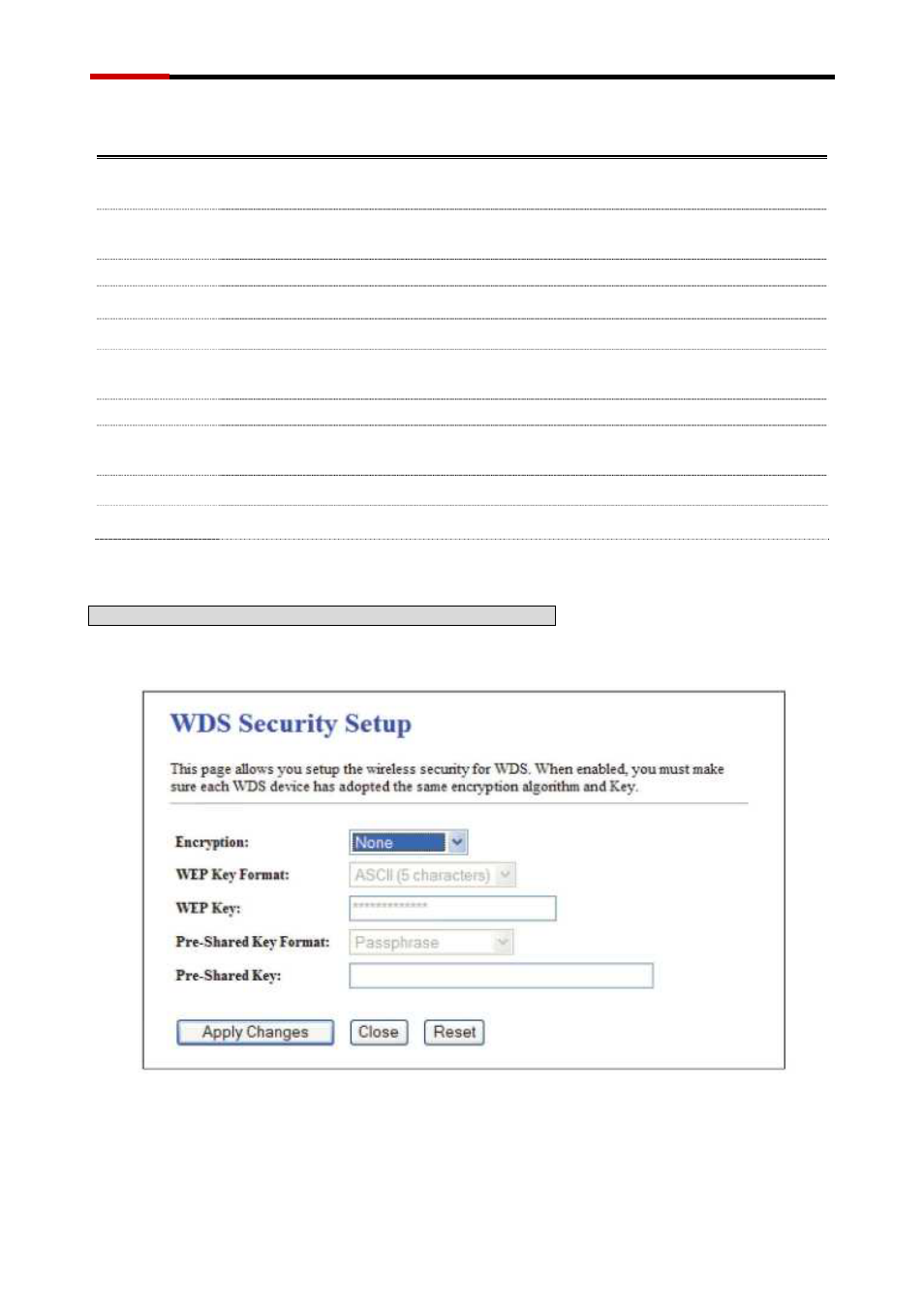

Screen snapshot - WPS Security Setup
