77
8.1.2 Project
The Project is the next item in the hierarchy below the Workspace. In the following example, the
Workspace is called “Industrial Controller” and there are two projects: the first is also called “Industrial
Controller” and the second is called “User Mode Reprogramming”.

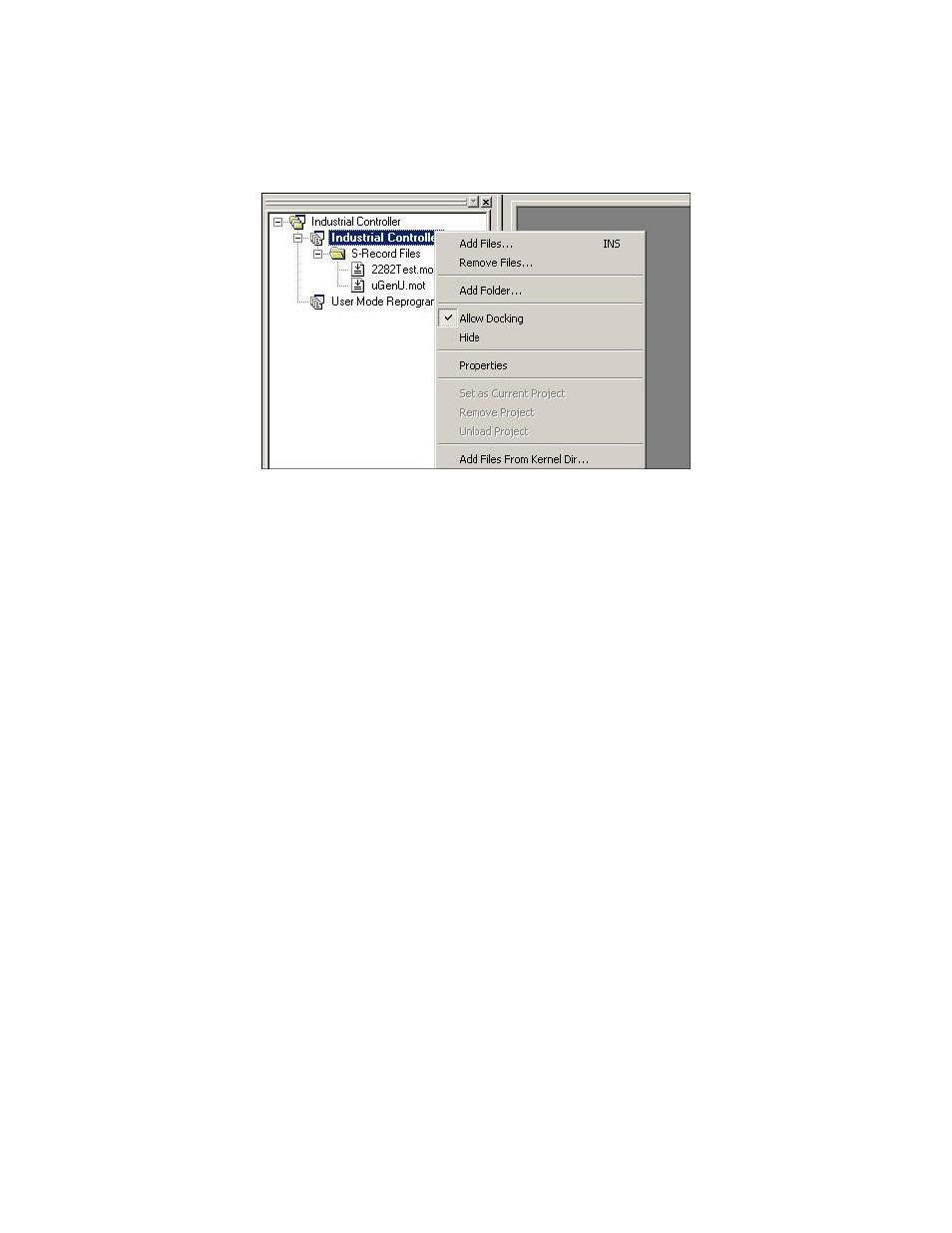

Figure 8-3 Workspace Project
In addition to the Allow Docking and Hidemenu items inherited from the workspace, the pop-up menu for
Projects has the following items:
8.1.2.1. Add Files...
Launches the ‘Open’ dialog box allowing the user to add S-Record files to the project.
8.1.2.2. Remove Files...
Launches a dialog to select the files to remove.
8.1.2.3. Add Folder...
Adds a folder to the Project
8.1.2.4. Allow Docking
See Section 8.1.1.2
8.1.2.5. Hide
See Section 8.1.1.3
8.1.2.6. Properties
Displays the project properties dialog. Note that this is not the same as the Flash Properties dialog which
can be reached by selecting Configure Flash Project from the FDT toolbar or device menu.
