36
3.5.9 Generic Boot – Setup Complete
Having selected the Clock Mode, the Generic wizard completes as below.

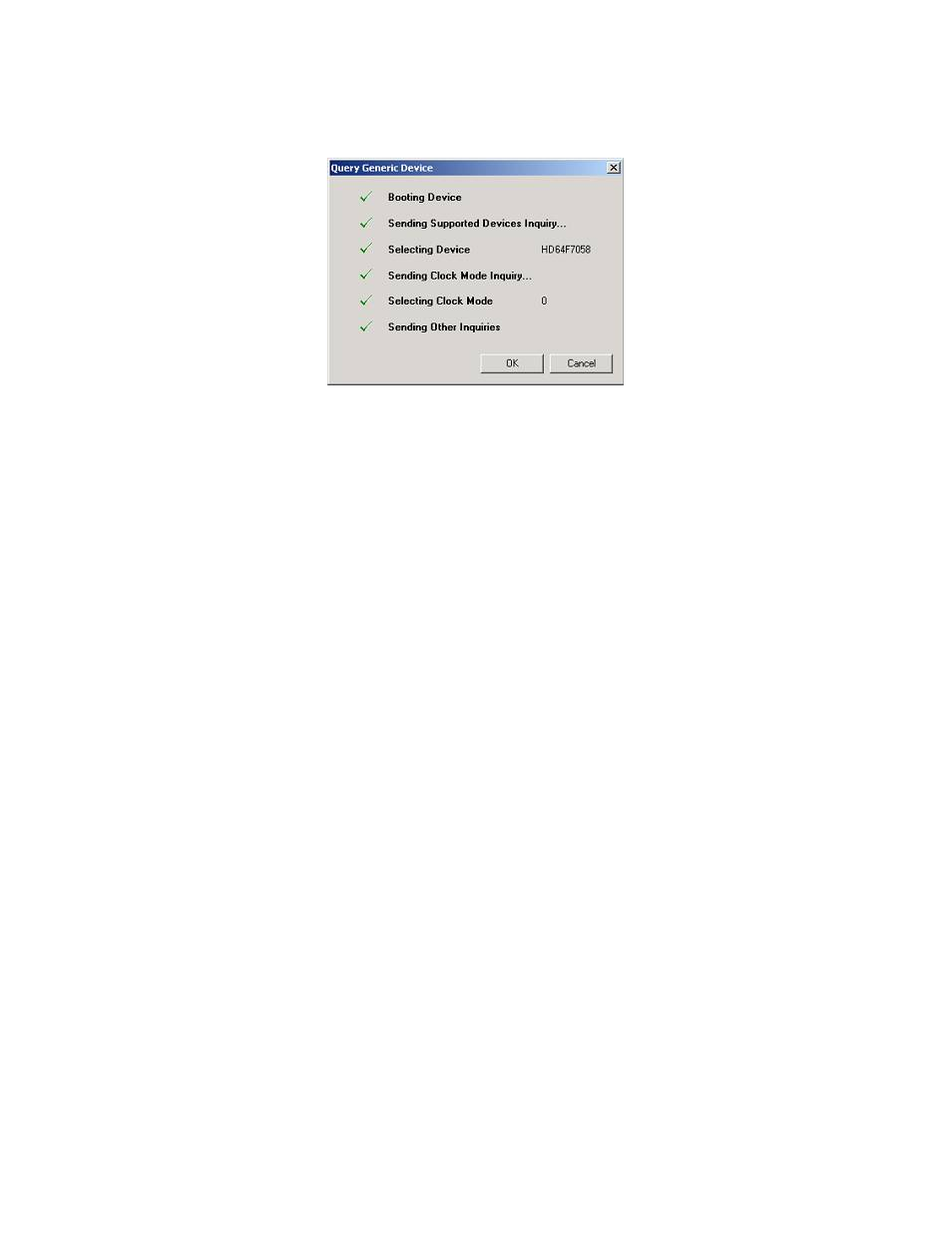

Figure 3-24 Generic Boot setup complete
The Project Wizard will then continue through the remaining pages
3.5.10 Generic Boot – Device Settings
Please Refer to Section 3.4.4
3.5.11 Generic Boot - Connection Type
Please Refer to Section 3.4.5
3.5.12 Generic Boot – Programming Options
Please Refer to Section 3.4.6
3.5.13 Generic Boot – Reset Pin Settings [FDM connection only]
Please Refer to Section 3.4.8
3.5.14 Generic Boot – Reinterrogate on connect option
The ‘Programmer’ tab of the ‘Flash Properties’ dialog allows the user to configure whether FDT should
reinterrogate the Generic device on each connection. The default is set to ‘No’, so after a connection has
been established once, FDT re-uses the data collected from the initial inquiry functions. If this option is
changed to ‘Yes’, FDT will interrogate the device for the device details each time it connects in Boot
Mode. This means that one Generic Boot project will work with any Generic Boot Device.
3.5.15 Prior Generic Device
Selection of the ‘Prior Generic Device’ device allows a connection to the last device configured using
‘Generic Boot Device’. It uses the .fcf file which was generated when first connecting using ‘Generic Boot
Device’.
