M30870T-EPB User’s Manual 3. Usage (Emulator Debugger)
REJ10J0482-0300 Rev.3.00 February 16, 2006

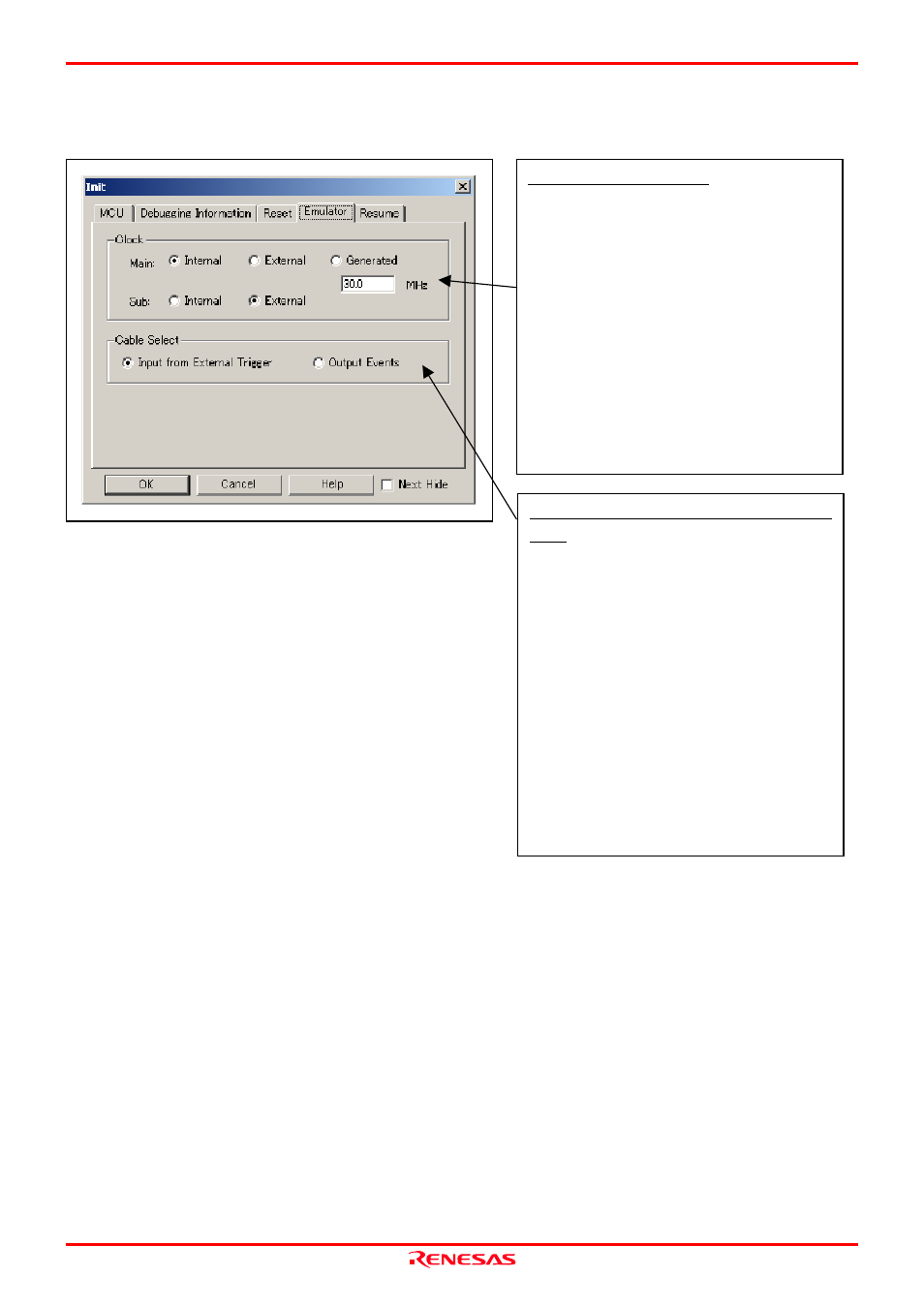

(4) Emulator tab
1. Specifying the target clock
Specifying the target clock
Specify the clock sources supplied to the MCU (main clock
and sub clock). Select the appropriate clock sources
according to the clock used by your target MCU.
- Internal (default)
EmulatorPC7501’s internal clock
- External
User system clock
- Generated
Clock created in PC7501
The option you have specified here remains effective the
next time you start up.
Selecting the event output/trigger input
cable
Select input/output of the event output/trigger input cable of
the PC7501.
- Input from External Trigger (default)
Inputs the external trigger from the cable
- Output Events
Outputs events from the cable
The option you have specified here is reflected at only
startup. However, if you reset the option in the Init dialog
box after starting up, it is not effective (reboot the PD308F).
“Input from External Trigger” is set at startup (the previous
setting becomes null).
