M30870T-EPB User’s Manual 2. Setup
REJ10J0482-0300 Rev.3.00 February 16, 2006
2) Replacing an Oscillator Circuit Board
Remove the four screws of both sides of this product and lift off the upper cover (see Figure 2.18).

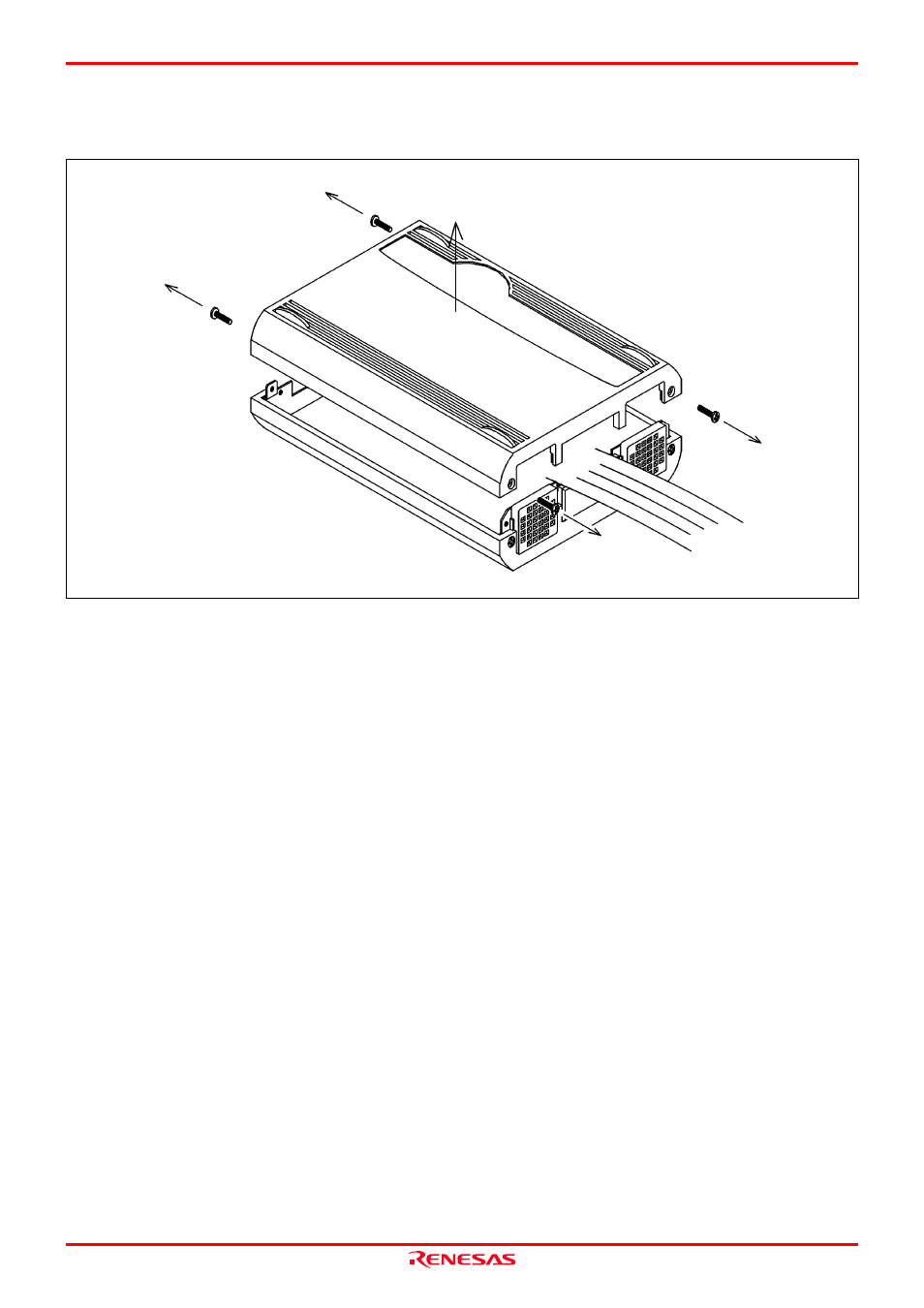

Figure 2.18 Removing the upper cover
