6. Connection Circuit Diagram of the M34502T-MCU
Figure 6.1 shows the connection circuit diagram of M34502T-MCU. This circuit diagram depicts the
M34502T-MCU connection centering on circuits connected to the target system. Emulator control
blocks and other similar circuits that are not connected to the target system are omitted in this diagram.

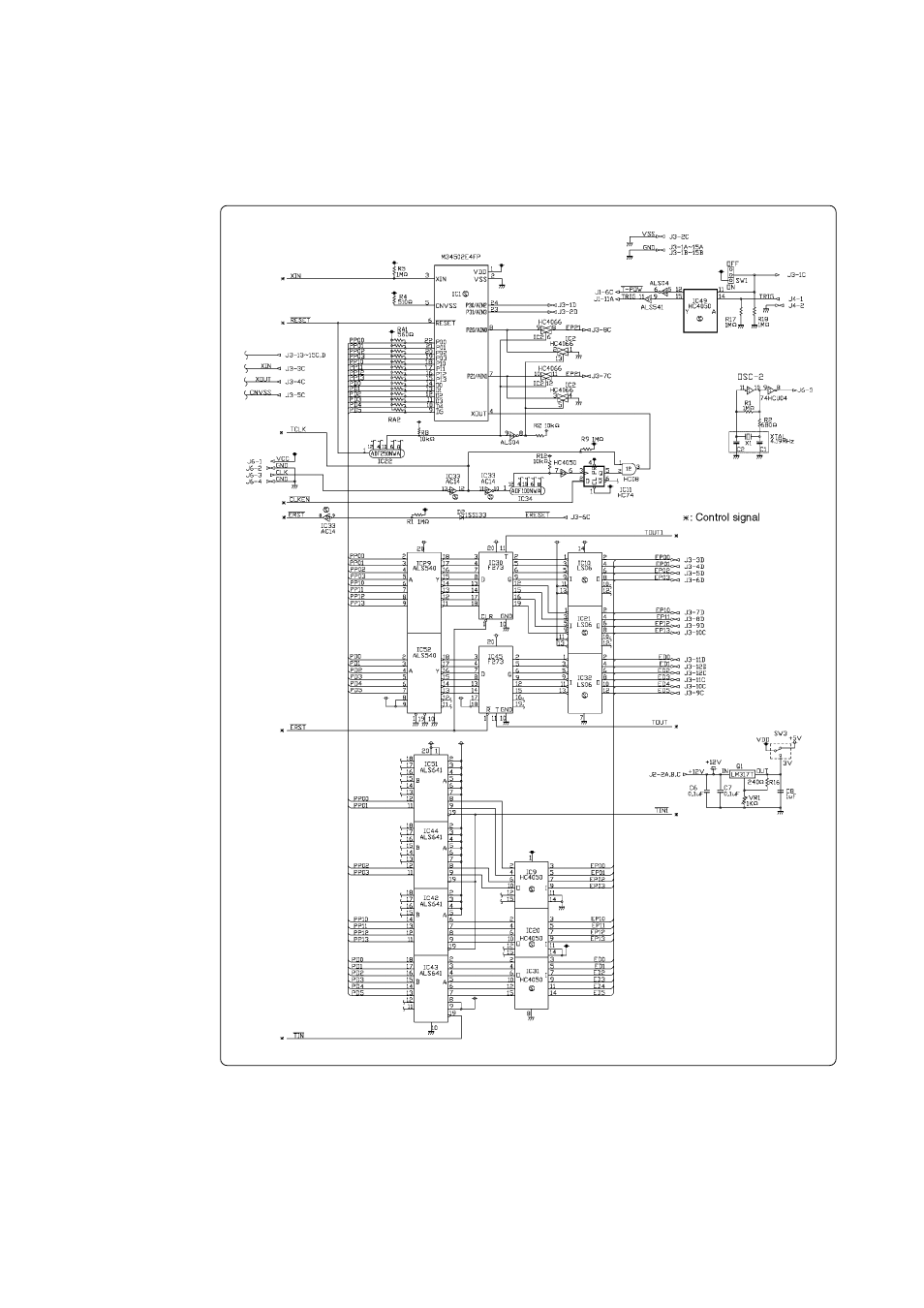

Figure 6.1 Connection circuit diagram of the M34502T-MCU
