Installation
20 Runco VX-2i Owner’s Operating Manual
3.4
Connections to the
VX-2i Proceed as follows to connect the VX-2i to your video sources, external controller(s) -- if
present -- and AC power.
When connecting your equipment:
• Turn off all equipment before making any connections.
• Use the correct signal cables for each source.
• Ensure that the cables are securely connected. Tighten the thumbscrews on
connectors that have them.
Connector Panel Access To access the connector panel, pull firmly on the cable access cover to open it.
Connecting the VX-2i to
Source Components
Connect your video sources to the VX-2i as shown and described in the sections that
follow.

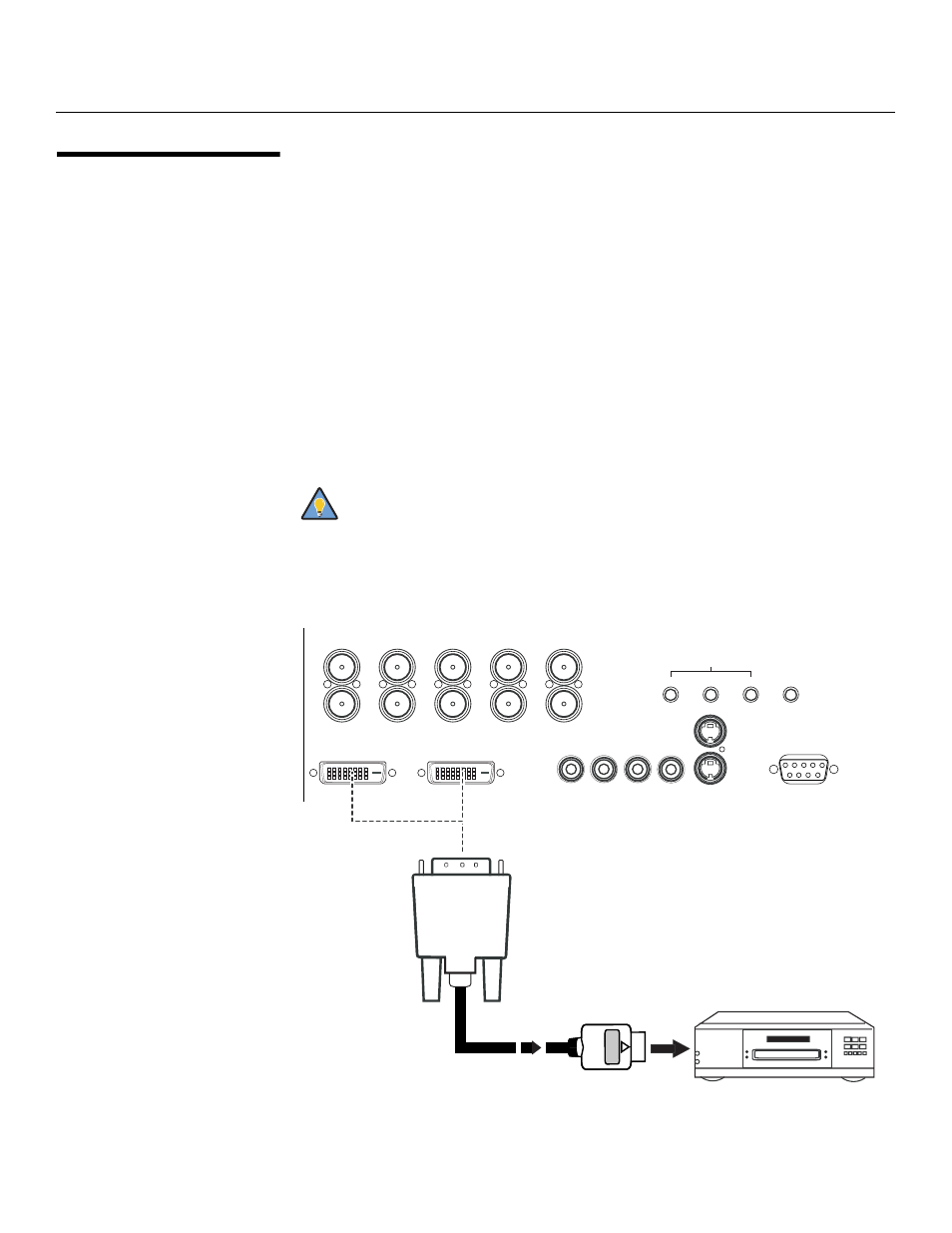

DVI Connections: See Figure 3-7.
Figure 3-7. DVI Source Connections
➤
➤
Use the DVI inputs whenever possible. This ensures the highest
video quality because the signal is carried in the digital domain
throughout the entire signal path, from source component output
into the projector.
