Runco VX-2i Owner’s Operating Manual
2.2
VX-2i Rear Panel
Figure 2-2 shows the VX-2i rear panel.

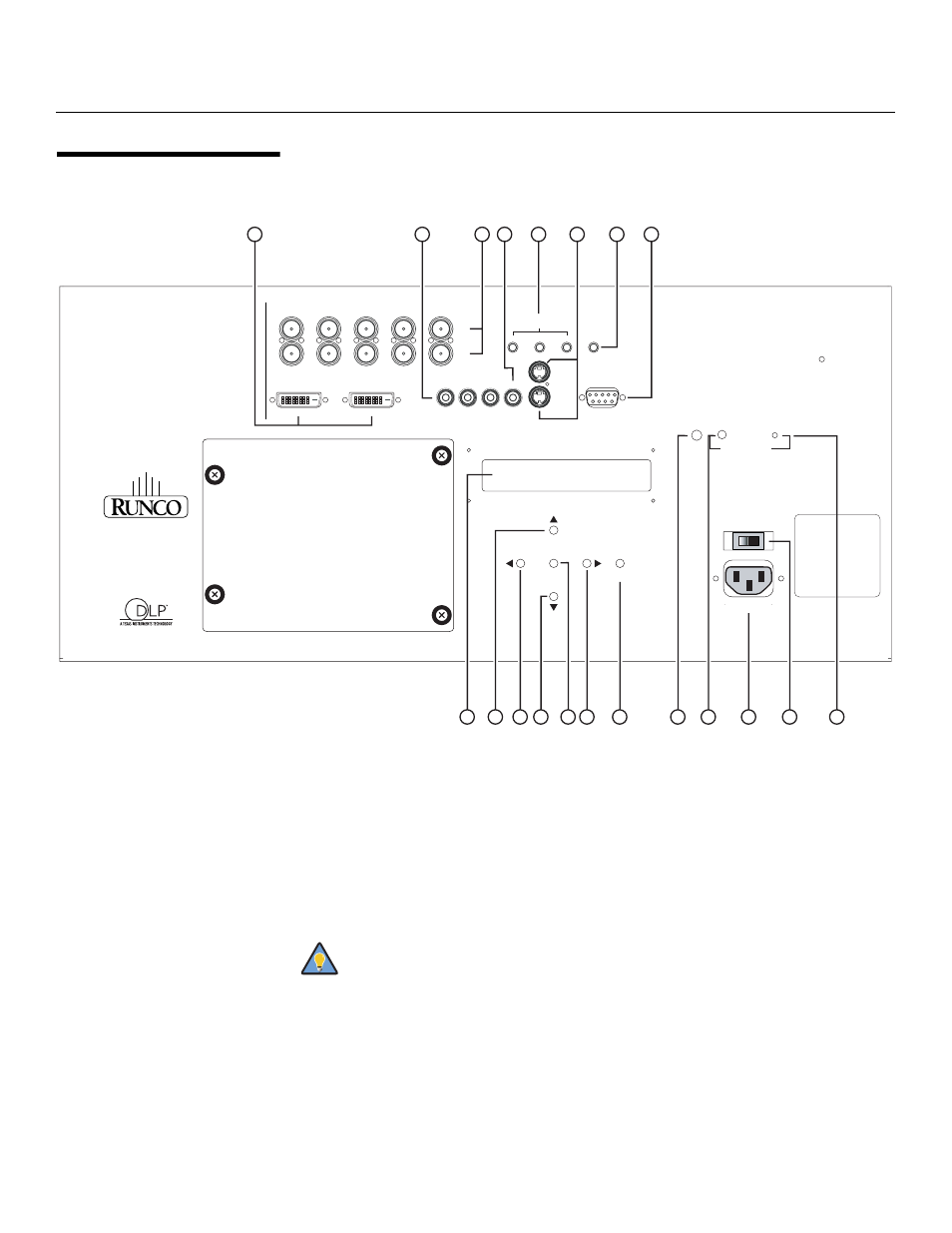

Figure 2-2. VX-2i Rear Panel
1.
DVI 1 / DVI 2 (Digital)
Two, HDCP-compliant digital video inputs for connecting a DVD player or HD tuner
with a DVI or HDMI output.
2.
COMPONENT VIDEO (RCA connectors)
Standard Definition (480i/576i) Component (YPrPb) input. This is the input for
component video from sources such as DVD players.
3.
HD1 / HD2 (Analog BNC connectors)
Five, BNC connectors for connecting either RGB or component high-definition
television signals. The VX-2i automatically detects the signal format: RGB(HV) or
YPrPb, 480p, 720p, 480i, 576i or 1080i.
4.
COMPOSITE VIDEO INPUT
Standard composite video input for connecting a VCR, laser disc player or other
composite video source.
DVI 1
DVI 1
HD1
HD2
Y
G
G
Y
H
V
INPUTS
H
V
HD1
HD2
INPUTS
R
Pr
Pr
R
B
Pb
Pb
B
DVI 2
DVI 2
COMPONENT VIDEO
Pb
Pr
Y
COMPONENT VIDEO
Y
Pr
Pb
VIDEO
VIDEO
S-VIDEO 2
S-VIDEO 2
S-VIDEO 1
S-VIDEO 1
RS-232
CONTROL
RS-232
CONTROL
IR
IR
1
2
3
1
2
3
TRIGGERS
TRIGGERS
ENTER
MENU
ENTER
MENU
AC IN 110-240V 60HZ
AC IN 11
0-240V 60HZ
ON / OFF
OFF / ON
STANDBY / POWER
POWER / STANDBY
RUNCO INTERNATIONAL
UNION CITY, CA
VX-2i DIGITAL PROJECTOR
MADE IN USA
