Installation

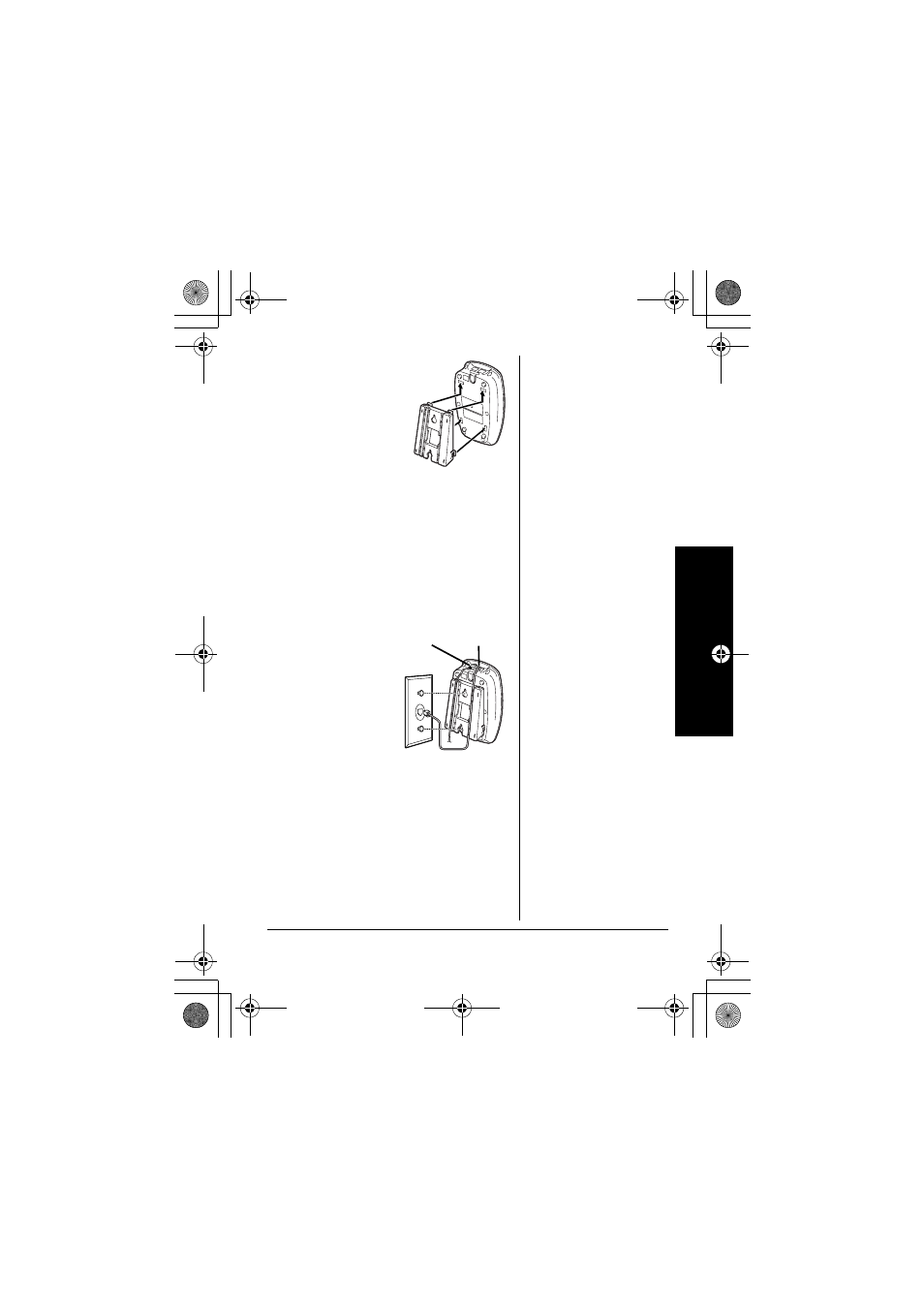

1. Insert the two

tabs at the top of
the narrow end of
the supplied
bracket into the
base’s upper tab
slots, then press
down on the
bracket’s latches and insert them
into the lower slots.

2. Plug one end of the supplied

modular cord (short for a wall
plate, long for direct wall mounting)
into the

TEL LINE

jack on the

base’s back.

3. Insert the

supplied AC
adapter’s
barrel plug into
the

DC IN 9V

jack.

4. Route the

adapter and
modular cords through the
bracket’s grooves.

5. For a wall plate, plug the modular

cord’s other end into the wall plate
jack, then align the bracket’s
keyhole slots with the wall plate
studs and slide the base
downward to secure it.

TEL LINE

DC IN 9V
