Hooking Up the VCR
VIDEO
IN
OUT
ANTENNA
AUDIO
IN
OUT
IN
OUT
Back of VCR
Back of TV
300/75 Ohm
Adapter
OR
From Antenna
or Cable
Cable/
Antenna
OR
VHF
UHF
RF Coaxial Cable
(supplied)
75 to 75/300 Ohm
Separator
Antenna or Cable System Without a Cable Box

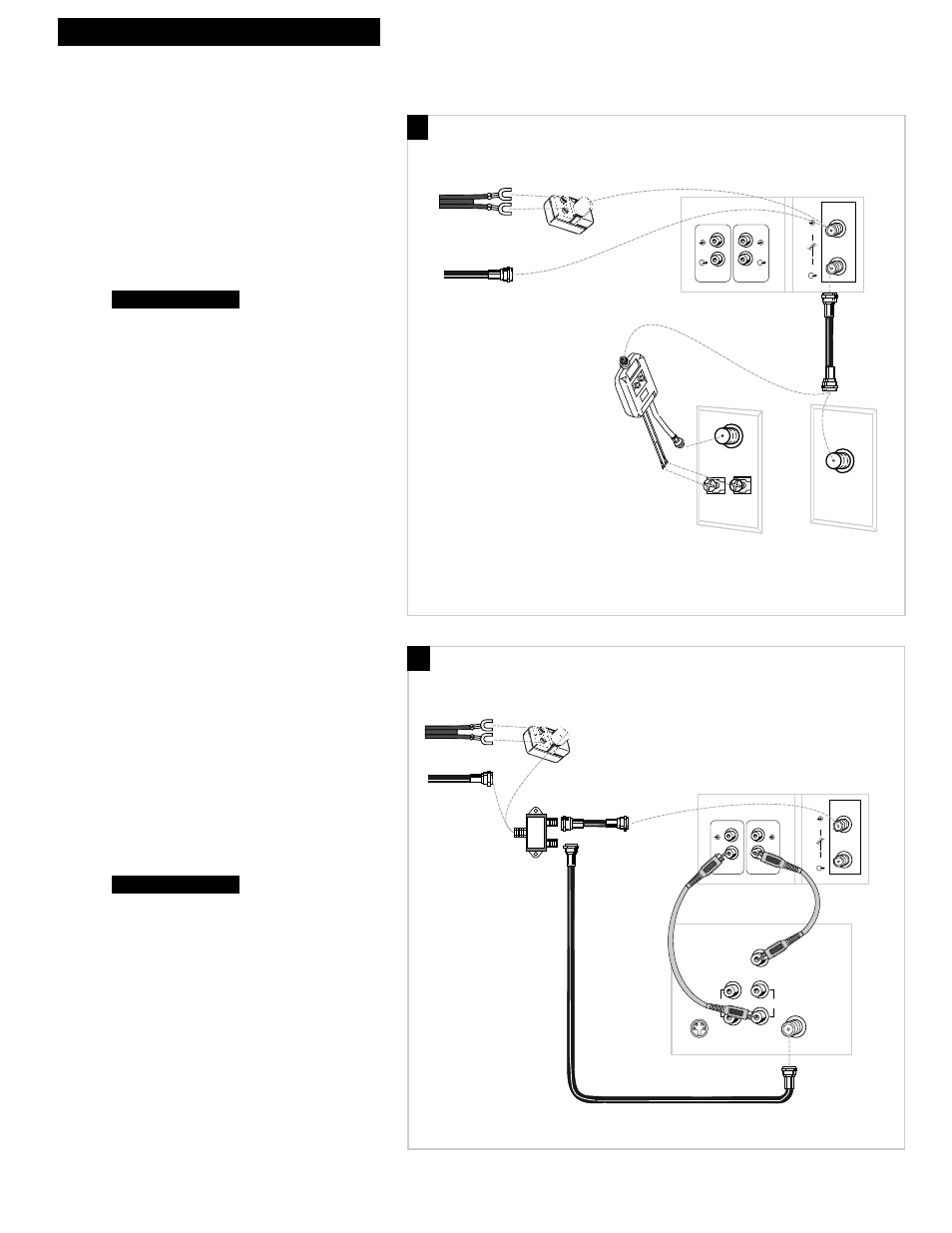

A. Basic hookup.
Use this hookup for a simple connection
which requires fewer accessories.
1. Connect as shown.
This connection may require additional
accessories not provided.
2. Plug in power cords of VCR and TV.
3.
Tune the TV to channel 3 to view the VCR.
B. Advanced hookup.
Use this hookup for slightly improved
picture quality and more convenient
operation Ñ use of TV•VCR button not
required.
1. Connect as shown.
This connection requires additional accessories
not provided.
If your TV is stereo, you may need a Y-adapter
to hear sound from both channels.
2 . Plug in power cords of VCR and TV.
3.
Tune the TV to its video input to watch the
VCR.
Continue to page 7.
Continue to page 7.
VIDEO
IN
OUT
ANTENNA
AUDIO
IN
OUT
IN
OUT
S-VIDEO
AUDIO
CABLE /
ANTENNA L /
MONO
RIGHT
VIDEO
INPUT
IN OUT
Back of TV
Audio/Video Cables
Back of VCR
From Antenna
or Cable
OR
300/75 Ohm
Adapter
RF Coaxial Cable
(supplied)
Signal
Splitter
A
B
