9

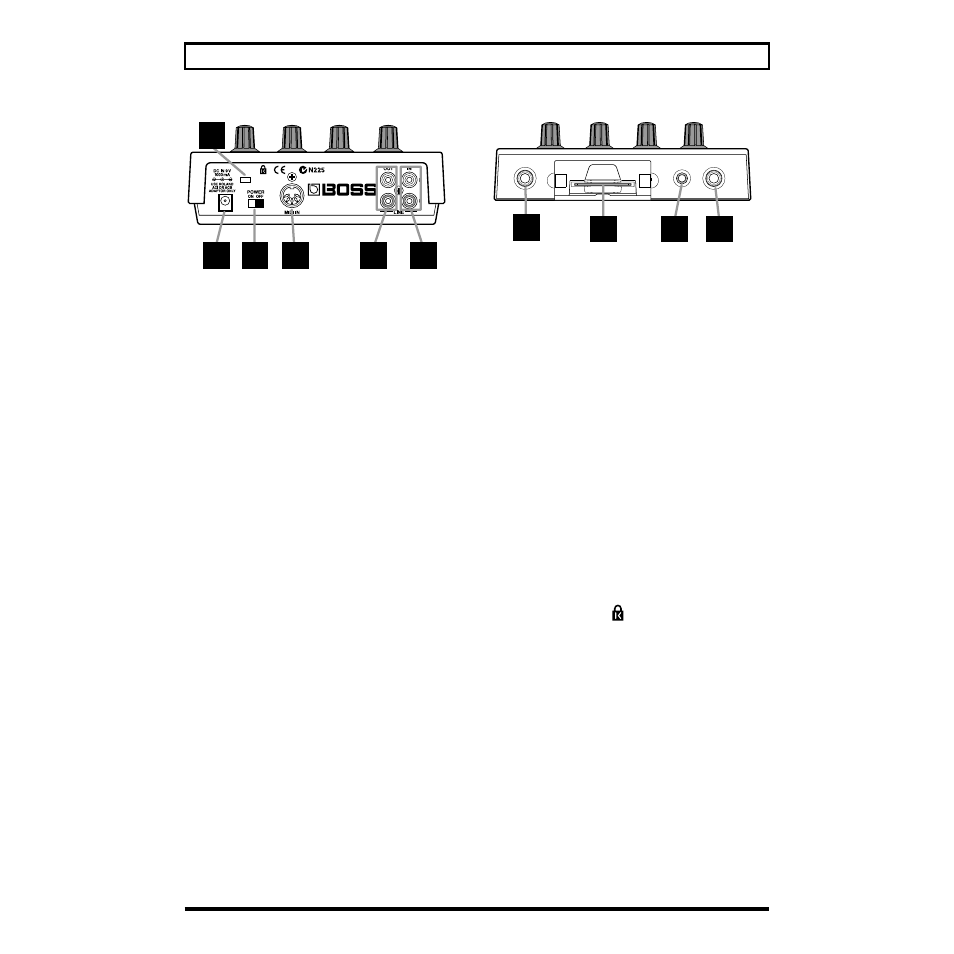

Panel Descriptions
fig.P02
27 AC Adaptor Jack
Connect the AC adapter to this connector.
* Be sure to use only the specified AC adaptor. Doing so may
damage the unit.
28 Power Switch
Turns the power on/off.
29 MIDI IN Connector
You can connect an external MIDI device (such as a
sequencer, keyboard, or rhythm machine), and use the
device to control the SP-303. Use MIDI cable (sold
separately) to make connections.
30 LINE OUT Jacks (L/R)
These audio outputs are RCA phono type jacks for
connection to an amp or mixer through which you wish
to play the sampled sounds.
31 LINE IN Jacks (L/R)
RCA phono type audio input jacks for connecting a CD
player or other source device used for taking samples.
fig.P03
32 PHONES (Headphones) Jack
A set of headphones can be connected here to hear the
same sound as the line outputs. The jack accepts stereo
1/4 inch phone plug.
33 MEMORY CARD Slot
A memory card (SmartMedia: optional) can be inserted
here. It is also possible to use card banks C/D to record
long samples that the internal memory could not
accommodate.
A card can be used to store (backup) the data from
internal memory.
34 MIC LEVEL Knob
Adjusts the volume of the mic sound.
35 MIC Jack
Connect a microphone.
36 Security Slot ( )
Web:www.kensington.com
36
27 28 29 30 31
32 33 34 35
