Control Panel
19
1
Control Panel

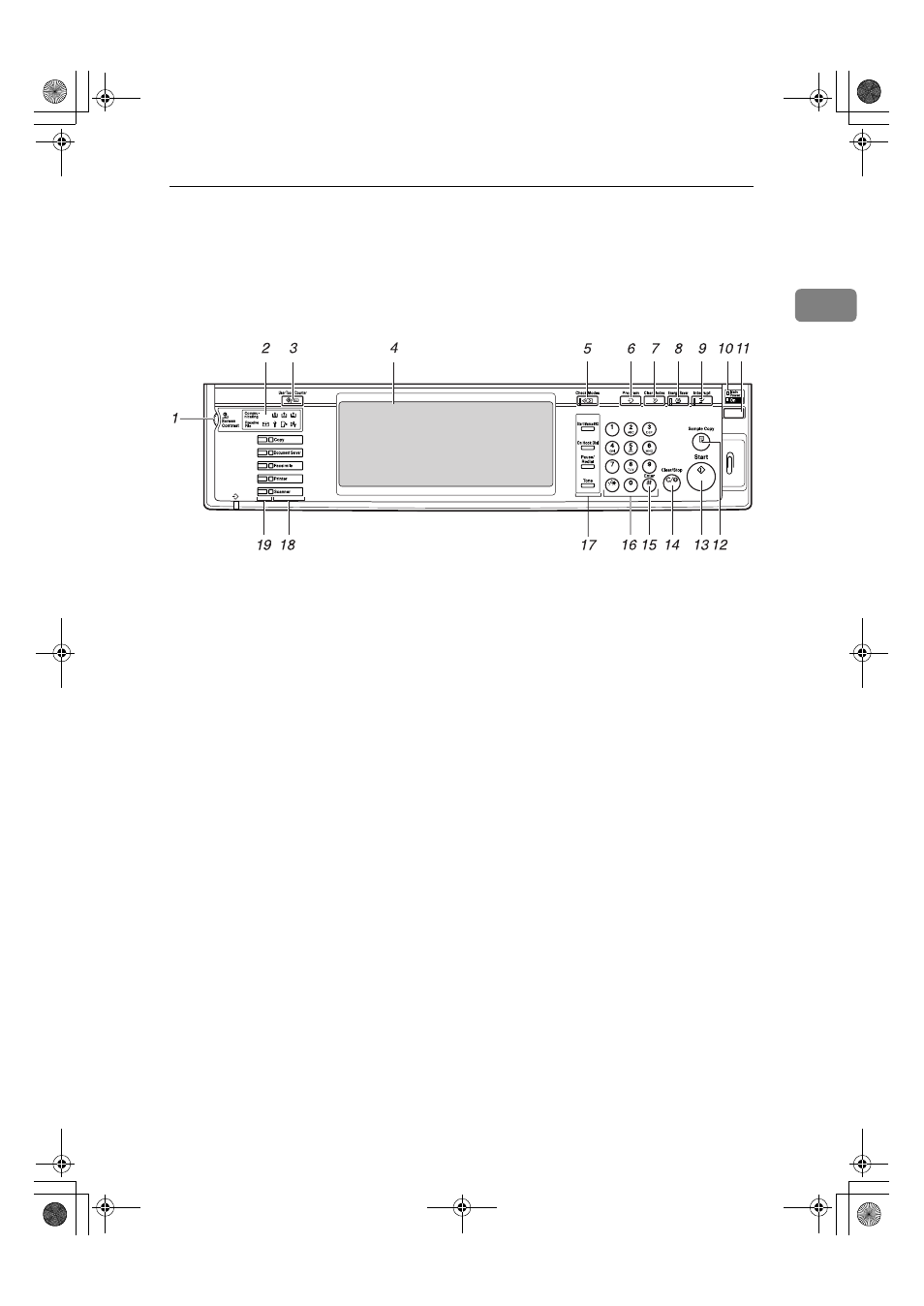

This illustration shows the control panel of a machine that has all options fully
installed.
1. Screen contrast knob
Adjusts display panel brightness.
2. Indicators
Show errors and machine status.
•
d: Add Staple indicator. See p.123
“
d Adding Staples”.
•
D: Add Toner indicator. See p.111
“
D Adding Toner”.
• B: Load Paper indicator. See p.108
“
B Loading Paper”.
• L: Service Call indicator
• M: Open Cover indicator
•
x: Misfeed indicator. See p.114 “x
Clearing Misfeeds”.
• m: Data In indicator. See “Control
Panel”, Printer Reference 1.
• Communicating: Communicating in-
dicator. See “Control Panel”, Facsimile
Reference .
• i: Confidential File indicator. See
“Control Panel”, Facsimile Reference
.
• Receiving File: Receiving File indica-
tor. See “Control Panel”, Facsimile Ref-
erence .
3. {{{{User Tools/Counter}}}} key
• User Tools
Press to change defaults and condi-
tions to meet your requirements. See
p.48 “Accessing User Tools (System
Settings)”.
• Counter
Press to check or print the counter val-
ue. See p.139 “Counter”.
• Inquiry
Press to check where to contact for
machine repairs and ordering toner.
See p.138 “Inquiry”
4. Display panel
Displays operation status, error messag-
es, and function menus.
5. {{{{Check Modes}}}} key
Press to check settings.
6. {{{{Program}}}} key (copier/facsimi-
le/scanner mode)
Press to register frequently used settings,
or recall registered settings.
7. {{{{Clear Modes}}}} key
Press to clear previous copy job settings.
