Colour Printing Using the Optional Colour Drum
53
2
C

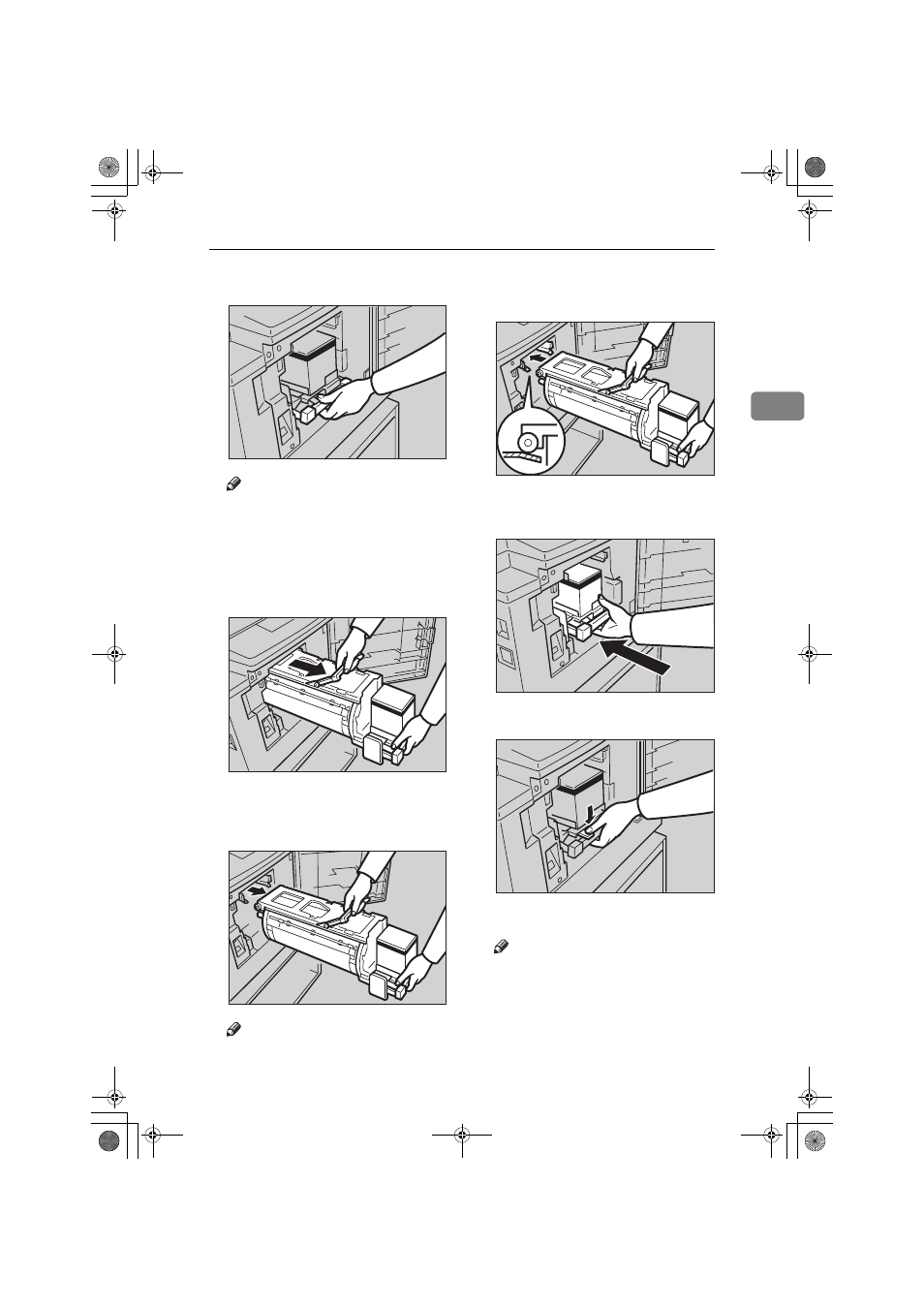

Pull out the drum unit handle.
Note
❒ If you cannot pull out the drum
unit, push the drum unit han-
dle, then pull out the drum unit.
D
Hold the rail on the drum and
slide out the drum while pulling
the release towards you.
E
Remove the drum unit from the
machine while holding the upper
drum stay.
Note
❒ Be careful not to let the drum
unit fall.
F
Insert the colour drum unit along
the guide rail.
G
Slide in the drum unit until it
locks in position.
H
Lower the drum unit lock lever.
I
Close the front door.
Note
❒ Make sure that the Cover Open
indicator ( M) turns off, and the
COLOUR is shown in the guid-
ance display.
