x Clearing Misfeeds
91
5
D

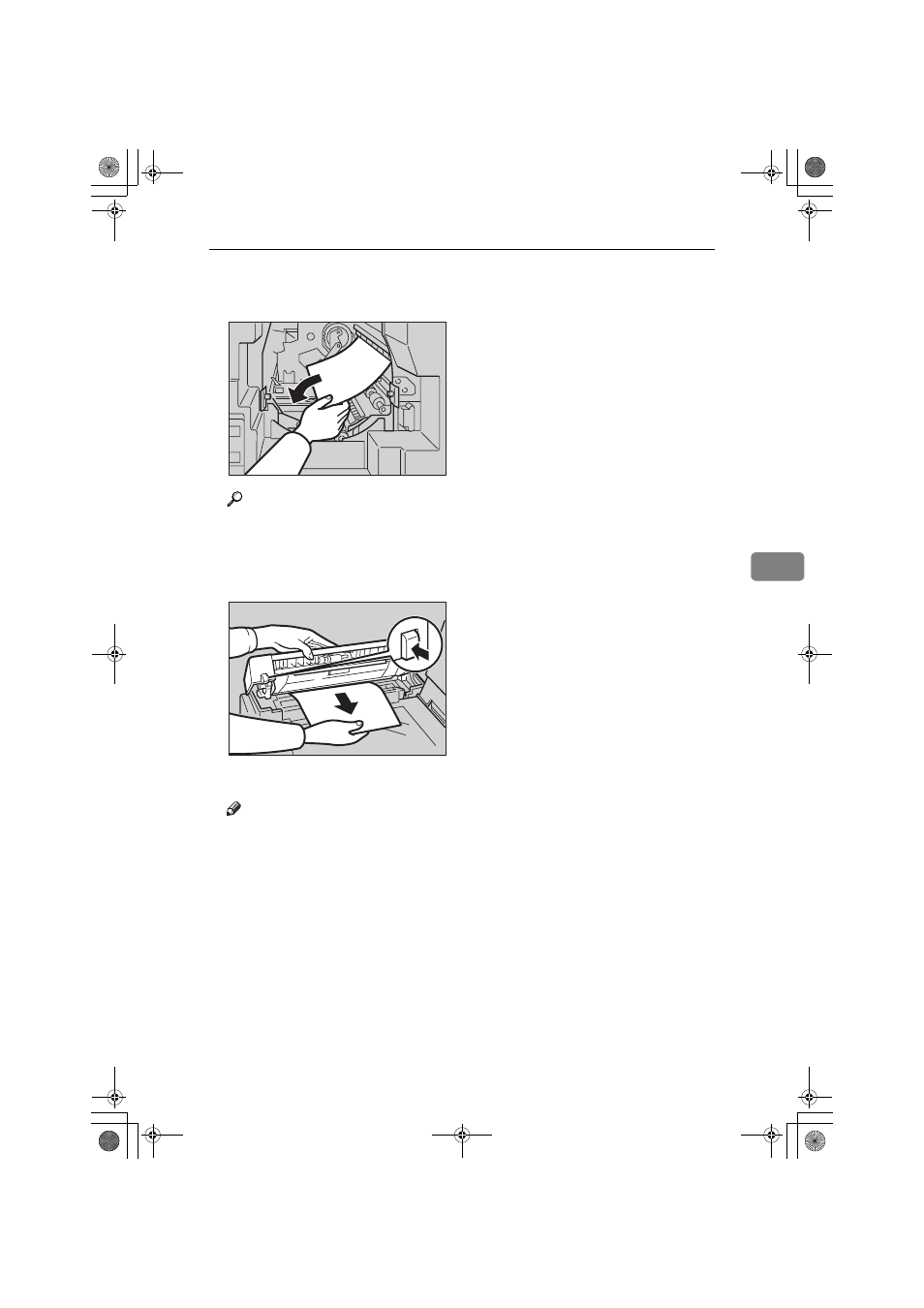

If you could not remove the misfed master in steps
BBBB and CCCC, take out the
drum and remove the misfed master from the inside.
Reference
For how to take out the drum unit, see
⇒
P.52 “Changing the colour Drum
Unit”.
E
If the original misfeeds in the optional document feeder, press the ADF
open lever and open the ADF unit to remove the misfed sheet.
F
Return the original tray to its original position.
Note
❒ If you follow step D, set the drum unit and close the front door.
❒ If you follow step E, close the ADF unit.
TSLH01BE
TSLY014E
