RadioLAN Campus BridgeLINK - Manual (Page 66)

890-007 Rev. A 01/28/99 Page 56 © 1999 RadioLAN, Inc.
Setting the Baud Rate for the Local Port
The CPU allows you to connect and manage with a
local terminal. To get to this page, select
Port
Parameters from the System Configuration menu, then
select Console Port. The C
ONSOLE P ARAMETERS
P AGE allows you to set the baud rate for the terminal.
Select from the following available baud rates:
•
9600 baud
•
19200 baud
•
38400 baud
•
57600 baud
After making your selection, click the
OK button to
keep your selection.
Set the VT100 terminal software for the following:
•
Baud Rate (selected here)
•
8 bit word
•
1 stop bit
•
No flow control

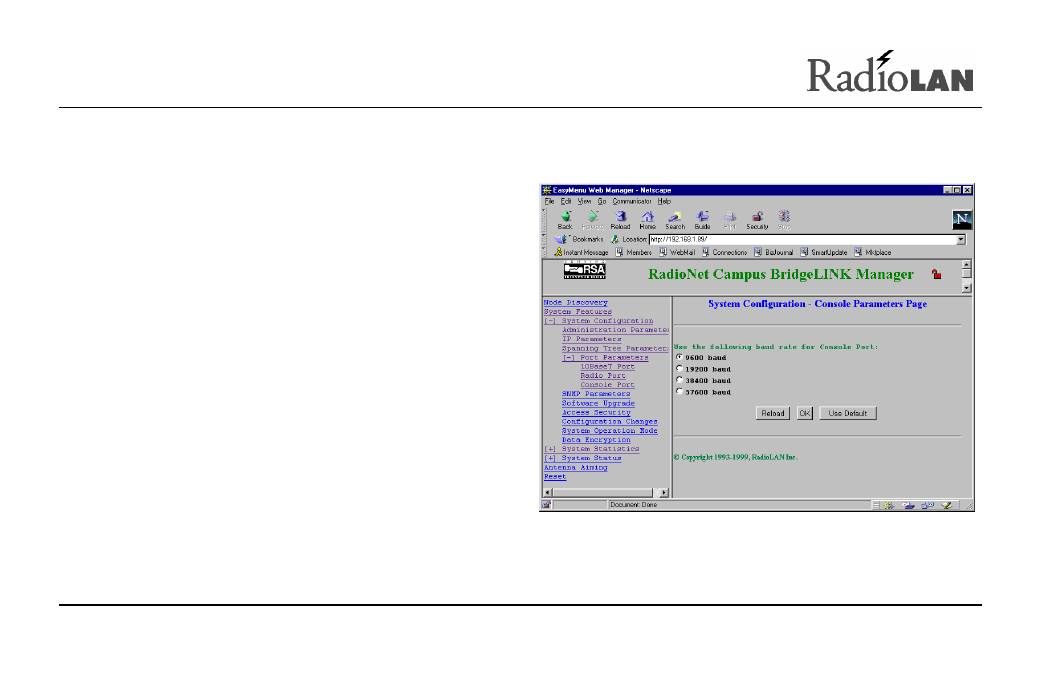

Figure 35: Console Parameters Page
