Sighting Each Campus BridgeLINK™ Antenna
Once you have installed and grounded the mounting bracket assembly (provided by others), you can point the
directional antenna toward the location of the distant antenna.
Tools You Will Need
To site the antenna properly, you will need to
have a crescent wrench, a carpenter’s square, a
ladder, and a helper.
Adjusting the Antenna’s Direction
To adjust the antenna’s direction, you will:
1. Loosen the U-bolts to turn the antenna into
the correct side-to-side direction (azimuth).
2. Loosen the nut on the tilt mount to adjust
the antenna to the proper elevation.
3. Tighten all nuts and bolts to safeguard the
antenna against direction changes during
high winds.
Fixed Base
Tilt Mount
Carpenter’s
Square
Loosen nut and
then tilt to adjust
the elevation
Turn to adjust
the azimuth
Antenna

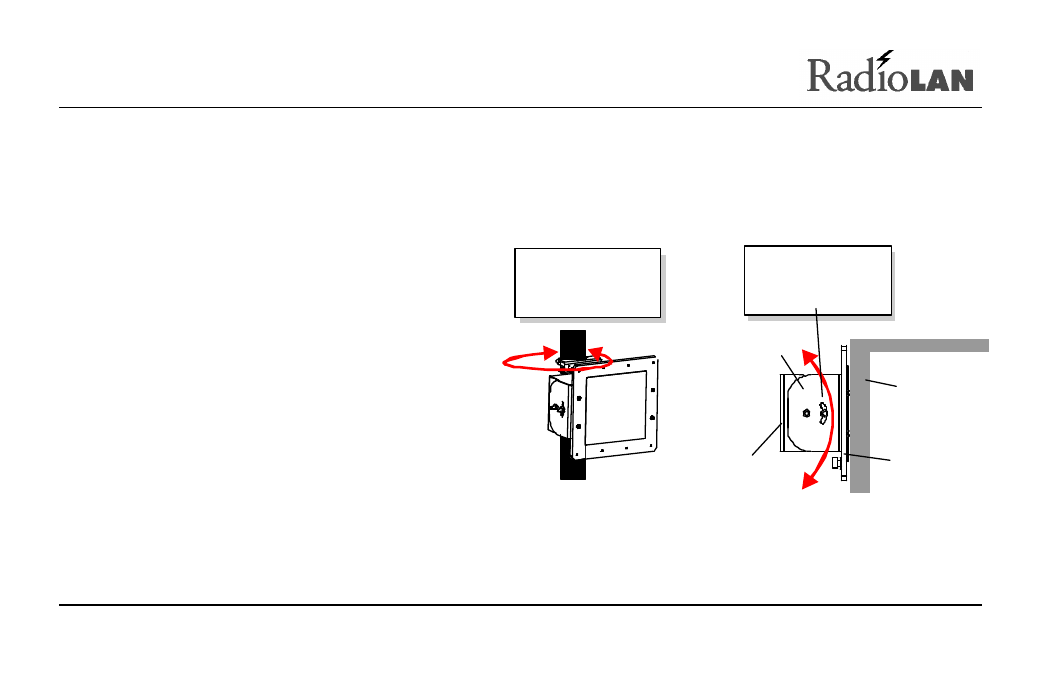

Figure 19: Aligning the Antenna
