AIR TEMPERATURE SENSOR
•
INSTALLATION

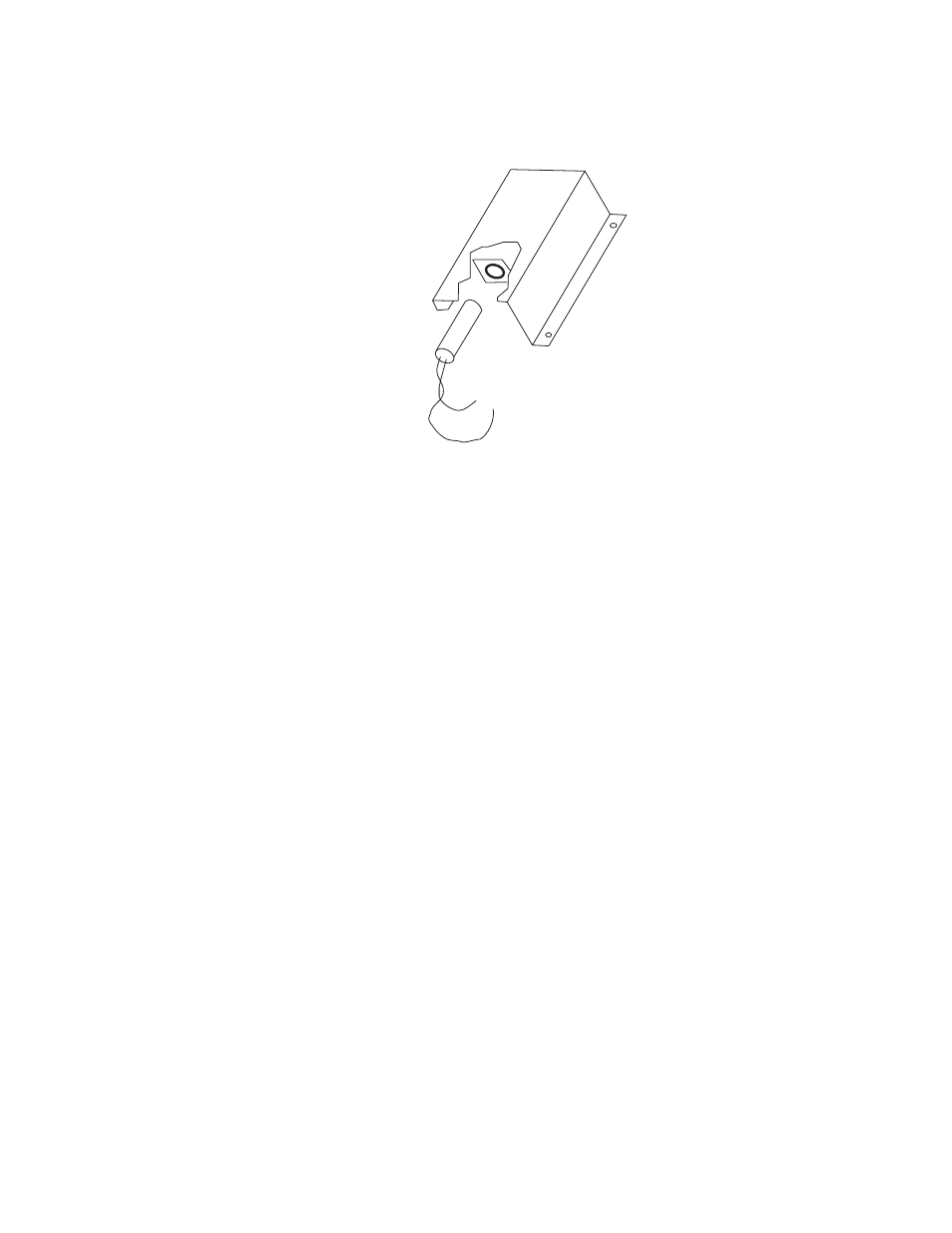

Fig. #9040
TYPICAL AIR TEMPERATURE SENSOR
Air Temperature Sensor Installation Notes:
•
Locate on coldest side of building, usually (North or West) side.
•
Install the sensor in a shaded area, out of direct sunlight.
•
Locate no higher than 2/3 way up side of building or between 2nd and 3rd floor if building
is more than 3 stories tall.
•
Shielded cable length not to exceed 4000 feet.
•
Do not locate under an overhang, near wall corners, near drafts from stacks, air
moving devices, windows, doors, or balconies.
•
Assure cable length does not exceed 4000 ft. Use larger gauge (Belden #9842)
cable if run is in excess of 100 ft.
•
Install in conduit with no other wiring.
•
Observe proper wire colors. Sensor is polarity sensitive.
