NOTE: Nite setback feature must be set at the B6000 BMS Control Panel to "ON". This results
in display change that shows NITE rather than DAY. The BMS can change "SETBACK TIMES"
up to six selections for each of the seven days.

WARNING

When the initialize control selection is set to "Y" and "SELECT" button is pushed, the B6000
BMS resets all of the SELECTABLE PARAMETERS on this screen to DEFAULT values.
Nite Setback (NSB), Lead Lag is set to "OFF" (If option installed).

POWER-UP

Boiler Monitor

a. Energize by pushing Power Switch to "ON" position. The following indicator lights will
be

lit: - Power On

The following indicator lights will be lit if the boiler is performing the valve calibration cycle.

- Call for Heat
- Pump
- Pilot

b. Boiler will start provided there are no "faults" after the System Control module has

been energized.

Version # of Software

Flashing (N,Y)

System Control Module

a. Energize the system control module.

- The screen should show the System Temperature (Display #1)

b. Press the "MENU" button until the screen shows the Initialize screen .
c. Press "+" or "–" button to change the cursor to "Y".
d. Press "Select" button.

- This will initialize the control memory to the default values.

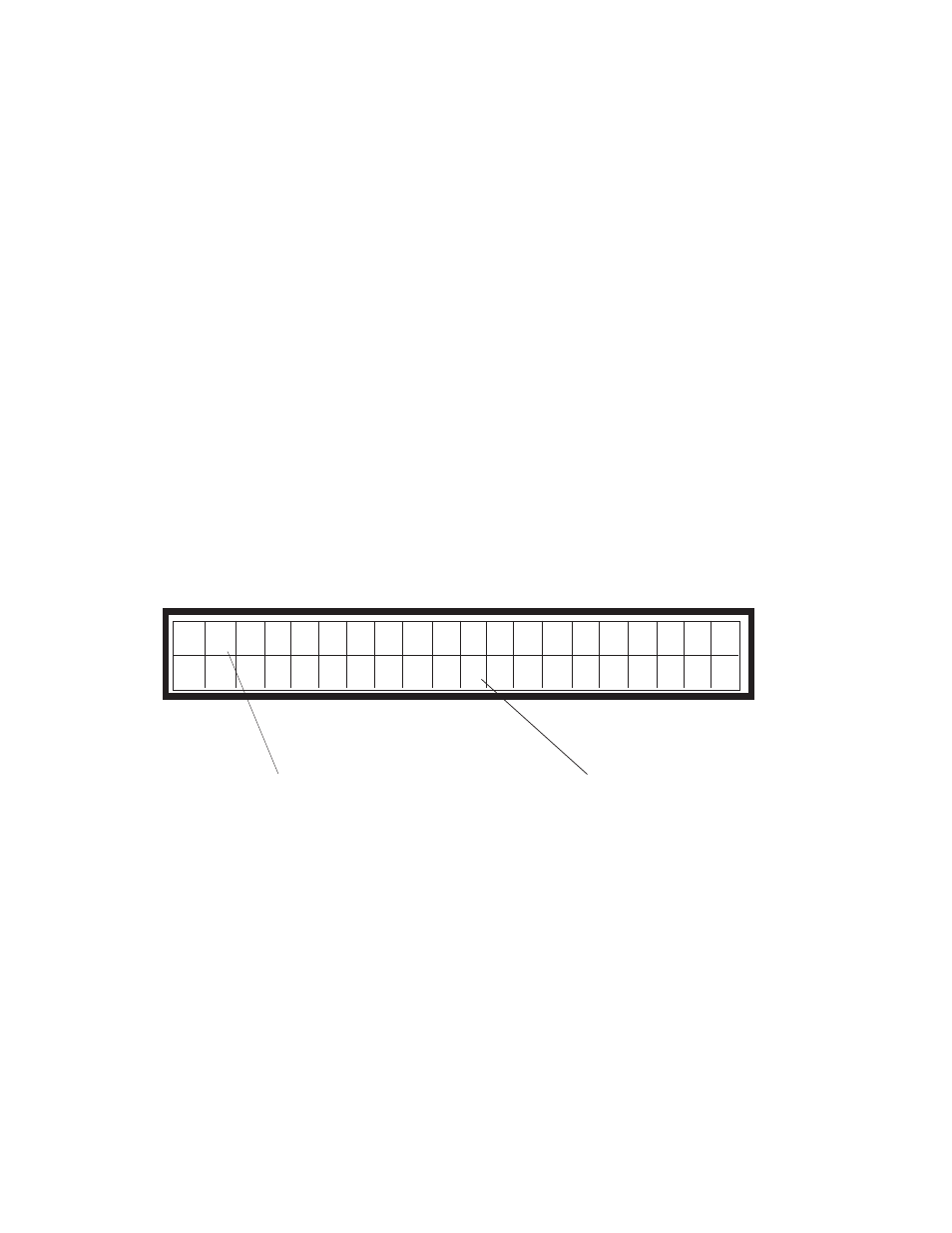

V X . X X X X

I n i t i a l i z e ?
