WIRING: WIRING: WIRING: WIRING: WIRING: P P P P Po oo oow w w w wer Sour er Sour er Sour er Sour er Source to System Contr ce to System Contr ce to System Contr ce to System Contr ce to System Control and Boiler Mod- ol and Boiler Mod- ol and Boiler Mod- ol and Boiler Mod- ol and Boiler Mod-
ules. ules. ules. ules. ules.
Page 14
• Observe proper Polarity.
• Observe proper wire colors.
• Provide external surge suppressor capable of maintaining system integrity.
• Provide overload protection and disconnect means as required by code and for
equipment serviceability.
• Conduit can not be used as the ground. (Must be "WIRED" ground).
• Very Important: Grounding electrode conductor - shall be used to connect the
equipment grounding conductors, the equipment enclosures, and where the system
is grounded, the grounded service conductor to the grounding electrode.

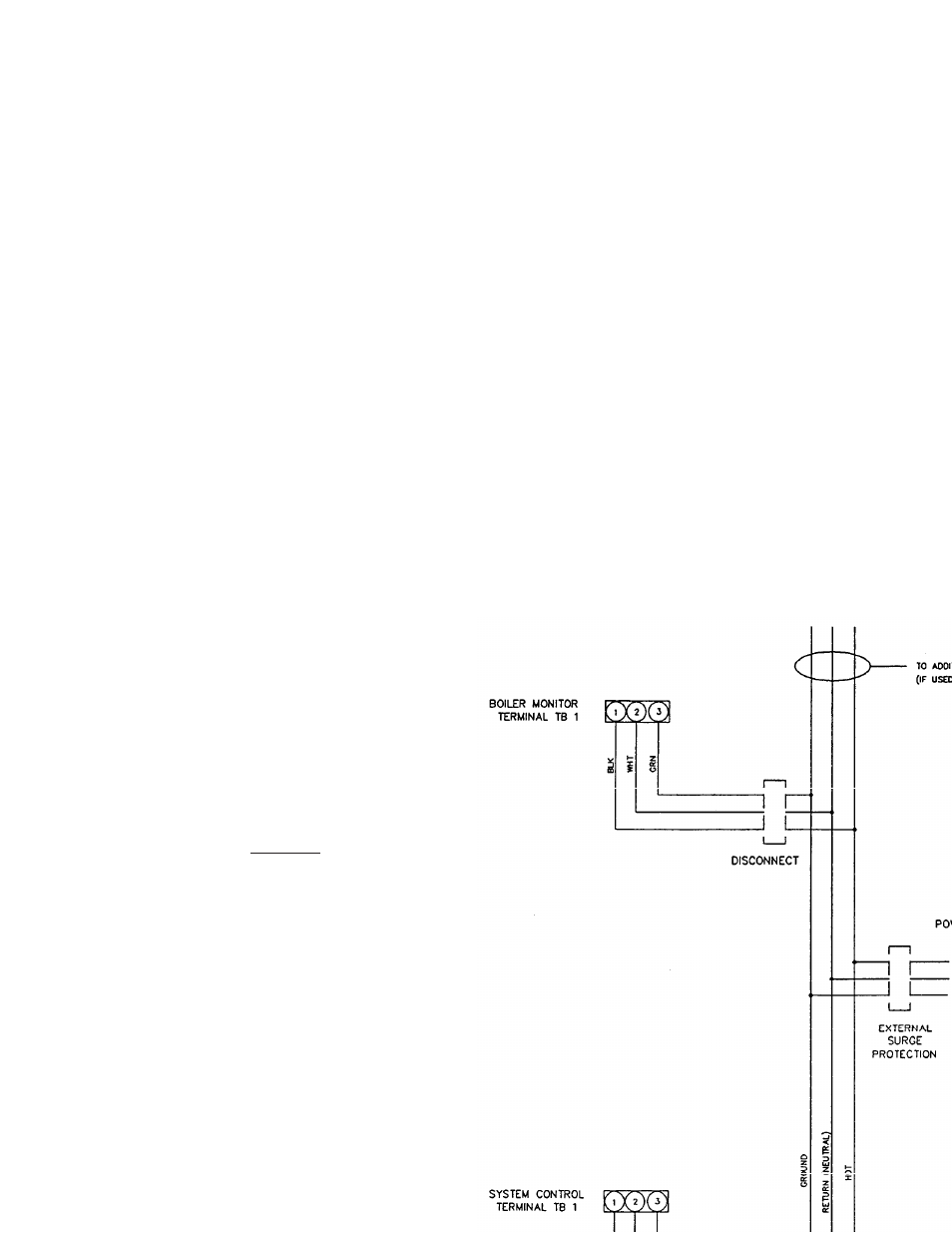

Dia. #9
NOTE: Tighten terminal strip
clamping screws 20 lbs - In
(2.26N.m) Breakage from over
torquing is not covered under
warranty.
Use copper conductors only.
For supply connections use
wires sized on the basis of 60°C
Ampacity and rated Min. 90°C
(194°F).
