Troubleshooting

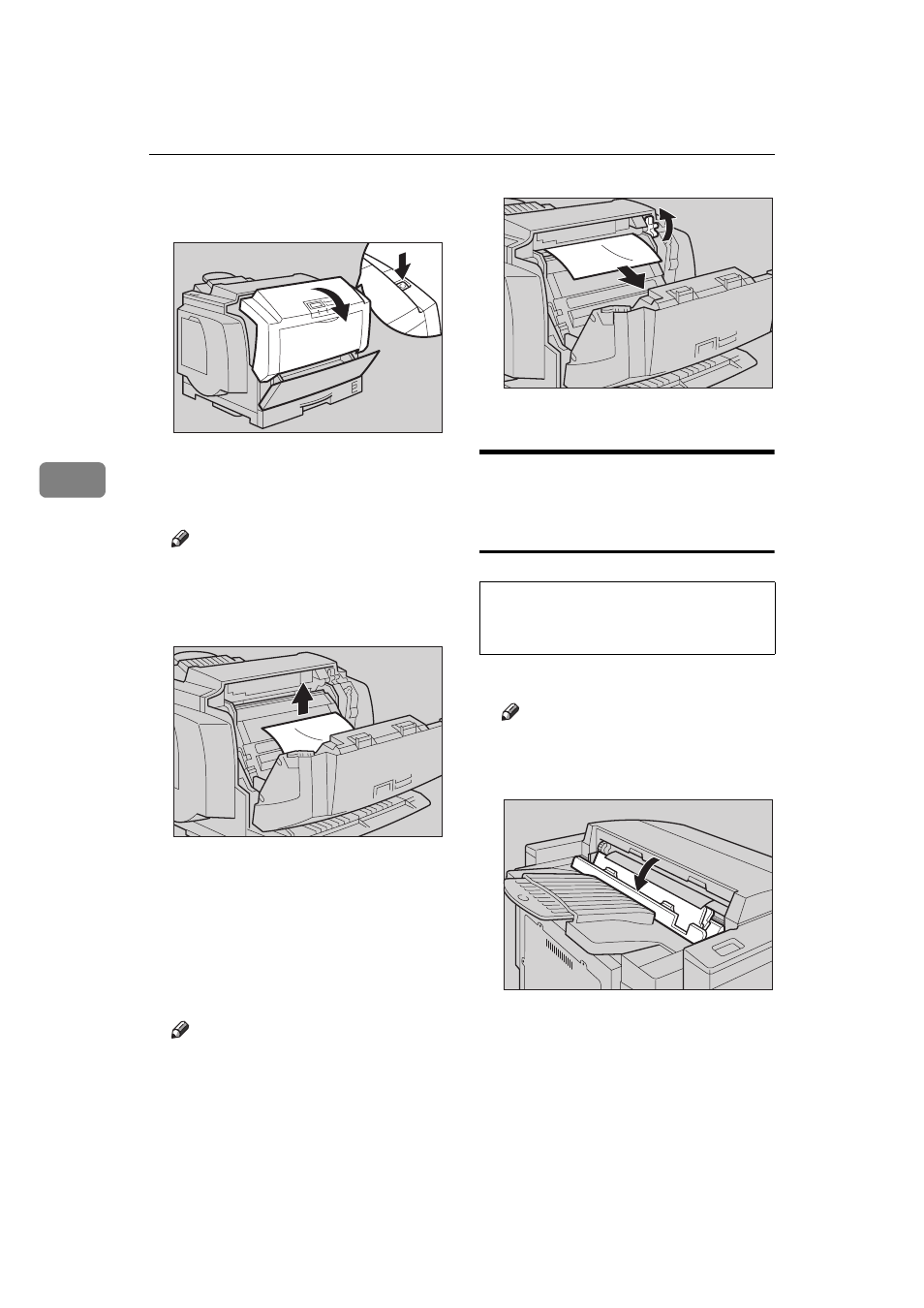

Open the front cover by pushing
the front cover release button.

If the paper is in the front side of
the photoconductor unit, careful-
ly pull it out.

Note

❒ When removing misfed paper,

be careful not to touch the fus-
ing section because it could be
very hot.

When the misfed paper is in the
main section of the photoconduc-
tor unit, turn the dial downward
then remove the misfed paper in
the printer.
Make sure that you do not leave
any misfed paper in the printer.

Note

❒ If it is difficult to turn the dial,

turn it slightly upward in the
opposite direction, and then try
again.

Close the front cover.

When the Message "REMOVE
MISFEED FROM OUTPUT
TRAY" Appears

CAUTION:

Open the paper exit cover.

Note

❒ When opening the paper exit

cover, be careful as it may be
hot.

TFWX080E

TFWX210E

•

When removing misfed paper,
do not touch the fusing section
because it could be very hot.

TFWX220E

TFWX230E
