Guide to the Printer
3
1

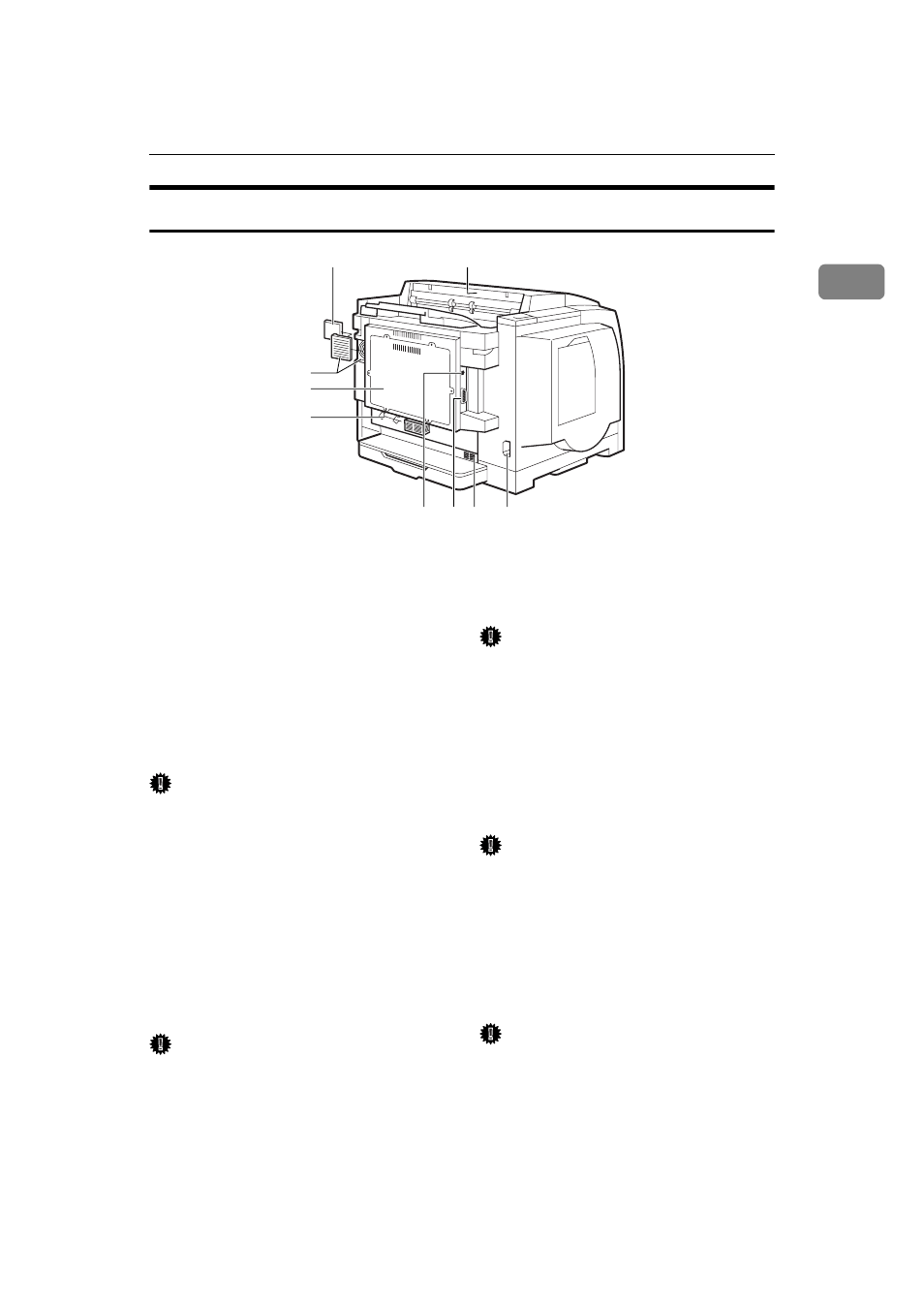

Exterior-Rear View
1. Paper Exit Cover
Open this cover when removing misfed
paper at the fusing unit.
2. Ozone Filter
This filter reduces the amount of ozone
that is discharged into the air.
3. Ventilator
This hole allow air to circulate, prevent-
ing components inside the printer from
overheating.
Important
❒ Do not leave the ventilator ob-
structed or blocked. Doing so cre-
ates the danger of malfunction due
to overheating.
4. Back Plate
Remove to install some options.
5. Parallel Interface Connector
Plug the interface cable that connects the
printer to your computer into this con-
nector.
Important
❒ Rating voltage of the parallel inter-
face connector for the computer;
Max. DC 5V.
6. Network Interface Connector for
10BASE-T/100BASE-TX
Plug the network interface cable for
10BASE-T/100BASE-TX that connects
the printer to the network into this con-
nector.
Important
❒ Rating voltage of the network in-
terface connector for 10BASE-T/
100BASE-TX; Max. DC5V.
7. Network Interface Connector for
10BASE5
Plug the network interface cable for
10BASE5 that connects the printer to the
network into this connector.
Important
❒ Rating voltage of the network in-
terface connector for 10BASE5;
Max. DC12V.
8. Ventilator
This hole allow air to circulate, prevent-
ing components inside the printer from
overheating.
Important
❒ Do not leave the ventilator ob-
structed or blocked. Doing so cre-
ates the danger of malfunction due
to overheating.
9. Power Connector
Connect the power cord to this connec-
tor.
TFWX040E
1 2
3
4
5
6 8 7 9
