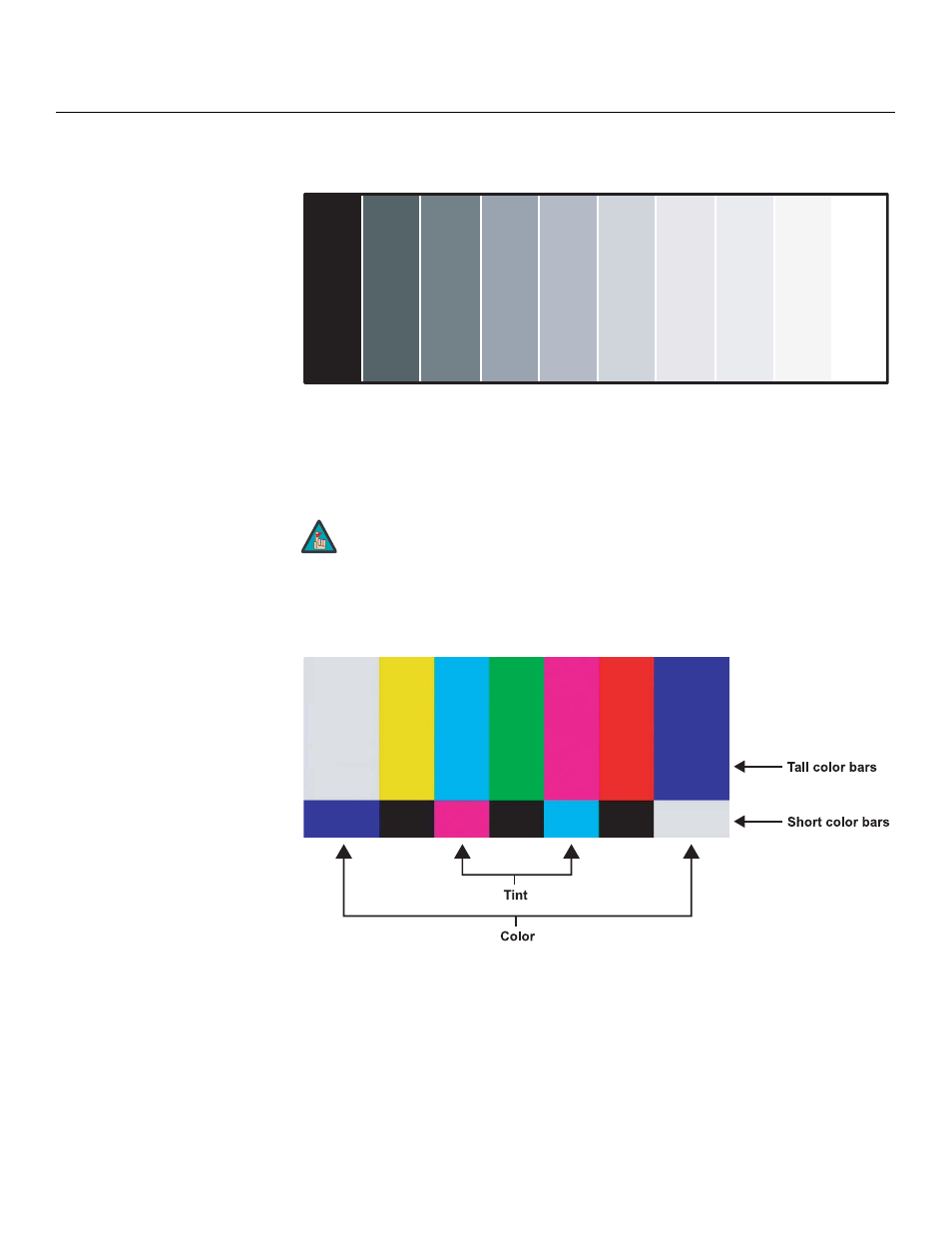

Contrast: On your external test pattern source, select a stepped, gray-bar pattern like the
one shown in Figure 4-3.

Figure 4-3. Typical Gray Bar Pattern for Adjusting Contrast

Select Contrast from the Adjustment menu and press ENTER. Adjust the contrast to a
point just below which the white rectangle starts to increase in size.

Color Saturation: On your external test pattern source, select a color bar pattern like the
one shown in Figure 4-4.

Figure 4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint

Brightness and contrast controls are interactive. A change to one
may require a subtle change to the other in order to achieve the
optimum setting.

Note

gray

yellow

cyan

een

magenta

blue
